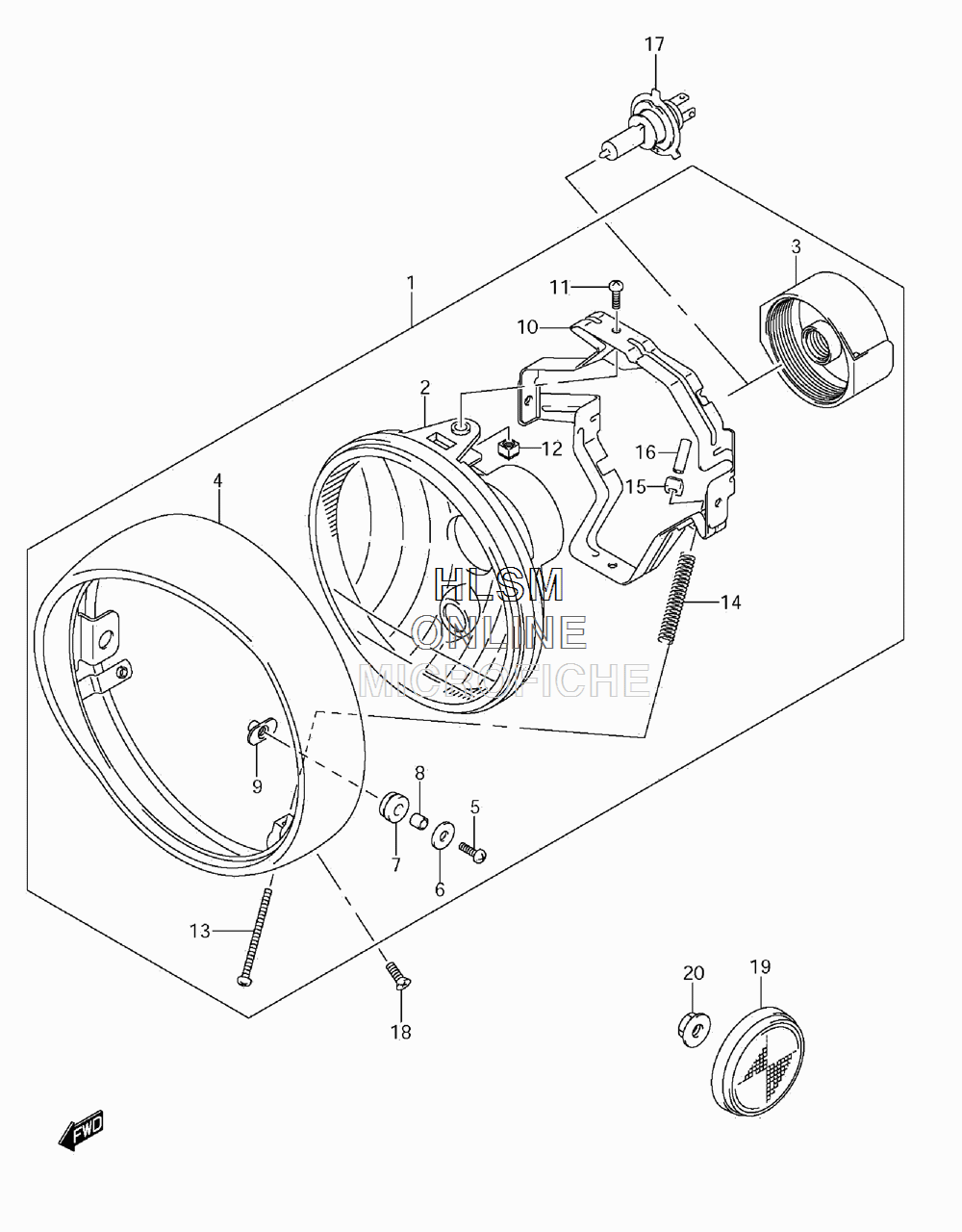

HEADLIGHT для Suzuki VZ800 L2 - 2012 года выпуска
-
№АртикулНазвание
-
135100-10FH0-999 HEADLAMP ASSY (INCL. 2-16)HEADLAMP ASSY (INCL. 2-16)
-
235121-10FB0 UNITUNIT
-
335174-19F00 COVER, SOCKETCOVER, SOCKET
-
435111-10FG0 RIMRIM
-
502122-0520A SCREWSCREW
-
609160-05045 WASHER (5.5X18X1)WASHER (5.5X18X1)
-
735139-38A60 CUSHIONCUSHION
-
835133-45230 SPACERSPACER
-
935155-10FA0 NUTNUT
-
1035130-10FD0 BRACKETBRACKET
-
1135181-19F00 SCREW (5X16)SCREW (5X16)
-
1235135-45900 NUTNUT
-
1335151-10FA0 SCREW, ADJUSTERSCREW, ADJUSTER
-
1435154-10FA0 SPRING, ADJUSTERSPRING, ADJUSTER
-
1535152-45600 NUTNUT
-
1635158-10FA0 COVERCOVER
-
1709471-12185 BULB (12V60/55W)BULB (12V60/55W)
-
1809126-05007 SCREW (5X8)SCREW (5X8)
-
1935950-14A11 REFLEX-REFLECTOR ASSY, FRONT SIDEREFLEX-REFLECTOR ASSY, FRONT SIDE
-
2008316-1005B NUTNUT
