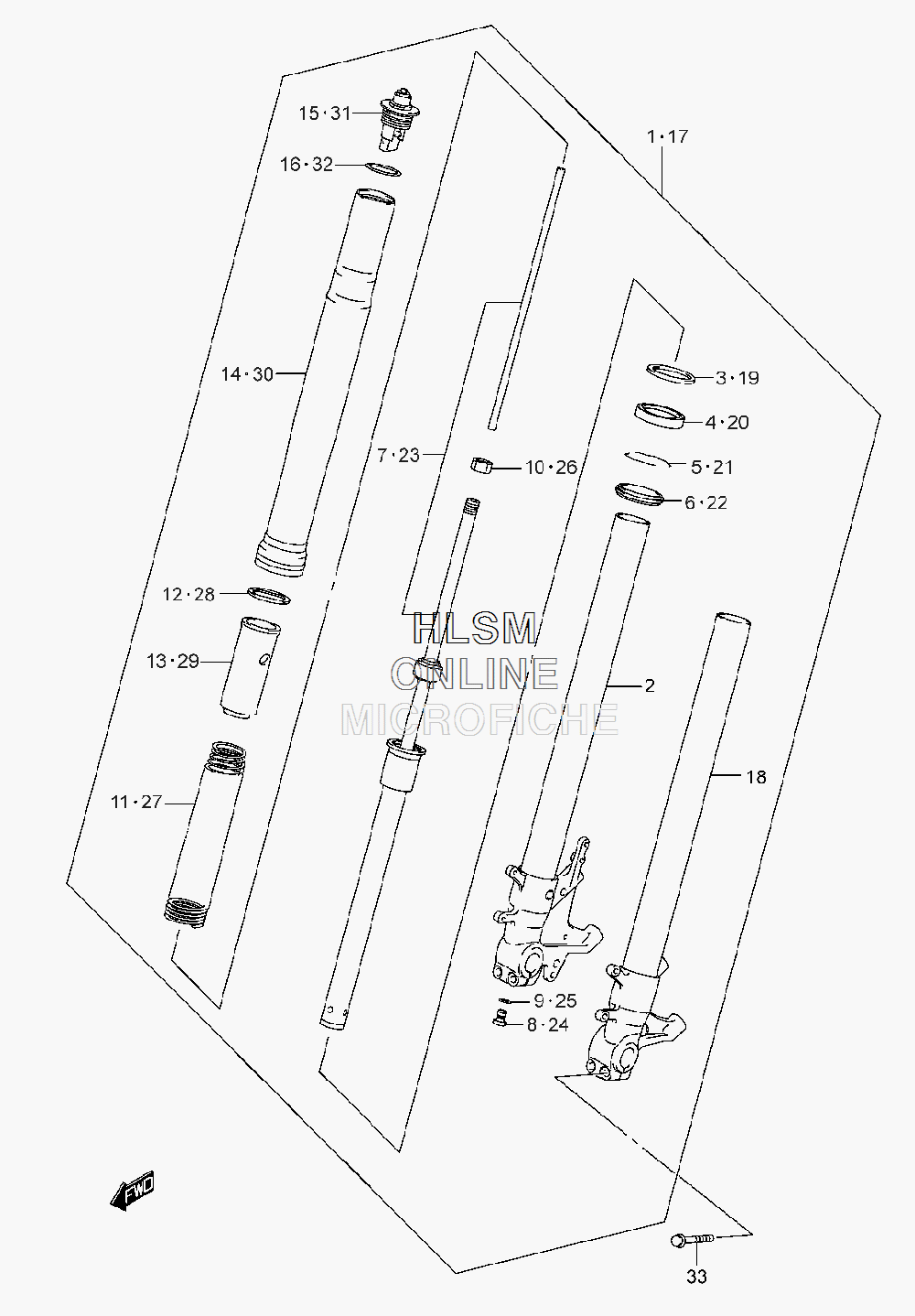

SUSPENSION - FRONT FORK (CANADA ONLY) для Suzuki GSX-R1300 L3 - 2013 года выпуска
-
№АртикулНазвание
-
151103-24F70 DAMPER ASSY, FRONT FORK RIGHTDAMPER ASSY, FRONT FORK RIGHT
-
251110-24F70 ...TUBE, INNER RIGHT...TUBE, INNER RIGHT
-
351158-14200 ...WASHER...WASHER
-
451153-41G00 ...OIL SEAL...OIL SEAL
-
551156-14200 ...RING, STOPPER...RING, STOPPER
-
651173-41G00 ...SEAL, DUST...SEAL, DUST
-
751146-24F50 ...CYLINDER...CYLINDER
-
851147-24F50 ...BOLT...BOLT
-
951148-41310 ...GASKET...GASKET
-
1051352-13A60 ...NUT...NUT
-
1151171-24F50 ...SPRING, FRONT...SPRING, FRONT
-
1251158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
1351176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
1451130-24F50 ...TUBE, OUTER...TUBE, OUTER
-
1551351-24F50 ...CAP, FRONT FORK...CAP, FRONT FORK
-
1662278-14100 ...O RING...O RING
-
1751104-24F70 DAMPER ASSY, FRONT FORK LEFTDAMPER ASSY, FRONT FORK LEFT
-
1851120-24F70 ...TUBE, INNER LEFT...TUBE, INNER LEFT
-
1951158-14200 ...WASHER...WASHER
-
2051153-41G00 ...OIL SEAL...OIL SEAL
-
2151156-14200 ...RING, STOPPER...RING, STOPPER
-
2251173-41G00 ...SEAL, DUST...SEAL, DUST
-
2351146-24F50 ...CYLINDER...CYLINDER
-
2451147-24F50 ...BOLT...BOLT
-
2551148-41310 ...GASKET...GASKET
-
2651352-13A60 ...NUT...NUT
-
2751171-24F50 ...SPRING, FRONT...SPRING, FRONT
-
2851158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
2951176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
3051130-24F50 ...TUBE, OUTER...TUBE, OUTER
-
3151351-24F50 ...CAP, FRONT FORK...CAP, FRONT FORK
-
3262278-14100 ...O RING...O RING
-
3351166-24F60 BOLTBOLT
