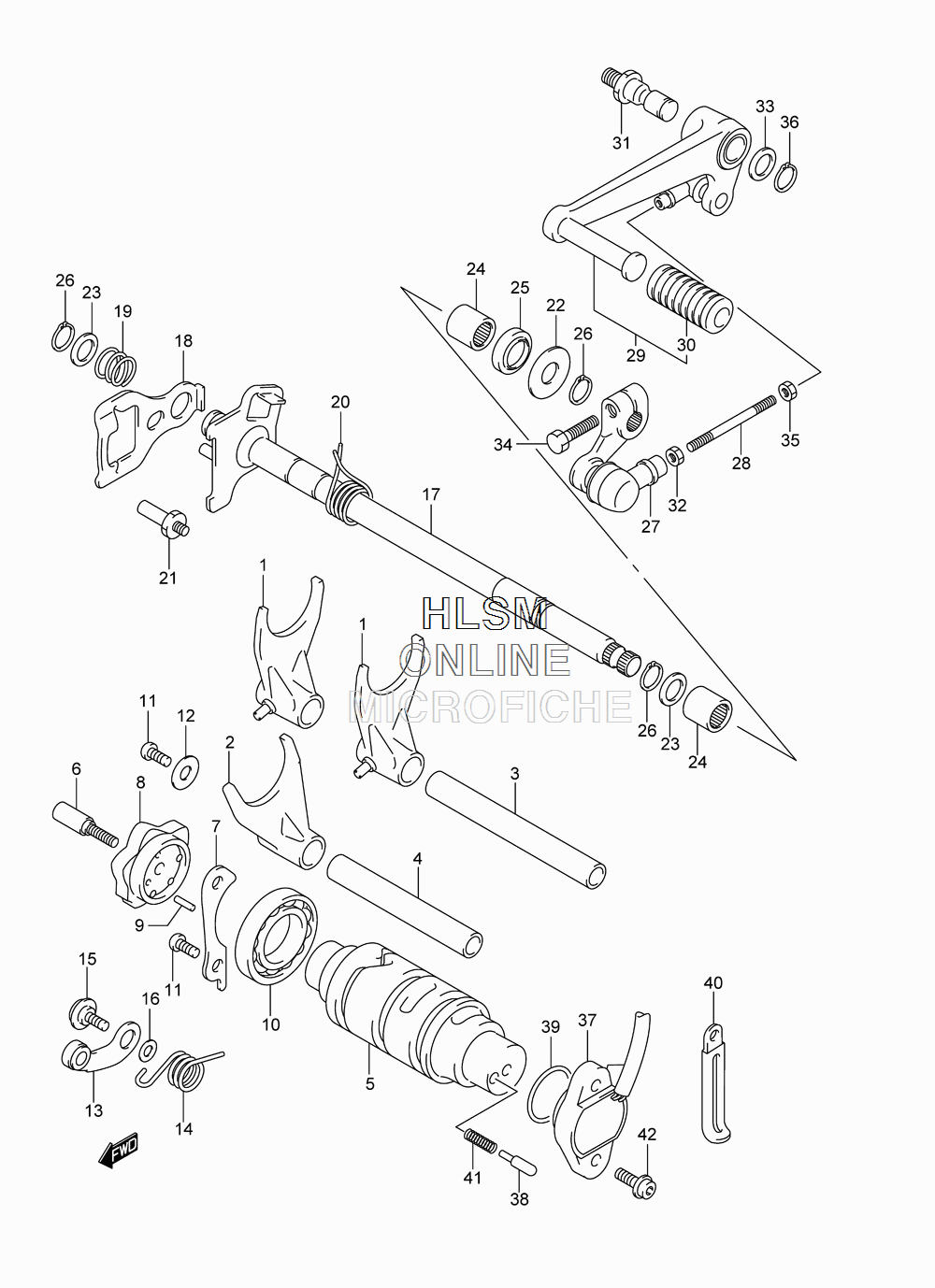

GEAR SHIFTING для Suzuki GW 250 L3 - 2013 года выпуска
-
№АртикулНазвание
-
125211-48H00 FORK, GEAR SHIFT NO...1FORK, GEAR SHIFT NO...1
-
225221-48H00 FORK, GEAR SHIFT NO...2FORK, GEAR SHIFT NO...2
-
325411-48H00 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
425421-48H00 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
525311-48H00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
625312-48H00 STOPPER, SHIFT CAM DRIVE PLATESTOPPER, SHIFT CAM DRIVE PLATE
-
725341-48H00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
825380-48H02 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
909261-03002 PIN (3X9.8)PIN (3X9.8)
-
1009262-25L01 BEARING (25X47X8)BEARING (25X47X8)
-
1102112-0612A SCREWSCREW
-
1208211-06183 RETAINERRETAINER
-
1325350-48H00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1425355-48H00 SPRING, GEAR SHIFT CAM STOPPERSPRING, GEAR SHIFT CAM STOPPER
-
1509106-06131 BOLT (6X14.5)BOLT (6X14.5)
-
1608211-06121 WASHERWASHER
-
1725510-48H00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1825512-48H00 PLATE, GEAR SHIFT CAM DRIVEPLATE, GEAR SHIFT CAM DRIVE
-
1925515-48H01 SPRING, SHIFT PLATE RETURNSPRING, SHIFT PLATE RETURN
-
2025518-48H00 SPRING, SHIFT SHAFT RETURNSPRING, SHIFT SHAFT RETURN
-
2125671-16H10 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2209160-14069 WASHER (14X29X0.8)WASHER (14X29X0.8)
-
2309160-14070 WASHER (14X22X1)WASHER (14X22X1)
-
2409263-14L01 BEARING (14X20X12)BEARING (14X20X12)
-
2509283-14L01 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2608331-3114A CIRCLIPCIRCLIP
-
2725520-48H10 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2825525-48H00 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
2925600-48H10 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3025652-48H00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3125617-03F20 SHAFT, GEAR SHIFT LEVERSHAFT, GEAR SHIFT LEVER
-
3209140-06031 NUTNUT
-
3309160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3401500-0620A BOLTBOLT
-
35083106A NUTNUT
-
3608331-3112A CIRCLIPCIRCLIP
-
3737730-48H00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3809209-05024 CONTACTCONTACT
-
3909280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4009404-06206 CLAMP (L:60)CLAMP (L:60)
-
4109440-04010 SPRINGSPRING
-
4207120-0516A BOLTBOLT
