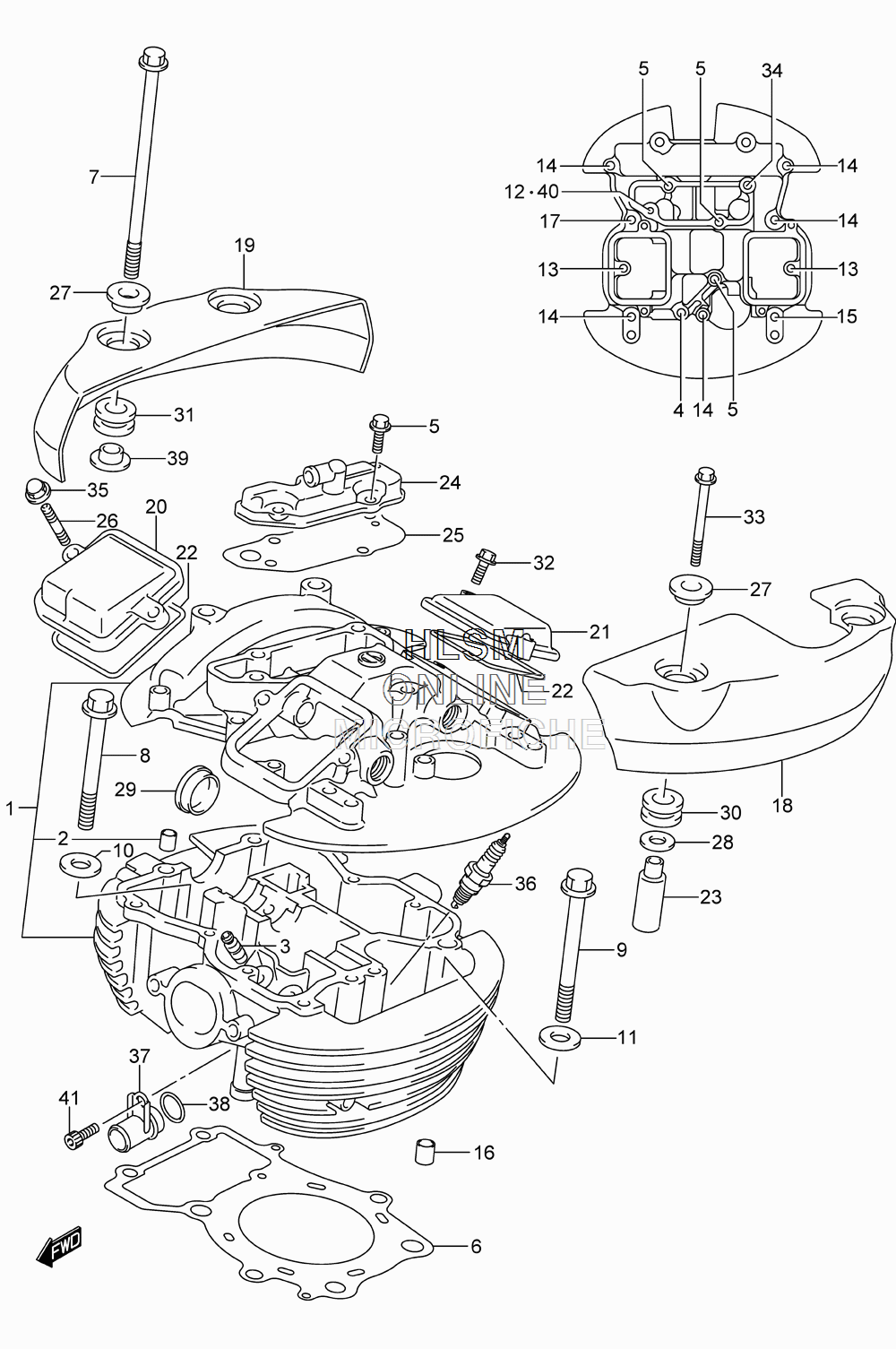

CYLINDER HEAD (REAR) для Suzuki VL800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
111103-39G60 HEAD ASSY, CYLINDER REARHEAD ASSY, CYLINDER REAR
-
209206-11011 ...PIN (11X14)...PIN (11X14)
-
311115-41F70 GUIDE, VALVE (OS 0.3)GUIDE, VALVE (OS 0.3)
-
409103-06304 BOLT (6X50)BOLT (6X50)
-
509103-06305 BOLT (6X55)BOLT (6X55)
-
611142-41F00 GASKET, CYLINDER HEAD REARGASKET, CYLINDER HEAD REAR
-
709103-08370 BOLT (8X250)BOLT (8X250)
-
809103-10133 BOLT (10X155)BOLT (10X155)
-
909103-10134 BOLT (10X165)BOLT (10X165)
-
1009160-08130 WASHER (8.5X24X1.6)WASHER (8.5X24X1.6)
-
1109160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
1201547-0655A BOLTBOLT
-
1301547-0625A BOLTBOLT
-
1401547-0630A BOLTBOLT
-
1501547-0640A BOLTBOLT
-
1604211-13189 KNOCK PINKNOCK PIN
-
1707120-0630B BOLTBOLT
-
1811173-41FA0 CAP, CYLINDER HEAD COVER REARCAP, CYLINDER HEAD COVER REAR
-
1911174-41F00 CAP, CYLINDER HEAD COVER REARCAP, CYLINDER HEAD COVER REAR
-
2011175-38A11 CAP, INSPECTION INTAKECAP, INSPECTION INTAKE
-
2111176-38A11 CAP, INSPECTION EXHAUSTCAP, INSPECTION EXHAUST
-
2211177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
2311179-10F10 SPACER, HEAD COVER CAPSPACER, HEAD COVER CAP
-
2411186-41FB0 COVER, BREATHERCOVER, BREATHER
-
2511187-41F20 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
2609108-06102 STUD BOLTSTUD BOLT
-
2709160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
2809160-09016 WASHER (9.5X20X1)WASHER (9.5X20X1)
-
2909241-30004 PLUG (OD:30)PLUG (OD:30)
-
3009320-09016 CUSHIONCUSHION
-
3109320-13015 CUSHIONCUSHION
-
3201547-0620A BOLTBOLT
-
3301547-06557 BOLTBOLT
-
3401547-0620A BOLTBOLT
-
3509159-06093 NUTNUT
-
3609482-00354 SPARK PLUG (NGK, DPR7EA-9)SPARK PLUG (NGK, DPR7EA-9)
-
3609482-00330 SPARK PLUG (NGK, DPR9EA-9)SPARK PLUG (NGK, DPR9EA-9)
-
3609482-00331 SPARK PLUG (DENSO, X27EPR-U9)SPARK PLUG (DENSO, X27EPR-U9)
-
3609482-00334 SPARK PLUG (NGK, DPR8EA-9)SPARK PLUG (NGK, DPR8EA-9)
-
3609482-00335 SPARK PLUG (DENSO, X24EPR-U9)SPARK PLUG (DENSO, X24EPR-U9)
-
3717891-41F10 UNION, CYLINDER HEAD JOINTUNION, CYLINDER HEAD JOINT
-
3809280-16005 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
3909301-08007 BUSHBUSH
-
4009168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
4107130-0612A BOLTBOLT
