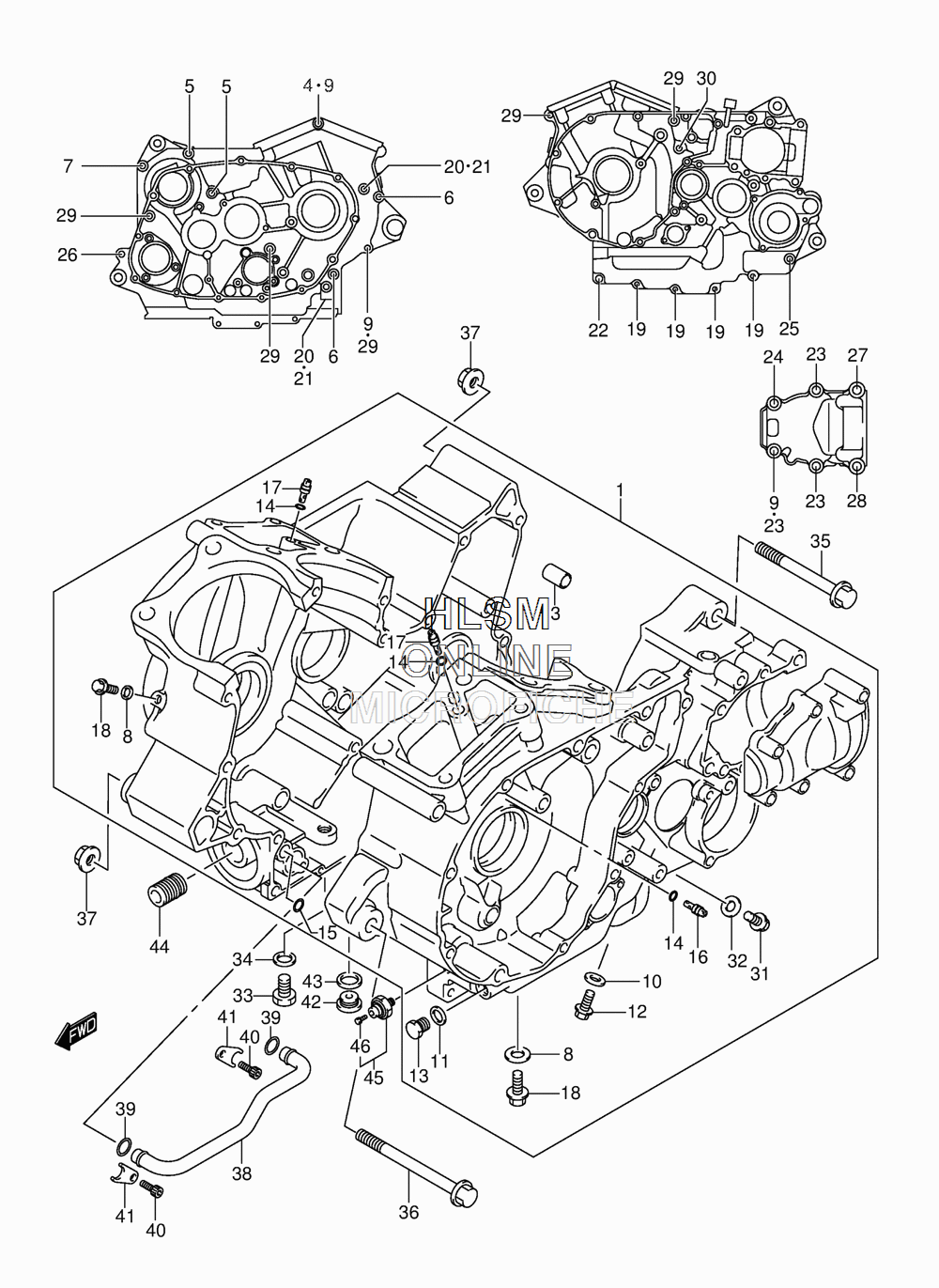

CRANKCASE для Suzuki VL800 L4 - 2014 года выпуска
-
№АртикулНазвание
-
111302-39830 CRANKCASE SETCRANKCASE SET
-
209160-48001 WASHER (48.1X64X1.94)WASHER (48.1X64X1.94)
-
209160-48002 WASHER (48.1X64X1.96)WASHER (48.1X64X1.96)
-
209160-48003 WASHER (48.1X64X1.99)WASHER (48.1X64X1.99)
-
209160-48004 WASHER (48.1X64X2.01)WASHER (48.1X64X2.01)
-
209160-48005 WASHER (48.1X64X2.04)WASHER (48.1X64X2.04)
-
209160-48006 WASHER (48.1X64X2.06)WASHER (48.1X64X2.06)
-
209160-48007 WASHER (48.1X64X2.09)WASHER (48.1X64X2.09)
-
209160-48008 WASHER (48.1X64X2.11)WASHER (48.1X64X2.11)
-
209160-48009 WASHER (48.1X64X2.14)WASHER (48.1X64X2.14)
-
209160-48010 WASHER (48.1X64X2.16)WASHER (48.1X64X2.16)
-
309206-11007 PIN (8.4X11X20)PIN (8.4X11X20)
-
409103-08405 BOLT (8X160)BOLT (8X160)
-
509103-08406 BOLT (8X120)BOLT (8X120)
-
609103-08179 BOLT (8X105)BOLT (8X105)
-
709103-08164 BOLT (8X95)BOLT (8X95)
-
809168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1009168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
1109168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1209247-10008 PLUG (10X12)PLUG (10X12)
-
1309247-14026 PLUG (14X12)PLUG (14X12)
-
1409280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1509280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
1609493-20014 JET, OIL GALLERYJET, OIL GALLERY
-
1709493-28010 JET AIR (14)JET AIR (14)
-
1801550-0610A BOLTBOLT
-
1901547-0640A BOLTBOLT
-
2001550-0812A BOLTBOLT
-
2109168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2201550-0835A BOLTBOLT
-
2301550-0840A BOLTBOLT
-
2401550-0850A BOLTBOLT
-
2501550-0855A BOLTBOLT
-
2601550-0860A BOLTBOLT
-
2701550-0855A BOLTBOLT
-
2801550-0865A BOLTBOLT
-
2909103-08105 BOLT (8X95)BOLT (8X95)
-
3001550-0875A BOLTBOLT
-
3109103-08407 BOLT (8X12)BOLT (8X12)
-
3209168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
3309247-12011 PLUG (12X20)PLUG (12X20)
-
3409168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
3509103-10706 BOLT (10X135)BOLT (10X135)
-
3609103-10705 BOLT (10X160)BOLT (10X160)
-
3709159-10113 NUTNUT
-
3811451-38A00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
3909280-15008 O RING (D:3.1,ID:14.8)O RING (D:3.1,ID:14.8)
-
4009106-06075 BOLT (6X12)BOLT (6X12)
-
4111461-38A00 CLAMPCLAMP
-
4209248-16013 PLUGPLUG
-
4309168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
4416591-06B01 UNIONUNION
-
4537820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
4637822-33D00 BOLTBOLT
