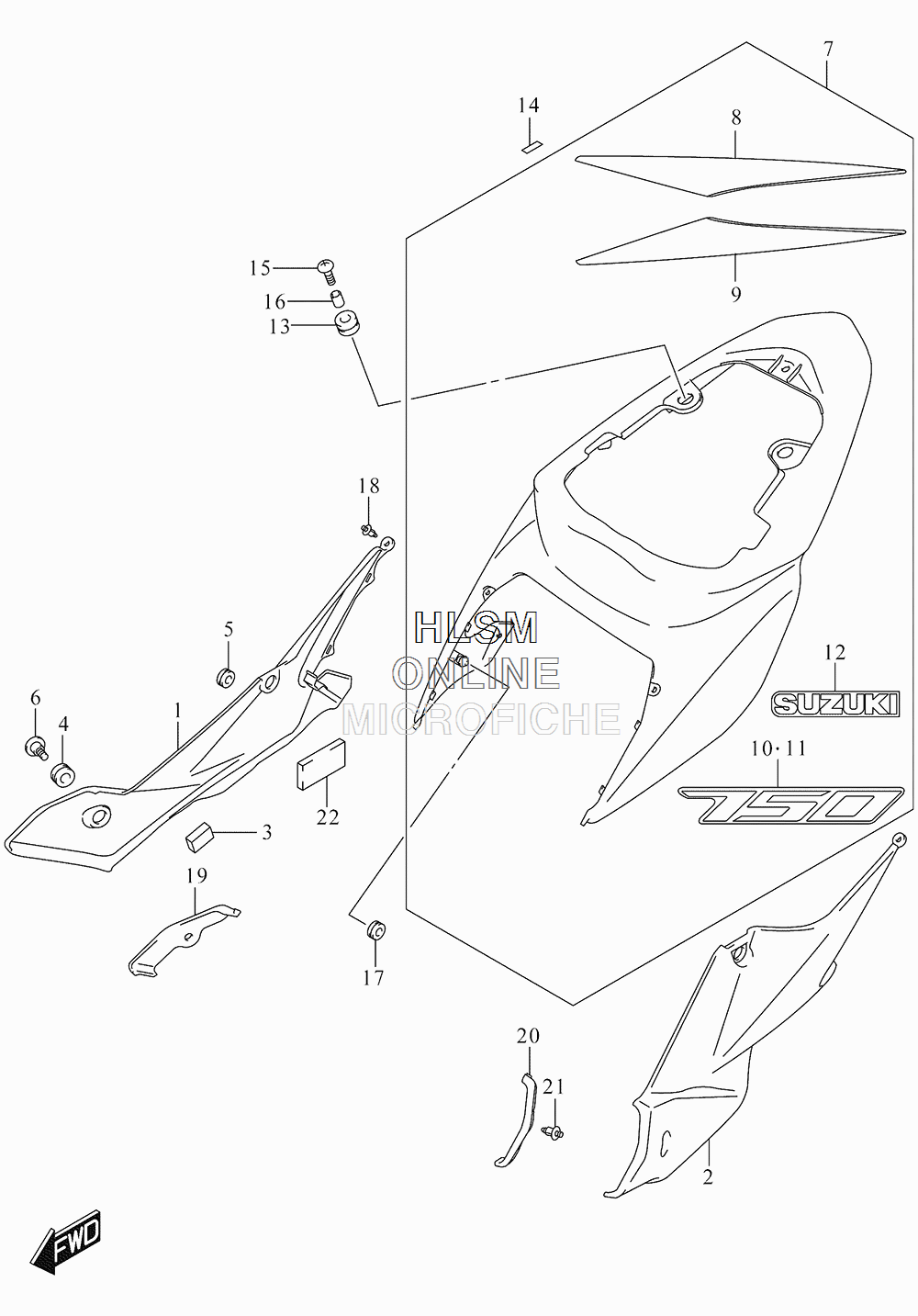

SIDE COVER для Suzuki GSX-S750Z L5 - 2015 года выпуска
-
№АртикулНазвание
-
147511-08J00-291 COVER, FRAME FRONT RIGHT HAND (BLACK)COVER, FRAME FRONT RIGHT HAND (BLACK)
-
247611-08J00-291 COVER, FRAME FRONT LEFT HAND (BLACK)COVER, FRAME FRONT LEFT HAND (BLACK)
-
394422-06G00 CUSHIONCUSHION
-
409320-09016 CUSHIONCUSHION
-
547113-37H00 CUSHIONCUSHION
-
647118-08J00 SCREW, FRAME COVER FRONTSCREW, FRAME COVER FRONT
-
747310-08J10-YSF COVER, FRAME CENTER (BLUE)COVER, FRAME CENTER (BLUE)
-
868162-08J00-AGQ ...TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE)...TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE)
-
968172-08J00-AGQ ...TAPE, FRAME COVER LEFT HAND (BLUE/WHITE)...TAPE, FRAME COVER LEFT HAND (BLUE/WHITE)
-
1068161-08J00-AHR ...EMBLEM, ''750'' RIGHT HAND (CHROME/BLUE)...EMBLEM, ''750'' RIGHT HAND (CHROME/BLUE)
-
1168171-08J00-AHR ...EMBLEM, ''750'' LEFT HAND (CHROME/BLUE)...EMBLEM, ''750'' LEFT HAND (CHROME/BLUE)
-
1268171-28H00-YD8 ...EMBLEM, ''SUZUKI'' (SILVER)...EMBLEM, ''SUZUKI'' (SILVER)
