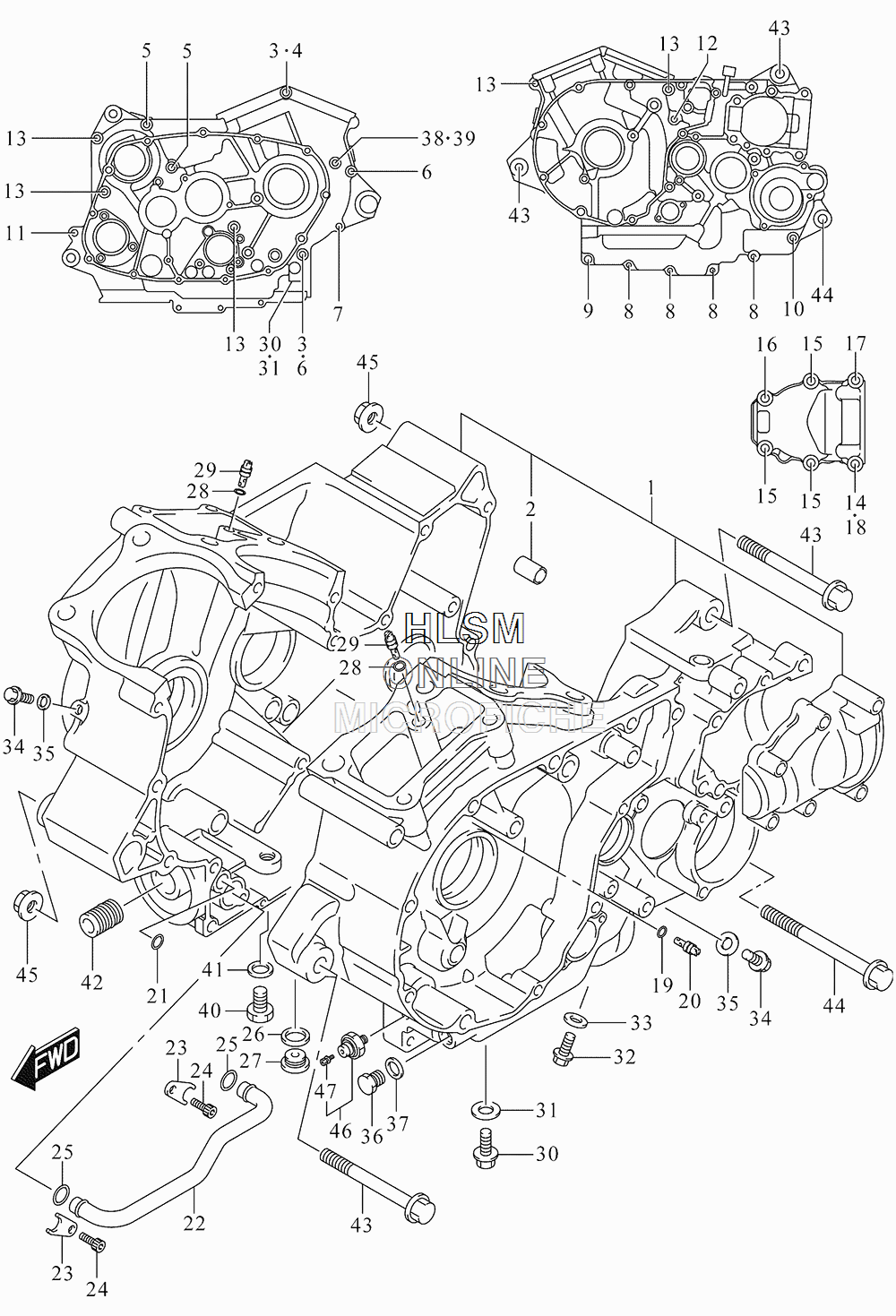

CRANKCASE для Suzuki VZ800M50 L5 BOULEVARD M50 - 2015 года выпуска
-
№АртикулНазвание
-
111302-39830 CRANKCASE SETCRANKCASE SET
-
209206-11007 ...PIN (8.4X11X20)...PIN (8.4X11X20)
-
309168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
409103-08405 ...BOLT (8X160)...BOLT (8X160)
-
509103-08406 ...BOLT (8X120)...BOLT (8X120)
-
609103-08179 ...BOLT (8X105)...BOLT (8X105)
-
709103-08164 ...BOLT (8X95)...BOLT (8X95)
-
801547-0640A ...BOLT...BOLT
-
901550-0835A ...BOLT...BOLT
-
1001550-0855A ...BOLT...BOLT
-
1101550-0860A ...BOLT...BOLT
-
1201550-0875A ...BOLT...BOLT
-
1309103-08105 ...BOLT (8X95)...BOLT (8X95)
-
1409168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1501550-0840A ...BOLT...BOLT
-
1601550-0850A ...BOLT...BOLT
-
1701550-0855A ...BOLT...BOLT
-
1801550-0865A ...BOLT...BOLT
-
1909280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2009493-20014 JET,OIL GALLERYJET,OIL GALLERY
-
2109280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
2211451-38A00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
2311461-38A00 CLAMP, OIL PIPECLAMP, OIL PIPE
-
2409106-06075 BOLT (6X12)BOLT (6X12)
-
2509280-15008 O RING (D:3.1,ID:14.8)O RING (D:3.1,ID:14.8)
-
2609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2709248-16013 PLUGPLUG
-
2809280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2909493-28010 JET AIR(14)JET AIR(14)
-
3001550-0812A BOLTBOLT
-
3109168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
3209247-10008 PLUG (10X12)PLUG (10X12)
-
3309168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
3401550-0610A BOLTBOLT
-
3509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3609247-14026 PLUG (14X12)PLUG (14X12)
-
3709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3809103-08407 BOLT (8X12)BOLT (8X12)
-
3909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
4009247-12011 PLUG (12X20) (OIL DRAIN)PLUG (12X20) (OIL DRAIN)
-
4109168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
4216591-06B01 UNIONUNION
-
4309103-10706 BOLT (10X135)BOLT (10X135)
-
4409103-10705 BOLT (10X160)BOLT (10X160)
-
4509159-10113 NUTNUT
-
4637820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
4737822-33D00 ...BOLT, OIL PRESS SW...BOLT, OIL PRESS SW
