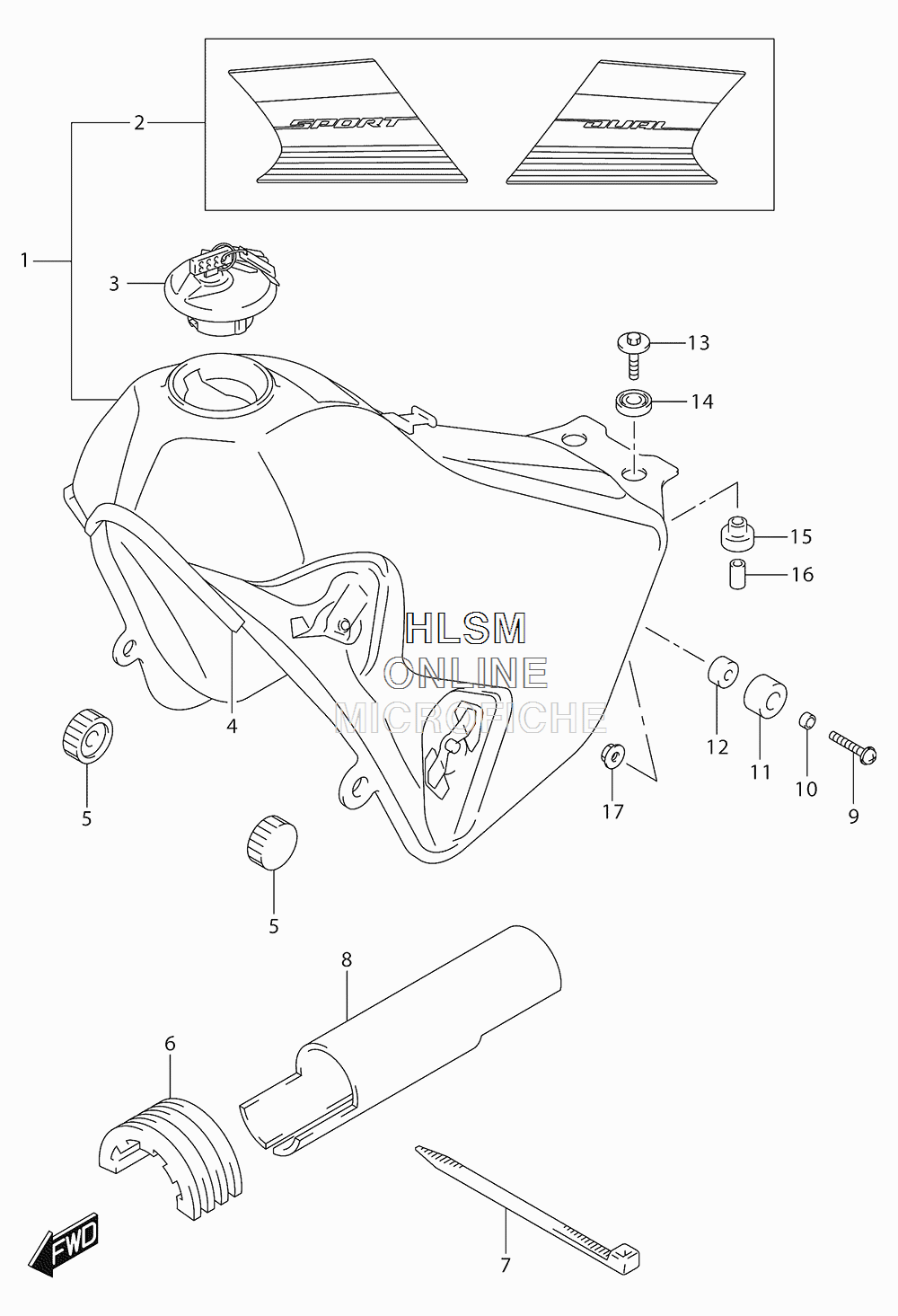

FUEL TANK для Suzuki DR-Z400S L6 - 2016 года выпуска
-
№АртикулНазвание
-
149200-29FG0-019 TANK ASSY, FUEL (BLACK)TANK ASSY, FUEL (BLACK)
-
268120-29F90-A84 ...TAPE SET, FUEL TANK...TAPE SET, FUEL TANK
-
344200-29820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
468241-04X50-300 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
509329-10016 CUSHIONCUSHION
-
644541-29F00 CUSHION, UPPERCUSHION, UPPER
-
709407-30402 CLAMP (L:300)CLAMP (L:300)
-
844194-29F00 SHIELD, FUEL TANKSHIELD, FUEL TANK
-
902112-1630B SCREWSCREW
-
1009180-06215 SPACER (6.5X20X9)SPACER (6.5X20X9)
-
1145149-14D00 CUSHION, SIDECUSHION, SIDE
-
1209180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1309116-06214 BOLT (6X30)BOLT (6X30)
-
1409320-14022 CUSHIONCUSHION
-
1509320-10020 CUSHIONCUSHION
-
1609180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1708319-3106B NUTNUT
