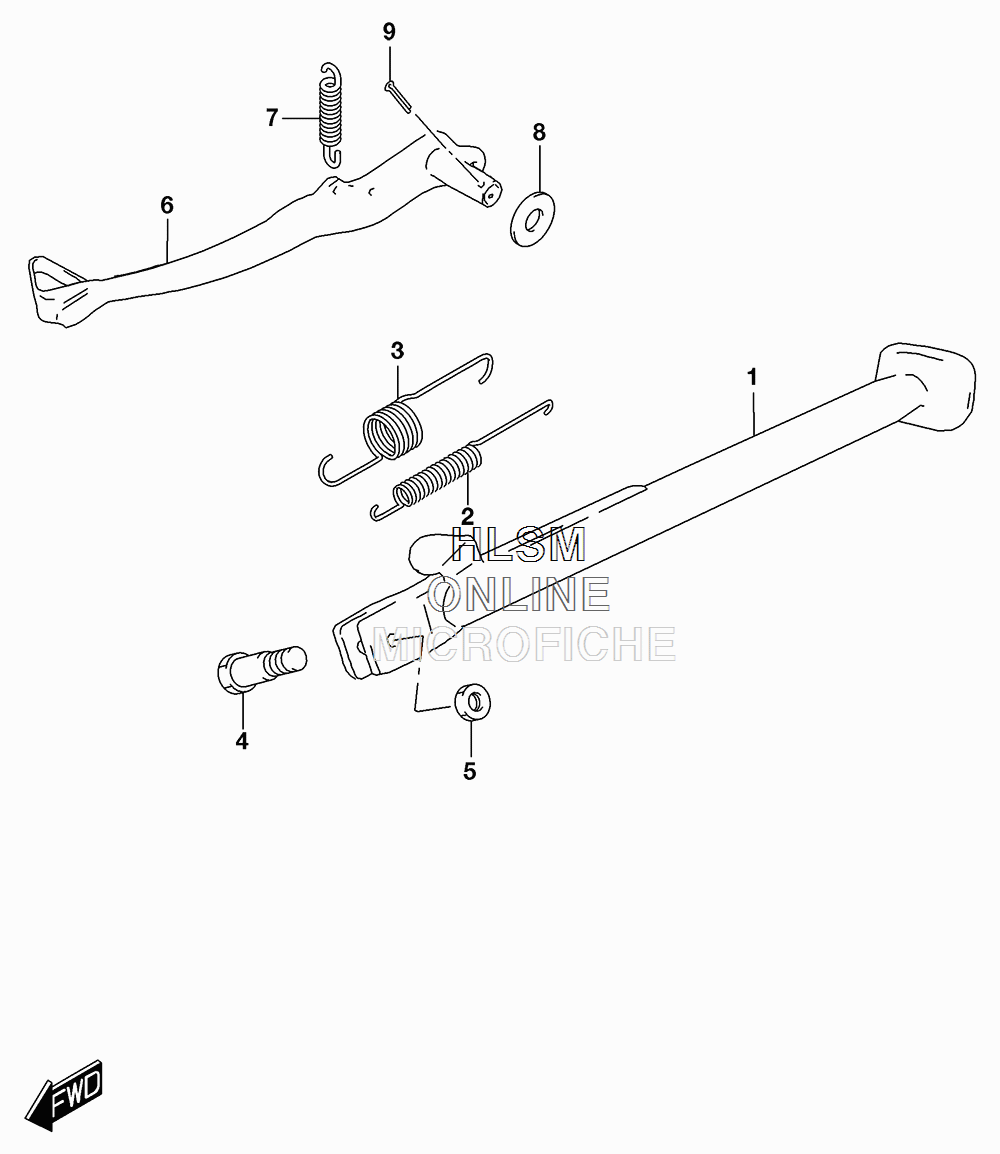

BRAKE PEDAL W/ STAND для Suzuki DR650SE L6 - 2016 года выпуска
-
№АртикулНазвание
-
142310-32E20 STAND, PROPSTAND, PROP
-
209443-12045 SPRINGSPRING
-
309443-19010 SPRINGSPRING
-
409111-10047 BOLT (10X30)BOLT (10X30)
-
509159-10097 NUTNUT
-
643110-32E00 PEDAL, BRAKEPEDAL, BRAKE
-
709443-11030 SPRINGSPRING
-
809160-15049 WASHER (15.5X24X2.3)WASHER (15.5X24X2.3)
-
904111-3025A COTTER PINCOTTER PIN
