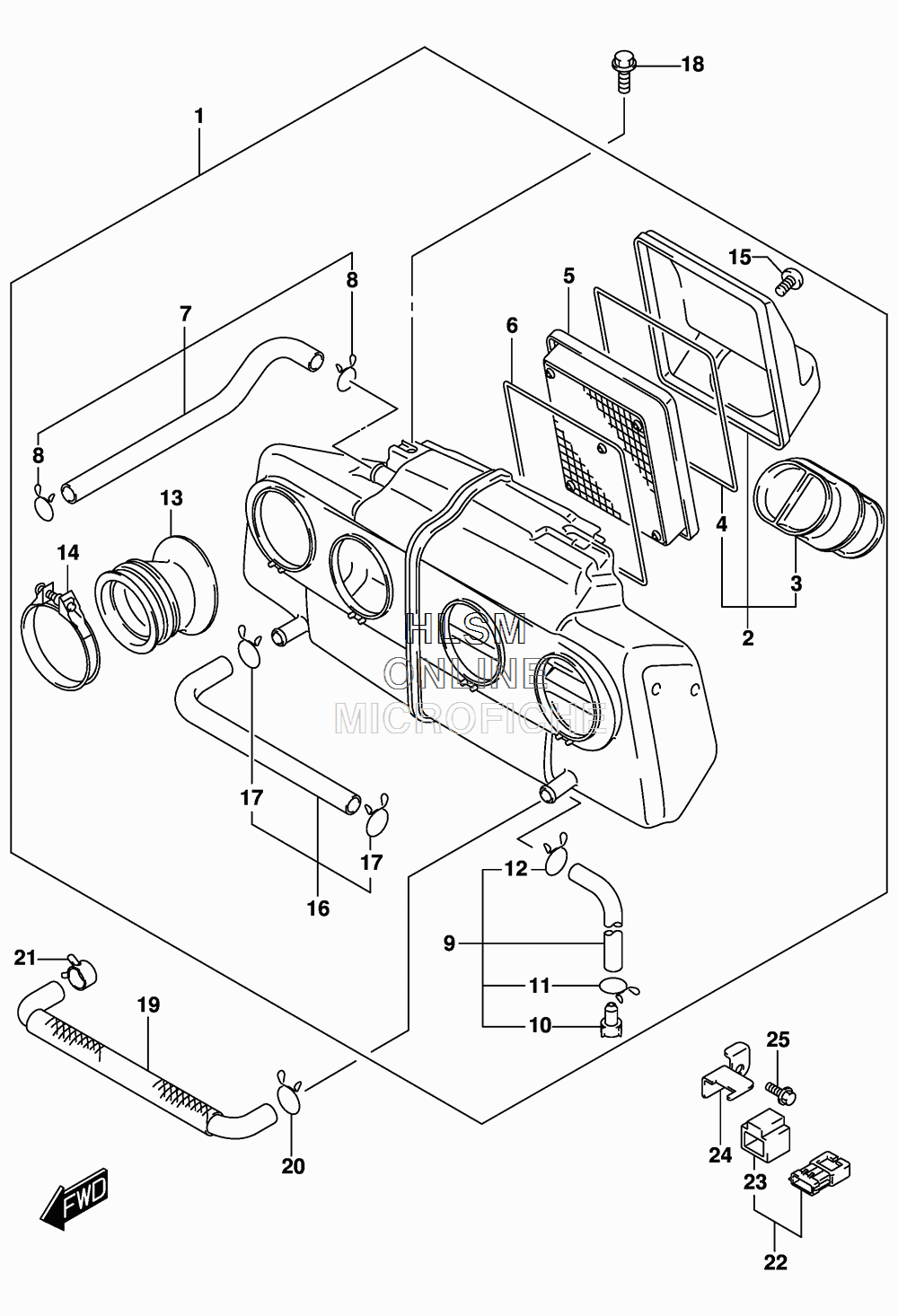

AIR CLEANER для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска
-
№АртикулНазвание
-
113700-18H12 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-18H01 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
313891-18H00 ......TUBE, INLET......TUBE, INLET
-
413746-18H00 ......GASKET......GASKET
-
513780-18H00 ...FILTER ASSY...FILTER ASSY
-
613746-18H00 ...GASKET...GASKET
-
713850-18H00 ...TUBE, BREATHER...TUBE, BREATHER
-
809401-15101 ......CLIP......CLIP
-
913870-18H00 ...TUBE, DRAIN...TUBE, DRAIN
-
1013877-00190 ......PLUG, DRAIN TUBE......PLUG, DRAIN TUBE
-
1109401-15101 ......CLIP......CLIP
-
1209401-13409 ......CLIP......CLIP
-
1313881-18H00 ...TUBE, OUTLET...TUBE, OUTLET
-
1413826-44H01 ...CLAMP, OUTLET TUBE...CLAMP, OUTLET TUBE
-
1502142-0512A ...SCREW...SCREW
-
1613910-18H00 ...TUBE...TUBE
-
1709401-15101 ......CLIP......CLIP
-
1801550-0612A BOLTBOLT
-
1913697-18H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2009401-15101 CLIPCLIP
-
2109401-17401 CLIPCLIP
-
2215630-29G20 SENSOR, BOOSTSENSOR, BOOST
-
2315625-29G10 ...COVER...COVER
-
2413166-18H00 BRACKETBRACKET
-
2501550-0612A BOLTBOLT
