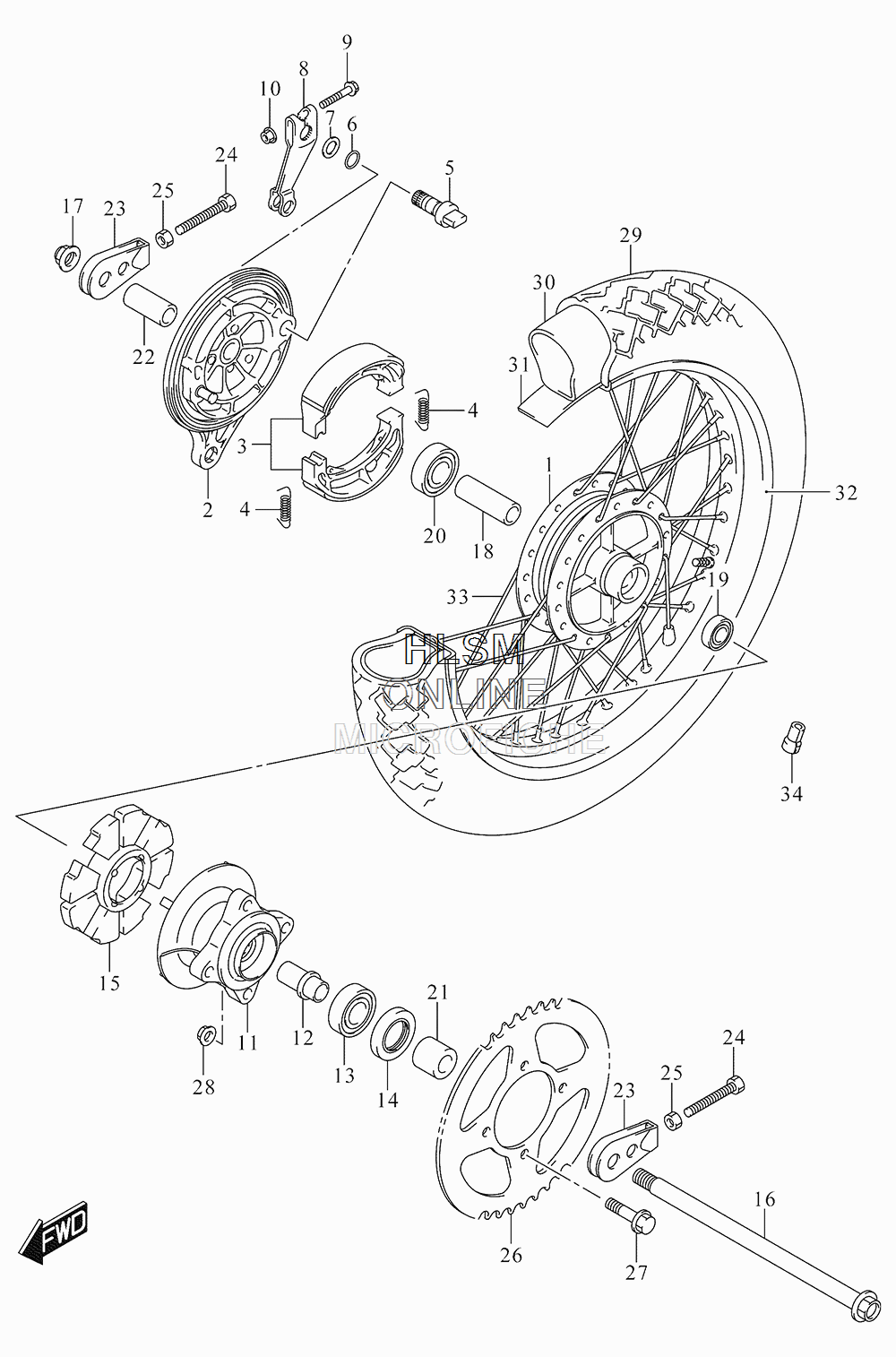

WHEEL - REAR для Suzuki TU250X L6 - 2016 года выпуска
-
№АртикулНазвание
-
164110-07005 HUB, REAR WHEELHUB, REAR WHEEL
-
264210-39115 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
354402-07810 SHOE, REAR BRAKESHOE, REAR BRAKE
-
409443-07001 SPRING (L:34)SPRING (L:34)
-
554441-29305 CAM, REAR BRAKECAM, REAR BRAKE
-
609280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
709160-14055 WASHER (14.5X22X1.6)WASHER (14.5X22X1.6)
-
864451-38210 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
901550-0635B BOLTBOLT
-
1008316-1006B NUTNUT
-
1164610-38300 DRUM, REAR SPROCKET MOUNTINGDRUM, REAR SPROCKET MOUNTING
-
1264733-38300 RETAINER, REAR SPROCKET DRUMRETAINER, REAR SPROCKET DRUM
-
1309262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
1409285-28001 OIL SEAL (28X47X7)OIL SEAL (28X47X7)
-
1564651-07001 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
1664711-08320 AXLE, REARAXLE, REAR
-
1708319-3114A NUTNUT
-
1809180-15011 SPACER (15.3X21.7X63)SPACER (15.3X21.7X63)
-
1908143-62027 BEARING (LH)BEARING (LH)
-
2008153-63027 BEARING (RH)BEARING (RH)
-
2109180-15061 SPACER (15X28X24.8)SPACER (15X28X24.8)
-
2209180-15060 SPACER (15X22X46.8)SPACER (15X22X46.8)
-
2361410-38310 ADJUSTER, CHAINADJUSTER, CHAIN
-
2409100-08303 BOLT (8X50)BOLT (8X50)
-
2508310-0008B NUTNUT
-
2664511-25D00 SPROCKET, REAR (NT:43)SPROCKET, REAR (NT:43)
-
2709103-10044 BOLT (10X40)BOLT (10X40)
-
2808319-3110A NUTNUT
-
2965110-26G10 TIRE, REAR (110/90-18M/C 61S)TIRE, REAR (110/90-18M/C 61S)
-
3065200-26G10 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
3155261-26G00 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
3265311-26G00 RIM, REAR WHEEL (18M/CXMT2.50)RIM, REAR WHEEL (18M/CXMT2.50)
-
3365320-26G00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
3455411-26G00 BALANCER (15G)BALANCER (15G)
-
3455413-41F00 BALANCER (30G)BALANCER (30G)
