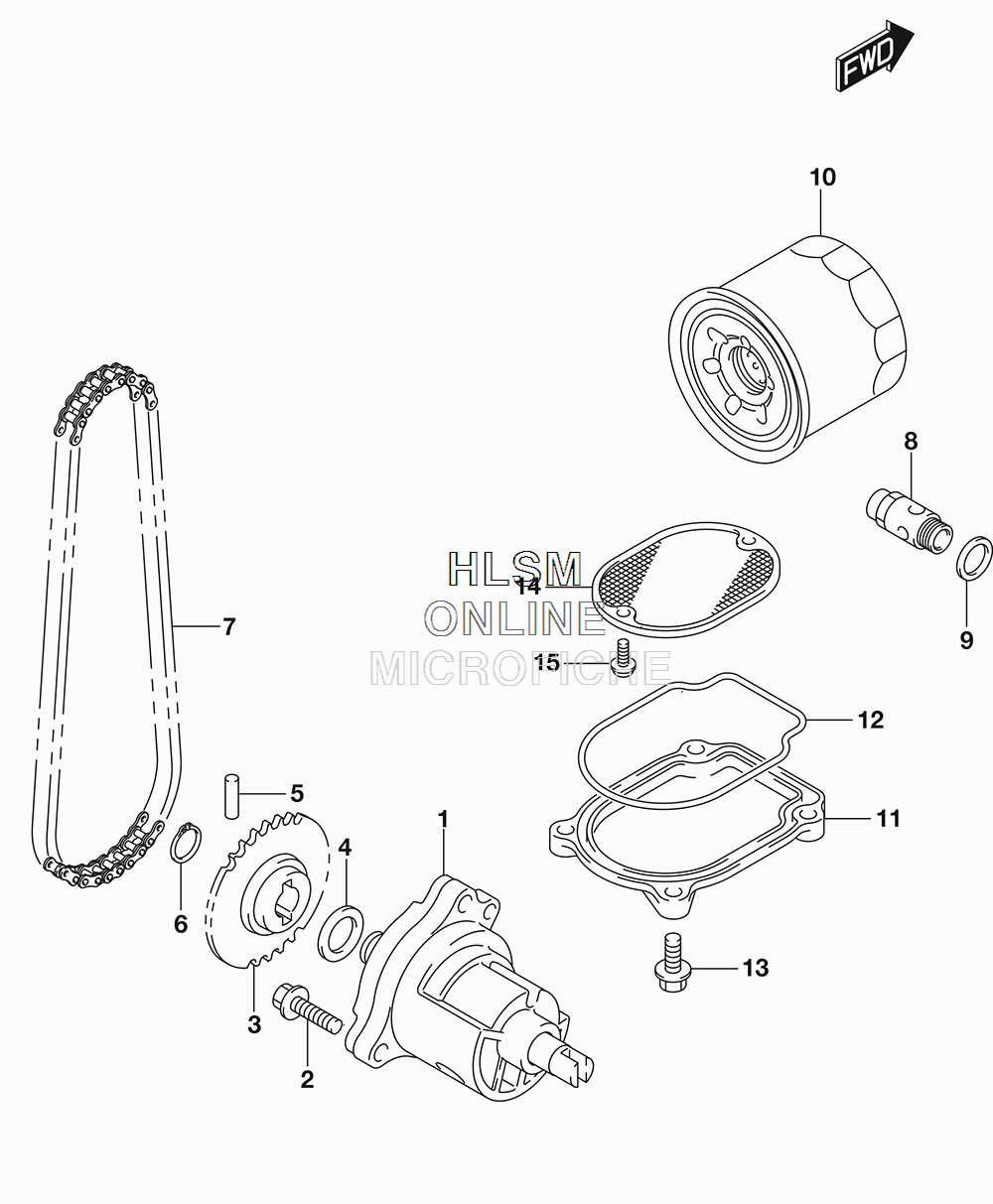

OIL PUMP для Suzuki VL800 C50 - 2017 года выпуска
-
№АртикулНазвание
-
116400-38A01 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
201547-0625A BOLTBOLT
-
316331-38A10 SPROCKET, OIL PUMP DRIVEN (NT:29)SPROCKET, OIL PUMP DRIVEN (NT:29)
-
409181-12158 SHIM (12X20X0.5)SHIM (12X20X0.5)
-
509261-05006 PIN (5X18)PIN (5X18)
-
608331-3112A CIRCLIPCIRCLIP
-
716310-38A00 CHAIN ASSY, OIL PUMP DR (DID 25H)CHAIN ASSY, OIL PUMP DR (DID 25H)
-
816440-17C20 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
909168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
1016510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1116523-38A00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1216528-38A00 O RING, OIL STRAINER CAPO RING, OIL STRAINER CAP
-
1301547-0620A BOLTBOLT
-
1416520-38A10 STRAINER, ENG OILSTRAINER, ENG OIL
-
1502112-7512A SCREWSCREW
