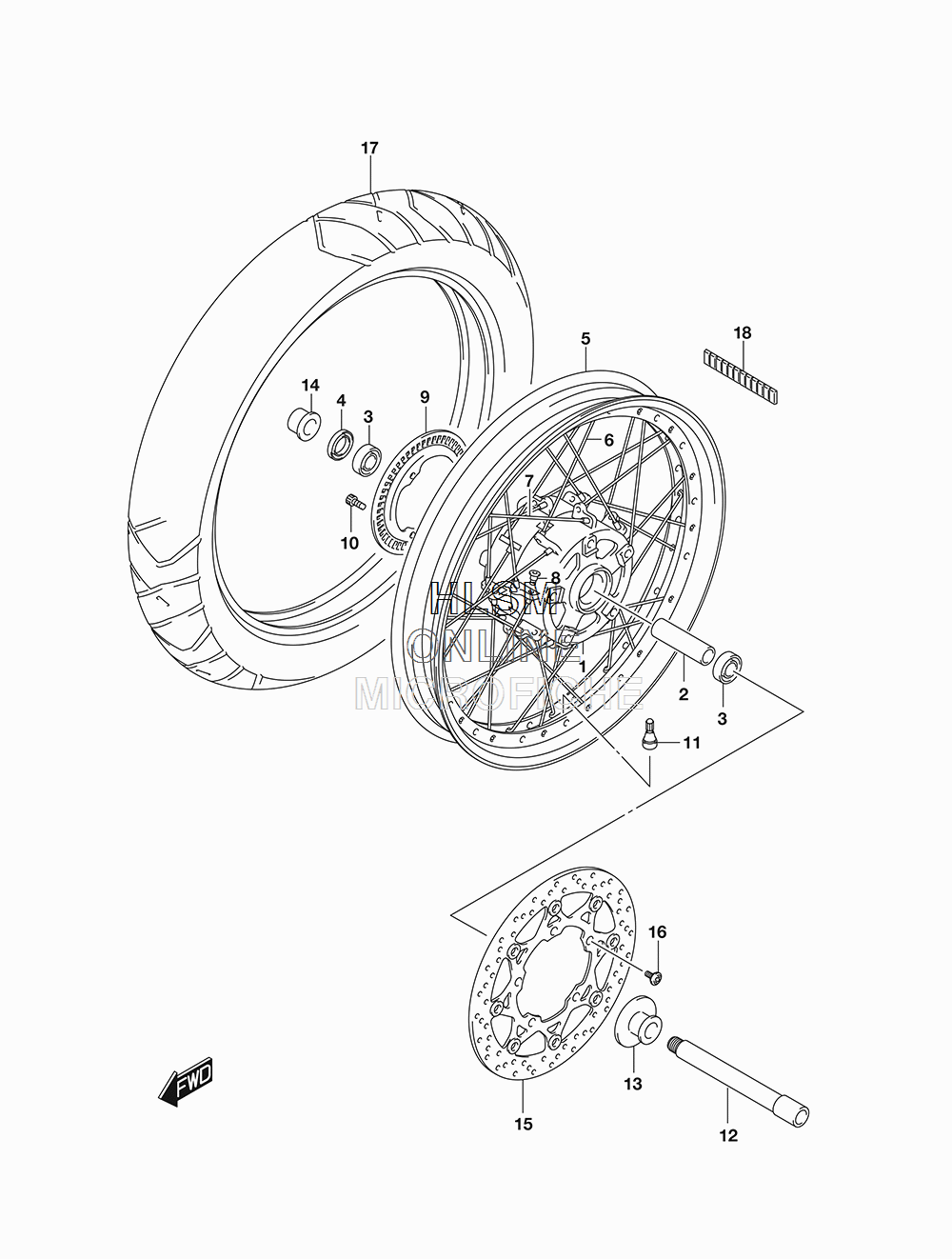

WHEEL - FRONT для Suzuki DL650XA V-STORM 650XT - 2018 года выпуска
-
№АртикулНазвание
-
154111-11J00 HUB, FRONTHUB, FRONT
-
209180-17067 SPACER (17.5X25X88)SPACER (17.5X25X88)
-
308133-62037 BEARING (17X40X12)BEARING (17X40X12)
-
454841-28K00 SEAL, FRONT HUB BRG DUSTSEAL, FRONT HUB BRG DUST
-
5-155311-11J00 RIM, FR WHEEL (19M/CXMT2.50) (BLACK)RIM, FR WHEEL (19M/CXMT2.50) (BLACK)
-
5-255311-11J10 RIM, FR WHEEL (19M/CXMT2.50) (GOLD)RIM, FR WHEEL (19M/CXMT2.50) (GOLD)
-
655321-11J00 SPOKE, FRONT WHEEL INNERSPOKE, FRONT WHEEL INNER
-
755322-11J00 SPOKE, FRONT WHEEL OUTERSPOKE, FRONT WHEEL OUTER
-
855326-11J00 NIPPLE, WHEELNIPPLE, WHEEL
-
954162-28K00 RING, SPEED SENSOR (50T)RING, SPEED SENSOR (50T)
-
1007130-0512A BOLTBOLT
-
1143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1254711-08F10 AXLE, FRONTAXLE, FRONT
-
1354750-31F00 SPACER, FRONT AXLE (LH)SPACER, FRONT AXLE (LH)
-
1454751-10G01 SPACER, FRONT AXLESPACER, FRONT AXLE
-
1559210-44G11 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1609106-08160 BOLT (8X21)BOLT (8X21)
-
1755110-28K00 TIRE, FRONT (BATTLAX ADVENTURE A40F F) (BRIDGESTONE)TIRE, FRONT (BATTLAX ADVENTURE A40F F) (BRIDGESTONE)
-
1855411-11J00 WEIGHT, WHEEL BALANCE (5GRAM)WEIGHT, WHEEL BALANCE (5GRAM)
