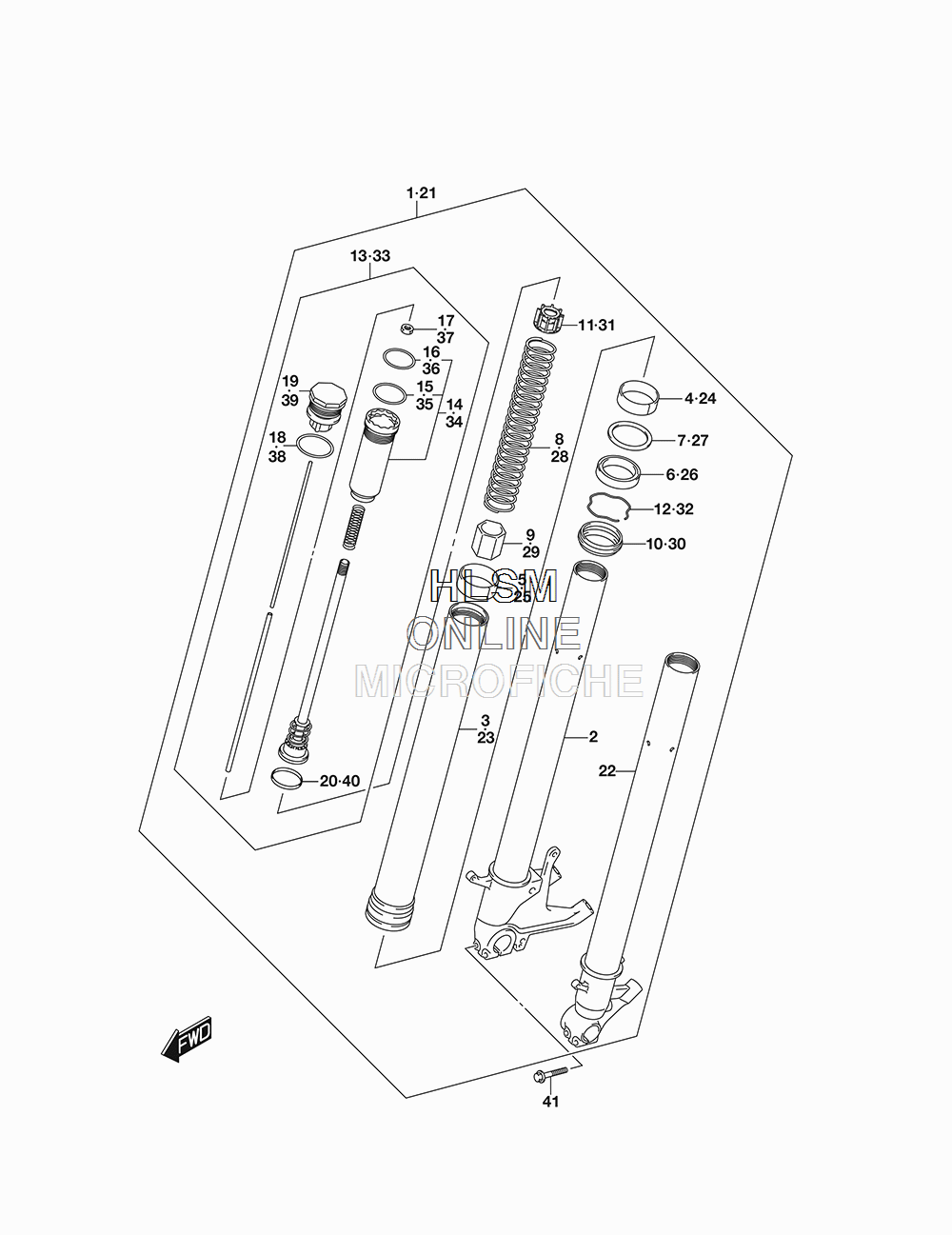

SUSPENSION - FRONT FORK DAMPER (CANADA) для Suzuki GSX-R1000A - 2018 года выпуска
-
№АртикулНазвание
-
151103-17K00 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-17K00 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351131-17K00 ...TUBE, OUTER...TUBE, OUTER
-
451152-47H00 ...BUSH, GUIDE...BUSH, GUIDE
-
551152-47H10 ...BUSH, SLIDE...BUSH, SLIDE
-
651153-47H00 ...SEAL, OIL...SEAL, OIL
-
751168-29G00 ...SPACER, SEAL...SPACER, SEAL
-
851171-47H20 ...SPRING...SPRING
-
951176-47H20 ...COLLAR, SPRING...COLLAR, SPRING
-
1051173-27G00 ...SEAL, DUST...SEAL, DUST
-
1151175-47H00 ...COLLAR, SPRING...COLLAR, SPRING
-
1251556-38B00 ...RING, STOPPER...RING, STOPPER
-
1352110-17K00 ...ROD, PISTON...ROD, PISTON
-
1451174-17K00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
1551118-47H00 .......RING, PISTON.......RING, PISTON
-
1651187-47H10 .......O RING.......O RING
-
1751827-29G00 ......NUT......NUT
-
1851187-47H00 ......O RING......O RING
-
1951189-17K00 ......BOLT......BOLT
-
2051118-47H20 ......RING, PISTON......RING, PISTON
-
2151104-17K00 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2251120-17K00 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2351131-17K00 ...TUBE, OUTER...TUBE, OUTER
-
2451152-47H00 ...BUSH, GUIDE...BUSH, GUIDE
-
2551152-47H10 ...BUSH, SLIDE...BUSH, SLIDE
-
2651153-47H00 ...SEAL, OIL...SEAL, OIL
-
2751168-29G00 ...SPACER, SEAL...SPACER, SEAL
-
2851171-47H20 ...SPRING...SPRING
-
2951176-47H20 ...COLLAR, SPRING...COLLAR, SPRING
-
3051173-27G00 ...SEAL, DUST...SEAL, DUST
-
3151175-47H00 ...COLLAR, SPRING...COLLAR, SPRING
-
3251556-38B00 ...RING, STOPPER...RING, STOPPER
-
3352110-17K00 ...ROD, PISTON...ROD, PISTON
-
3451174-17K00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
3551118-47H00 .......RING, PISTON.......RING, PISTON
-
3651187-47H10 .......O RING.......O RING
-
3751827-29G00 ......NUT......NUT
-
3851187-47H00 ......O RING......O RING
-
3951189-17K00 ......BOLT......BOLT
-
4051118-47H20 ......RING, PISTON......RING, PISTON
-
4151321-36F00 BOLTBOLT
