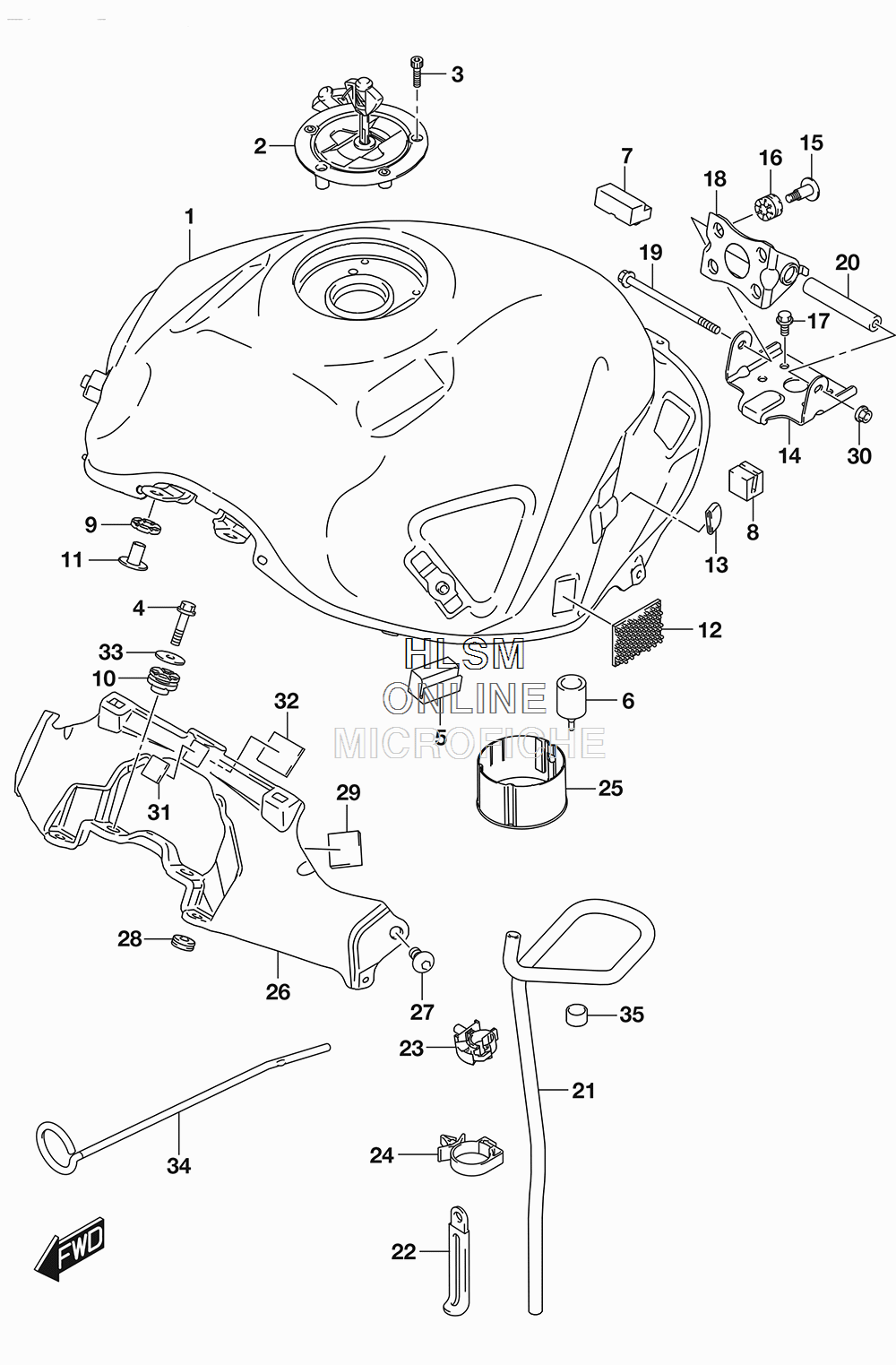

FUEL TANK (CALIF.) для Suzuki GSX-S750Z - 2018 года выпуска
-
№АртикулНазвание
-
144100-13K00-YKV TANK ASSY, FUEL (YKV - BLACK)TANK ASSY, FUEL (YKV - BLACK)
-
244200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
407120-0630A BOLTBOLT
-
544541-08J00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
644542-41G00 CUSHION, FUEL TANK SIDE REARCUSHION, FUEL TANK SIDE REAR
-
744543-13K00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
844544-13K00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
944511-13K00 CUSHION, FUEL TANK FRONT LOWERCUSHION, FUEL TANK FRONT LOWER
-
1044512-13K00 CUSHION, FUEL TANK FRONT UPPERCUSHION, FUEL TANK FRONT UPPER
-
1144512-17K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1244572-13G00 FASTENERFASTENER
-
1344542-08J00 CUSHION, TANK COVER SIDECUSHION, TANK COVER SIDE
-
1444551-13K00 BRACKET, FUEL TANK REAR NO.2BRACKET, FUEL TANK REAR NO.2
-
1509139-06203 SCREW (6X24)SCREW (6X24)
-
1609320-08089 CUSHIONCUSHION
-
1701550-0612A BOLTBOLT
-
1844530-04K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1909106-06135 BOLTBOLT
-
2044561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2144423-13K00 HOSE, FUEL TANK DRAINHOSE, FUEL TANK DRAIN
-
2209404-06433 CLAMP (L:80)CLAMP (L:80)
-
2309403-18307 CLAMPCLAMP
-
2409403-18409 CLAMPCLAMP
-
2544121-17K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
2644521-13K00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
2709113-06013 SCREW (6X16)SCREW (6X16)
-
2809320-06504 CUSHIONCUSHION
-
2944556-33H00 CUSHION, FUEL TANK BRACKETCUSHION, FUEL TANK BRACKET
-
3008319-3106A NUTNUT
-
3194429-13E00 CUSHIONCUSHION
-
3244572-13G00 FASTENERFASTENER
-
3309169-06016 WASHERWASHER
-
3444574-16G00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
-
3509352-11153-600 HOSE (11X15X600) (L:600->10)HOSE (11X15X600) (L:600->10)
