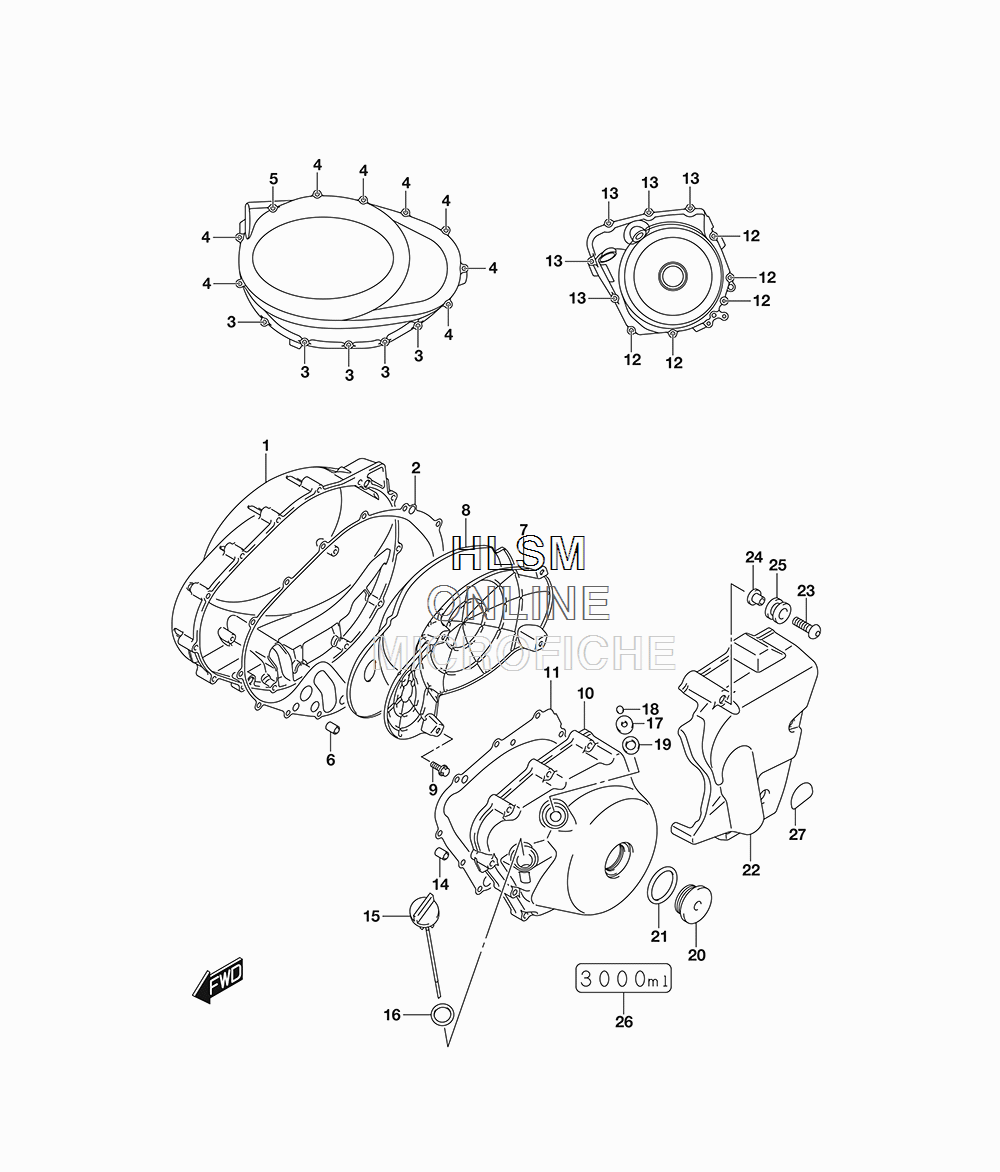

CRANKCASE COVER (CALIF.) для Suzuki VL1500B C90 - 2018 года выпуска
-
№АртикулНазвание
-
111341-40H20 COVER, CLUTCHCOVER, CLUTCH
-
211482-40H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
309103-06213 BOLT (6X30)BOLT (6X30)
-
409103-06215 BOLT (6X40)BOLT (6X40)
-
509103-06238 BOLT (6X50)BOLT (6X50)
-
604211-09189 PINPIN
-
711342-40H00 PLATE, CLUTCH COVERPLATE, CLUTCH COVER
-
811343-40H00 DAMPER, CLUTCH COVERDAMPER, CLUTCH COVER
-
901547-0612A BOLTBOLT
-
1011351-40H20 COVER, MAGNETOCOVER, MAGNETO
-
1111483-40H00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1209103-06213 BOLT (6X30)BOLT (6X30)
-
1309103-06215 BOLT (6X40)BOLT (6X40)
-
1404211-09149 PINPIN
-
1511971-09403 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
1609280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1709248-14005 PLUG (14X12)PLUG (14X12)
-
1809250-08012 CAP (OD:12)CAP (OD:12)
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2009259-36008 PLUG (36X10)PLUG (36X10)
-
2109280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2211361-40H20 COVER, SECONDARY DRIVE UNITCOVER, SECONDARY DRIVE UNIT
-
2309139-06028 SCREW (6X20)SCREW (6X20)
-
2409169-06062 WASHERWASHER
-
2509320-09501 CUSHIONCUSHION
-
2668322-40H00 NOTE, ENGINE OILNOTE, ENGINE OIL
-
2711362-40H00 PROTECTOR, DRIVE UNIT COVERPROTECTOR, DRIVE UNIT COVER
