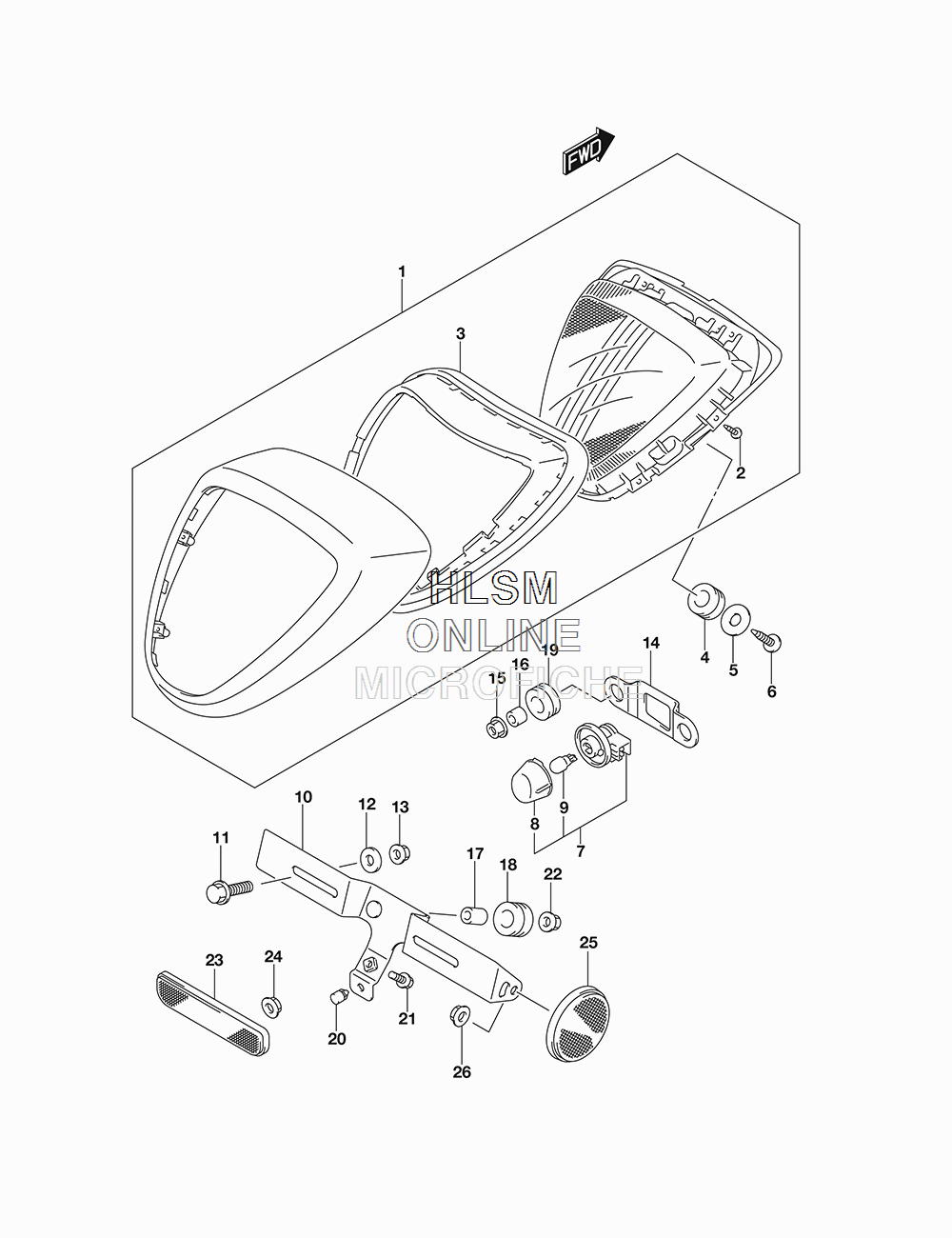

REAR COMBINATION LAMP (CALIF.) для Suzuki VL1500T C90T - 2018 года выпуска
-
№АртикулНазвание
-
135710-06J00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235623-41400 ...SCREW (3X12)...SCREW (3X12)
-
335713-06J00 ...RUBBER...RUBBER
-
409320-10067 CUSHIONCUSHION
-
509160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
603541-0512A SCREWSCREW
-
735910-14F01 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
835912-14F11 ...LENS...LENS
-
909471-12216 ...BULB (12V5W)...BULB (12V5W)
-
1035927-06J30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1109116-06168 BOLT (6X16)BOLT (6X16)
-
1209160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1308316-1006A NUTNUT
-
1435928-43H00 BRACKET, LICENSE LAMPBRACKET, LICENSE LAMP
-
1509159-05049 NUTNUT
-
1609180-05066 SPACER (5.5X9.5X10.5)SPACER (5.5X9.5X10.5)
-
1709180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1809320-10051 CUSHIONCUSHION
-
1909320-10054 CUSHIONCUSHION
-
2009321-06013 CUSHIONCUSHION
-
2101550-0625A BOLTBOLT
-
2208316-1006A NUTNUT
-
2335970-05H00 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
2408316-1005A NUTNUT
-
2535970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2608316-1005A NUTNUT
