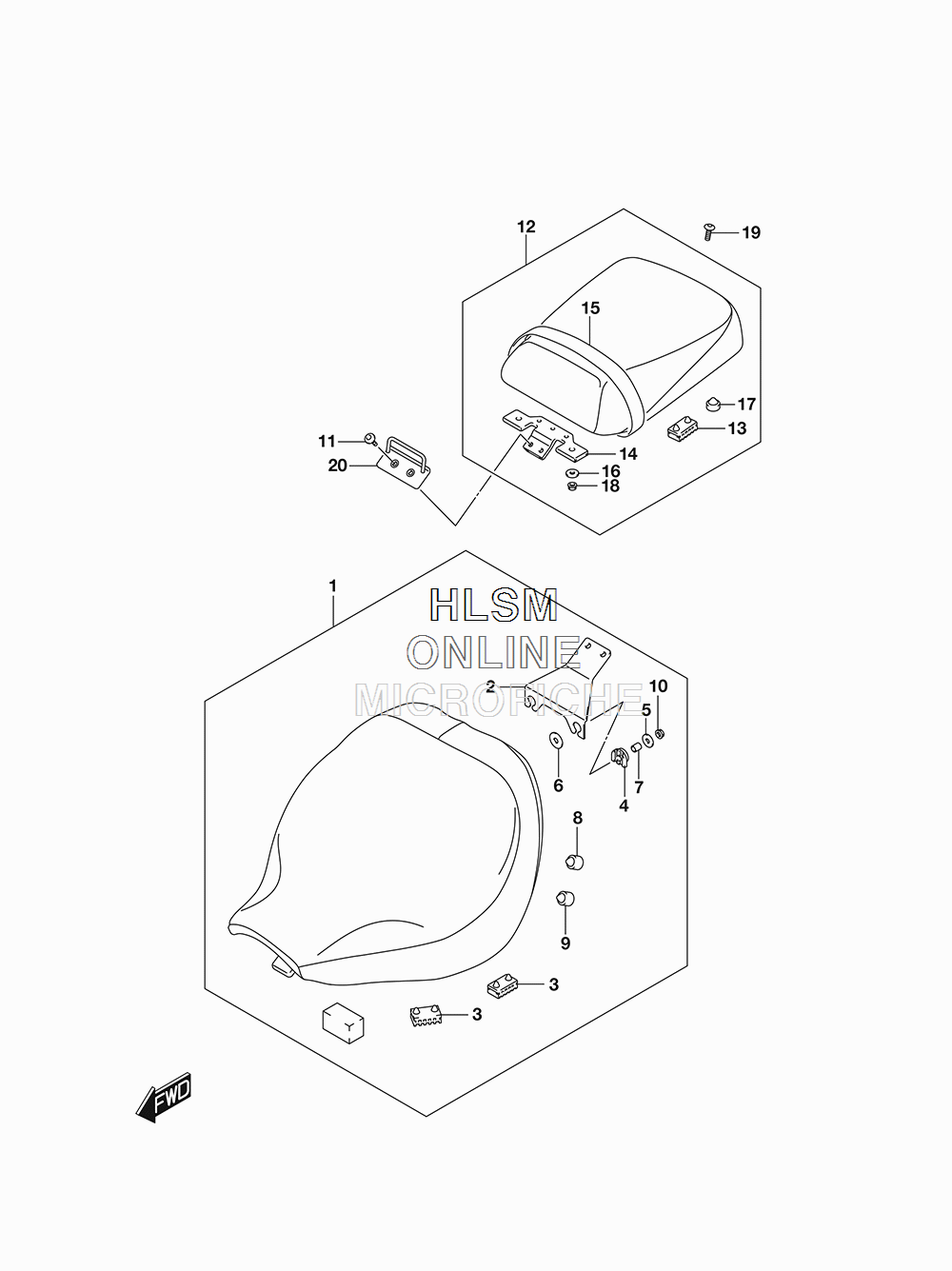

SEAT (CALIF.) для Suzuki VL800 C50 - 2018 года выпуска
-
№АртикулНазвание
-
145100-43H00-V4Y SEAT ASSY (V4Y - BLACK)SEAT ASSY (V4Y - BLACK)
-
245115-43H00 ...BRACKET, SEAT...BRACKET, SEAT
-
345149-31300 ...CUSHION...CUSHION
-
445215-43H00 ...CUSHION...CUSHION
-
509160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
609160-06501 ...WASHER (6.5X24X1.6)...WASHER (6.5X24X1.6)
-
709180-06288 ...SPACER (6.5X10X11)...SPACER (6.5X10X11)
-
809321-10002 ...CUSHION (11.5X22X20)...CUSHION (11.5X22X20)
-
909321-10033 ...CUSHION...CUSHION
-
1008316-1006A ...NUT...NUT
-
1109106-06064 BOLT (6X18)BOLT (6X18)
-
1245300-43H00-V4Y SEAT ASSY, PILLION (V4Y - BLACK)SEAT ASSY, PILLION (V4Y - BLACK)
-
1345147-12FA0 ...CUSHION...CUSHION
-
1445330-43H00 ...BRACKET, PILLION SEAT...BRACKET, PILLION SEAT
-
1545380-43H00-V4Y ...BAND, SEAT PILLION (V4Y - BLACK)...BAND, SEAT PILLION (V4Y - BLACK)
-
1609160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
1709321-10002 ...CUSHION (11.5X22X20)...CUSHION (11.5X22X20)
-
1808316-1006A ...NUT...NUT
-
1909106-08140 BOLT (8X16)BOLT (8X16)
-
2045210-43H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
