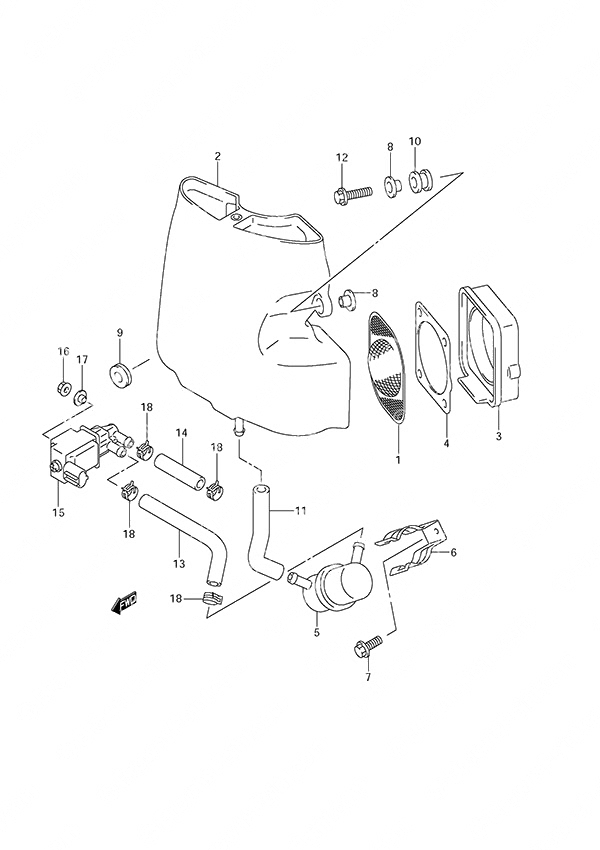

Fig. 9 - Silencer для Suzuki DF 40 - 2000 года выпуска
-
№АртикулНазвание
-
113710-87J00-000 Flame Arrester (NLA)Flame Arrester (NLA)
-
213810-87J00-000 SilencerSilencer
-
313851-87J01-000 Silencer SealSilencer Seal
-
413852-87J00-000 Silencer Seal PlateSilencer Seal Plate
-
518145-84380-000 IAC Valve SilencerIAC Valve Silencer
-
618146-84380-000 Silencer Clamp (NLA)Silencer Clamp (NLA)
-
701550-06127-000 Bolt (6x12)Bolt (6x12)
-
809169-06067-000 Washer (6.8x19x1.6)Washer (6.8x19x1.6)
-
909320-08013-000 GrommetGrommet
-
1009320-09059-000 CushionCushion
-
1144421-12FR0-000 Hose (6.5x11.5x600)
L:600->70Hose (6.5x11.5x600)
L:600->70 -
1201550-06257-000 BoltBolt
-
1344421-12FR0-000 Hose (6.5x11.5x600)
Silencer to IAC
L:600->110Hose (6.5x11.5x600)
Silencer to IAC
L:600->110 -
1444421-12FR0-000 Hose (6.5x11.5x600)
IAC to Throttle Body
L:600->60Hose (6.5x11.5x600)
IAC to Throttle Body
L:600->60 -
1518117-84380-000 IAC ValveIAC Valve
-
1608316-10067-000 NutNut
-
1709169-06081-000 WasherWasher
-
1809401-11415-000 ClipClip
