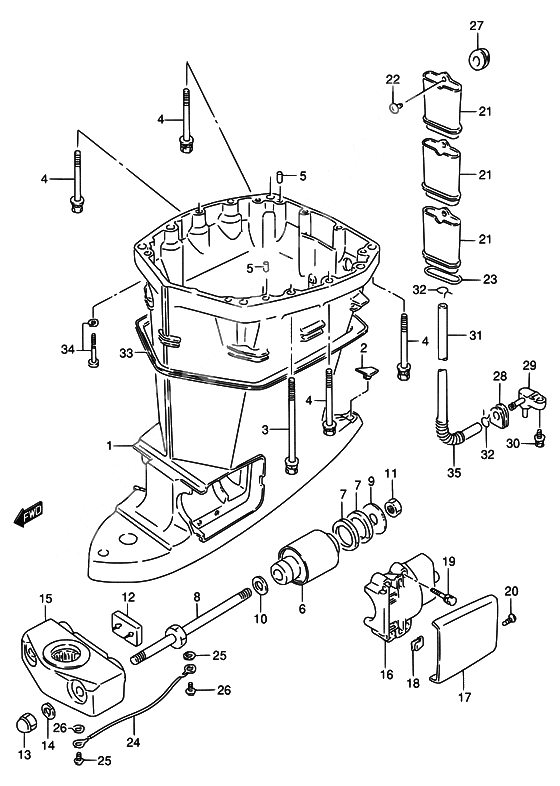

Drive shaft housing для Suzuki DT200T Y - 2000 года выпуска
-
№АртикулНазвание
-
152111-87D05-0ED Обойма торсионного вала
Housing, drive shaft (l)Обойма торсионного вала
Housing, drive shaft (l) -
152111-87D15-0ED Обойма торсионного вала
Housing, drive shaft (ul)Обойма торсионного вала
Housing, drive shaft (ul) -
252115-87D01-000 Крышка торсионного валаКрышка торсионного вала
-
309118-10039-000 Болт 10X130Болт 10X130
-
409118-10050-000 Болт,10X90
Bolt (l:90)Болт,10X90
Bolt (l:90) -
509202-08006-000 Pin
Pin, knockPin
Pin, knock -
654160-87D10-000 Опора нижняя
Mounting, lowerОпора нижняя
Mounting, lower -
754165-87D00-000 Демпфер заднего хода
Damper, reverse stopper lowerДемпфер заднего хода
Damper, reverse stopper lower -
754165-98J00-000 Демпфер заднего ходаДемпфер заднего хода
-
854166-87D10-000 Болт нижней опоры
Bolt, lower mountingDT150:131074~ DT175:131046~ DT200:131154~ DT225:131062~Болт нижней опоры
Bolt, lower mountingDT150:131074~ DT175:131046~ DT200:131154~ DT225:131062~ -
854166-87X00-000 Болт нижней опоры
Bolt, lower mountingБолт нижней опоры
Bolt, lower mounting -
909160-14039-000 Шайба 14.2X32XШайба 14.2X32X
-
1009160-14040-000 Шайба 14.2X50XШайба 14.2X50X
-
1009160-14066-000 Шайба 14.2X50XШайба 14.2X50X
-
1109140-14030-000 Гайка 14MMГайка 14MM
-
1254151-87D00-000 Опора нижняя
Mounting, lower thrustОпора нижняя
Mounting, lower thrust -
1309145-14001-000 ГайкаГайка
-
1409162-14004-000 Washer lock
Lock washerWasher lock
Lock washer -
1554200-87811-0ED Набор кронштейнов
Bracket set, lower mountingНабор кронштейнов
Bracket set, lower mounting -
1554211-87D02-0ED Кронштейн нижней опоры
Bracket, lower mountingDT150:131074~ DT175:131046~ DT200:131154~ DT225:131062~Кронштейн нижней опоры
Bracket, lower mountingDT150:131074~ DT175:131046~ DT200:131154~ DT225:131062~ -
1654221-87D01-0ED Крышка нижней опорыКрышка нижней опоры
-
1754222-87D00-35J Крышка нижней опорыКрышка нижней опоры
-
1754222-87D00-0ED Крышка нижней опорыКрышка нижней опоры
-
1854223-87D01-000 Пружина опорыПружина опоры
-
1909117-08056-000 Bolt
Bolt, spacer (8x40)Bolt
Bolt, spacer (8x40) -
1909117-08056-XC0 BoltBolt
-
2009126-06008-000 Винт 6X16 (SUSВинт 6X16 (SUS
-
2152123-87D00-000 Трубка переливаТрубка перелива
-
2209125-06069-000 Винт 6X12 (SUS)Винт 6X12 (SUS)
-
2309280-45004-000 O ring (d:2.4,id:44.7)O ring (d:2.4,id:44.7)
-
2436895-87D01-000 ПроводПровод
-
2509125-06063-000 Винт 6X10 (SUS)Винт 6X10 (SUS)
-
2609161-06120-000 ШайбаШайба
-
2752341-87D00-000 Втулка шланга дренажного
Grommet, drain hose no.1Втулка шланга дренажного
Grommet, drain hose no.1 -
2852342-87D00-000 Втулка шланга дренажногоВтулка шланга дренажного
-
2952343-87D01-000 Дренаж
Connector, drain hoseДренаж
Connector, drain hose -
3009118-06093-000 Bolt
Bolt (6x25)Bolt
Bolt (6x25) -
3109355-70125-00B Шланг топливный (соединитель - фильтр) (7
Hose, fuel (conn to filter) (7x12x2000)L:2000->60Шланг топливный (соединитель - фильтр) (7
Hose, fuel (conn to filter) (7x12x2000)L:2000->60 -
3109355-70125-600 Hose (7x12x600)
Hose, fuel (pump to separator)L:600->30Hose (7x12x600)
Hose, fuel (pump to separator)L:600->30 -
3144421-12FR0-000 Hose (7x12x600)Hose (7x12x600)
-
3209401-11403-000 Clip
ClipClip
Clip -
3361134-87D00-000 Уплотнение
Seal, engine holder coverУплотнение
Seal, engine holder cover -
3409117-08038-000 Болт 8X45Болт 8X45
-
3509440-13048-000 ПружинаПружина
