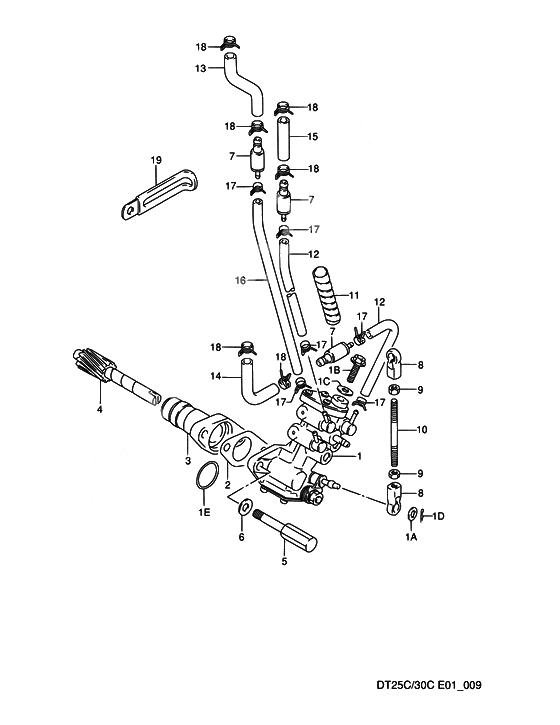

Oil pump для Suzuki DT25C Y - 2000 года выпуска
-
№АртикулНазвание
-
1E16198-87D00-000 Кольцо масляного насосаКольцо масляного насоса
-
1C16192-94600-000 Шайба воздушного вентилятораШайба воздушного вентилятора
-
1A13432-33100-000 ШайбаШайба
-
1D16195-87D00-000 ШтифтШтифт
-
116100-95D11-000 Насос масляныйНасос масляный
-
1B16191-94600-000 Болт воздушного вентилятораБолт воздушного вентилятора
-
216731-95520-000 Прокладка маслянного насоса
Gasket, oil pump retainerПрокладка маслянного насоса
Gasket, oil pump retainer -
316340-95D00-000 Стопор масляного насоса
Retainer, oil pumpСтопор масляного насоса
Retainer, oil pump -
416331-95D00-000 Шестерня маслянного насоса
Gear, oil pump drivenШестерня маслянного насоса
Gear, oil pump driven -
509119-06067-000 Bolt
Bolt (6x30)Bolt
Bolt (6x30) -
608322-01067-000 ШайбаШайба
-
716710-92E01-000 КлапанКлапан
-
819131-95502-000 Коннектор
Connector, oil pump no.2Коннектор
Connector, oil pump no.2 -
909140-05005-000 ГайкаГайка
-
1019136-94301-000 Штанга
Rod, clutch lever (l:60)Штанга
Rod, clutch lever (l:60) -
1116911-92E20-000 ПротекторПротектор
-
1209355-25705-600 Hose
Hose, out no.4 (2.5x7x300)L:600->00,MODEL:91~94Hose
Hose, out no.4 (2.5x7x300)L:600->00,MODEL:91~94 -
1209351-25703-600 Шланг 2.5X7X600
Hose, outlet no.1L:600->0,MODEL:88~90Шланг 2.5X7X600
Hose, outlet no.1L:600->0,MODEL:88~90 -
1309352-50903-600 Шланг 5X9X600
L:600->0Шланг 5X9X600
L:600->0 -
1409352-50903-600 Шланг 5X9X600
L:600->0Шланг 5X9X600
L:600->0 -
1509352-50903-600 Шланг 5X9X600
L:600->0Шланг 5X9X600
L:600->0 -
1609351-25703-600 Шланг 2.5X7X600
Hose, outlet no.1L:600->65,MODEL:88~90Шланг 2.5X7X600
Hose, outlet no.1L:600->65,MODEL:88~90 -
1609355-25705-600 Hose
Hose, out no.4 (2.5x7x300)L:600->65,MODEL:91~94Hose
Hose, out no.4 (2.5x7x300)L:600->65,MODEL:91~94 -
1709401-06405-000 ХомутХомут
-
1809401-08409-000 Clip
MODEL:88~90Clip
MODEL:88~90 -
1809401-08411-000 Clip
MODEL:91~94Clip
MODEL:91~94 -
1909404-08206-000 Clamp
ClampClamp
Clamp
