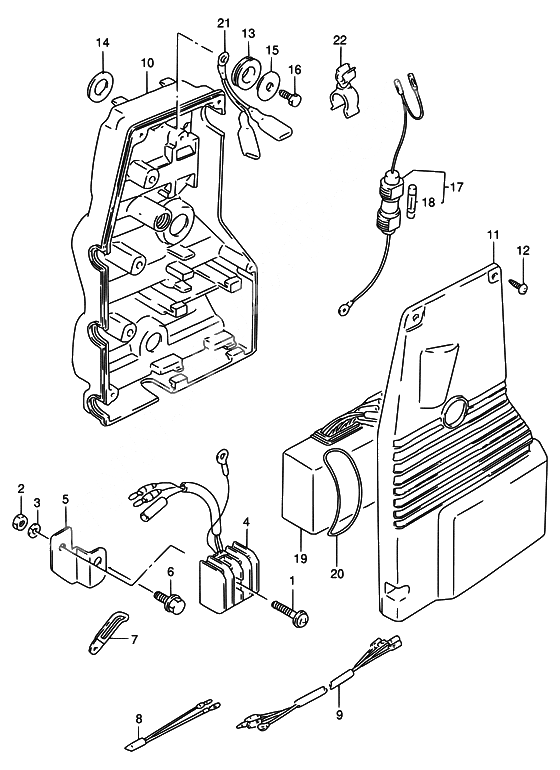

Equipo electrico для Suzuki DT60WML Y / DT60WQL Y / DT60WTL Y - 2000 года выпуска
-
№АртикулНазвание
-
102142-05257-000 Винт 5 X 20
ELECTRICAL STARTERВинт 5 X 20
ELECTRICAL STARTER -
208310-00057-000 Гайка
ELECTRICAL STARTERГайка
ELECTRICAL STARTER -
308321-01057-000 Пластина замка
ELECTRICAL STARTERПластина замка
ELECTRICAL STARTER -
308321-0105A-000 Пластина замкаПластина замка
-
432800-95D01-000 Rectifier assy
ELECTRICAL STARTERRectifier assy
ELECTRICAL STARTER -
532815-92D00-000 Кронштейн выпрямителя
Bracket, rectifierELECTRICAL STARTERКронштейн выпрямителя
Bracket, rectifierELECTRICAL STARTER -
602162-06127-000 Bolt
ELECTRICAL STARTERBolt
ELECTRICAL STARTER -
709404-08205-000 Clamp (l:62)
Clamp (l:62)ELECTRICAL STARTERClamp (l:62)
Clamp (l:62)ELECTRICAL STARTER -
836840-95D00-000 Lead,tachometerLead,tachometer
-
936810-94601-000 Провод
Lead assy, rectifierПровод
Lead assy, rectifier -
1032890-94720-000 Коробка электрическая
Holder, electric partsКоробка электрическая
Holder, electric parts -
1132891-94711-000 Крышка электрооборудования
Cover, parts holderКрышка электрооборудования
Cover, parts holder -
1203212-05163-000 БолтБолт
-
1203212-0516B-000 БолтБолт
-
1309320-12011-000 Валик
CushionВалик
Cushion -
1409160-12089-000 Шайба
Washer (12.5x26x1.6)Шайба
Washer (12.5x26x1.6) -
1509160-06054-000 Шайба
Washer (6.5x22x1.6)Шайба
Washer (6.5x22x1.6) -
1601550-06127-000 Bolt
Bolt, rectBolt
Bolt, rect -
1736740-94771-000 Корпус предохранителяКорпус предохранителя
-
1809481-25001-000 Fuse
Fuse, 25aFuse
Fuse, 25a -
1932900-94750-000 Блок CDI
C.d.i unitБлок CDI
C.d.i unit -
2009280-70005-000 Кольцо уплотнительное
Band (d:3.1 id:69.4)Кольцо уплотнительное
Band (d:3.1 id:69.4) -
2133445-94710-000 Провод катушки зажигания
Lead, ignition earthПровод катушки зажигания
Lead, ignition earth -
2209408-00045-000 Clamp
Holder, fuse caseClamp
Holder, fuse case
