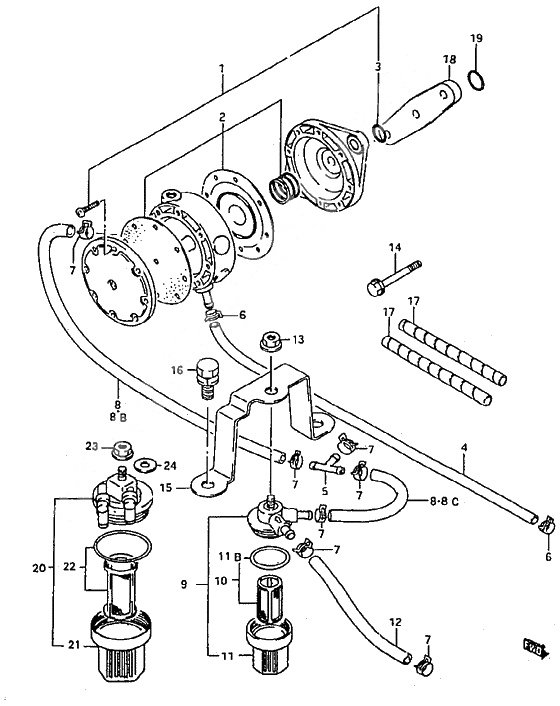

Fuel pump для Suzuki DT85TCY(J/Y) Y - 2000 года выпуска
-
№АртикулНазвание
-
115100-95602-000 Топливный насосТопливный насос
-
115100-9560V-000 Топливный насосТопливный насос
-
215100-72812-000 Комплект диафрагмыКомплект диафрагмы
-
215100-7281V-000 Комплект диафрагмыКомплект диафрагмы
-
315165-93010-000 Кольцо насоса топливного
O ringКольцо насоса топливного
O ring -
409352-50903-00B Hose
Hose, water (cooler to holder)Hose, fuel (pump->carb); L:2000->650Hose
Hose, water (cooler to holder)Hose, fuel (pump->carb); L:2000->650 -
509367-08005-000 Соединение 3-х стороннее
3 way (fltr to pump)Dt75c, 85cСоединение 3-х стороннее
3 way (fltr to pump)Dt75c, 85c -
609401-08411-000 ClipClip
-
709401-10409-000 (ca) clip
Dt75tc, 85tc(ca) clip
Dt75tc, 85tc -
8B09352-70113-600 Шланг топливный
Hose, fuel (3 way to pump); L:600->60, model:97-00Шланг топливный
Hose, fuel (3 way to pump); L:600->60, model:97-00 -
809352-70113-600 Шланг топливный
Hose, fuel (filter->pump); Dt75tc, 85tc, l:600->60Шланг топливный
Hose, fuel (filter->pump); Dt75tc, 85tc, l:600->60 -
8C09352-70113-600 Шланг топливный
Hose, fuel (filter to pump); Dt85wt, 85mq, l:600->110Шланг топливный
Hose, fuel (filter to pump); Dt85wt, 85mq, l:600->110 -
915410-95531-000 Фильтр топливныйФильтр топливный
-
915410-95540-000 Фильтр топливныйФильтр топливный
-
1015430-93411-000 Фильтры
Strainer setStrainer set;Фильтры
Strainer setStrainer set; -
11B15415-93400-000 Фильтр топливный
O ringФильтр топливный
O ring -
1115413-93400-000 Фильтр топливный
CupФильтр топливный
Cup -
1209352-70113-600 Шланг топливный
Hose, fuel (connector->filter); L:600->420Шланг топливный
Hose, fuel (connector->filter); L:600->420 -
1308316-10087-000 Nut (chrome)Nut (chrome)
-
1402162-06207-000 Болт
BoltBolt, fuel pump; Dt75tc, 85tcБолт
BoltBolt, fuel pump; Dt75tc, 85tc -
1401550-06407-000 Bolt (chrome)
Dt85wt, 85mq, 85qhBolt (chrome)
Dt85wt, 85mq, 85qh -
1515421-95513-000 Кронштейн топливного фильтра
Bracket, fuel filterКронштейн топливного фильтра
Bracket, fuel filter -
1609117-06040-000 Болт M6X15
Bolt (6x15)Bolt (6x15);Болт M6X15
Bolt (6x15)Bolt (6x15); -
1609117-06040-XC0 Болт M6X15Болт M6X15
-
1601570-06167-000 Bolt
Model:97-00Bolt
Model:97-00 -
1716911-92E20-000 Протектор
Protector; L:540->65Протектор
Protector; L:540->65 -
1815322-95600-000 Изолятор
Dt85wt, 85mq, 85qhИзолятор
Dt85wt, 85mq, 85qh -
1909280-12012-000 O ring
O ring (d:2.4 id:11.8)O ring (d:2.4 id:11.8); Dt85wt, 85mq, 85qhO ring
O ring (d:2.4 id:11.8)O ring (d:2.4 id:11.8); Dt85wt, 85mq, 85qh -
2115413-87D10-000 Стакан
Model:97-00Стакан
Model:97-00 -
2215430-87D10-000 Фильтр
Element set; Model:97-00Фильтр
Element set; Model:97-00 -
2308316-10087-000 Nut (chrome)
Model:97-00Nut (chrome)
Model:97-00 -
2408322-01087-000 Шайба
Lock washerWasher; Model:97-00Шайба
Lock washerWasher; Model:97-00
