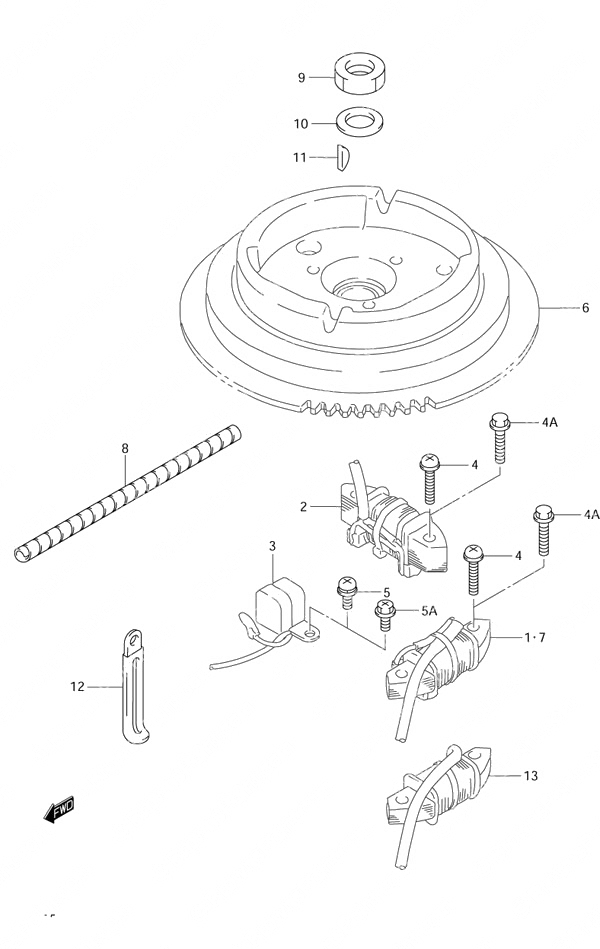

Fig. 21 - Magneto для Suzuki DF 15 - 2001 года выпуска
-
№АртикулНазвание
-
132130-93E00-000 Battery Charge Coil (NLA)Battery Charge Coil (NLA)
-
232140-93E00-000 Primary Coil (NLA)Primary Coil (NLA)
-
332160-93E10-000 Ignition Timing Coil (NLA)Ignition Timing Coil (NLA)
-
402112-36303-000 ScrewScrew
-
502112-36127-000 ScrewScrew
-
632102-93E00-000 Flywheel (NLA)Flywheel (NLA)
-
732130-93E00-000 Battery Charge Coil (NLA)
w/Manual StarterBattery Charge Coil (NLA)
w/Manual Starter -
833833-91J00-000 Tube (6x8x250)Tube (6x8x250)
-
909140-14008-000 Nut 14mmNut 14mm
-
1009160-15047-000 Washer (NLA)Washer (NLA)
-
1109420-04008-000 KeyKey
-
1209404-06432-000 Clamp (L:65)Clamp (L:65)
-
1332120-93E10-000 Battery Charge Coil (NLA)
OptionalBattery Charge Coil (NLA)
Optional
