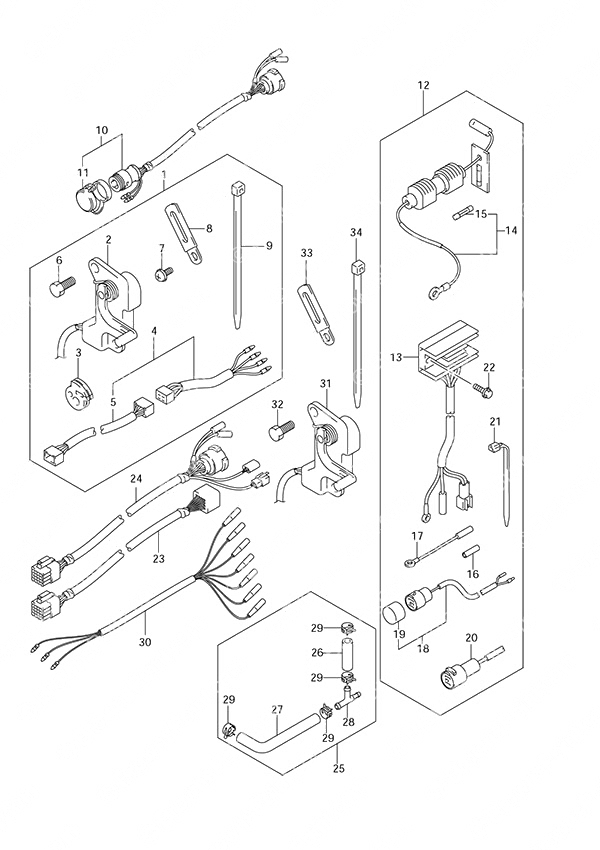

Fig. 47 - Opt: Trim Sender для Suzuki DF 30 - 2001 года выпуска
-
№АртикулНазвание
-
134804-94711-000 Trim Sender Set
4 Wire SenderTrim Sender Set
4 Wire Sender -
234801-94710-000 • Trim Sender
4 Wire Sender• Trim Sender
4 Wire Sender -
336658-95600-000 • Cable Grommet (NLA)• Cable Grommet (NLA)
-
436680-92E00-000 • Trim Meter Wire Assembly (NLA)• Trim Meter Wire Assembly (NLA)
-
536682-92E00-000 •• Wire Harness
4 Wire Sender•• Wire Harness
4 Wire Sender -
601550-06167-000 • Bolt (6x16)• Bolt (6x16)
-
709125-06063-000 • Screw (6x10)• Screw (6x10)
-
809404-06432-000 • Clamp (L:65)• Clamp (L:65)
-
9-109407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
9-209407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
10-136620-87D20-000 Wiring Harness Extension (NLA)
L:5000Wiring Harness Extension (NLA)
L:5000 -
10-236620-95302-000 Wiring Harness Extension (NLA)
L:2000Wiring Harness Extension (NLA)
L:2000 -
1136631-94300-000 • Cap• Cap
-
1239600-89J00-000 Lighting Receptacle Set (NLA)
Manual StarterLighting Receptacle Set (NLA)
Manual Starter -
1332800-89J00-000 • Rectifier & Regulator• Rectifier & Regulator
-
1436740-95253-000 • Fuse Case Assembly• Fuse Case Assembly
-
1509481-20001-000 •• 20 Amp Fuse•• 20 Amp Fuse
-
1637132-93700-000 • Wire Connector• Wire Connector
-
1737801-98300-000 • Lead (NLA)• Lead (NLA)
-
1839601-95D00-000 • Lighting Receptacle Assembly• Lighting Receptacle Assembly
-
1936634-93910-000 •• Connector Cap•• Connector Cap
-
2039602-93900-000 • Lamp Cord Plug Assembly• Lamp Cord Plug Assembly
-
2109407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
2201550-06207-000 • Bolt (6x20)• Bolt (6x20)
-
2534660-89J00-000 DF25/DF30 Water Pressure Gauge Install Kit (NLA)DF25/DF30 Water Pressure Gauge Install Kit (NLA)
-
2609352-50006-600 • Hose (5x9x600)
L:600->70• Hose (5x9x600)
L:600->70 -
2709352-50006-600 • Hose (5x9x600)
L:600->140• Hose (5x9x600)
L:600->140 -
2809367-06006-000 • 3 Way• 3 Way
-
2909401-08411-000 • Clip• Clip
