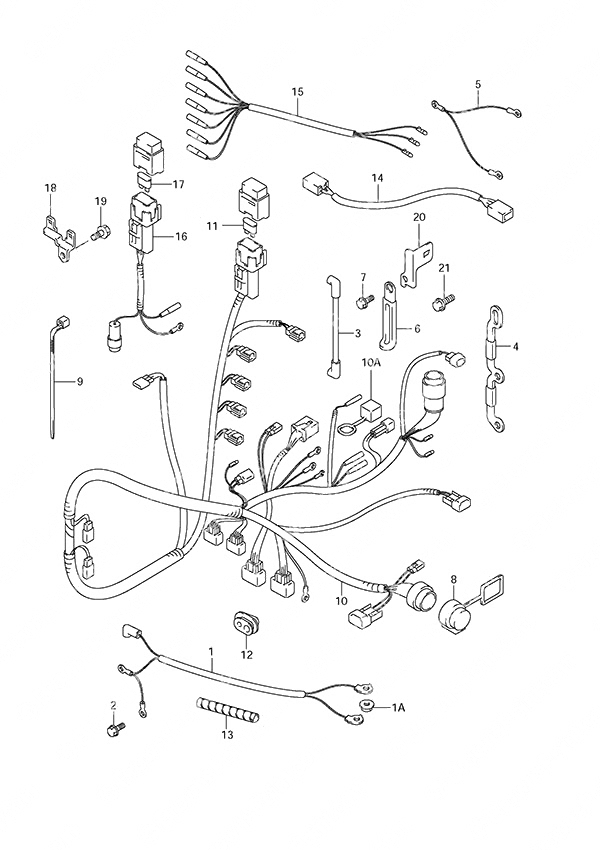

Fig. 32 - Harness для Suzuki DF 40 - 2001 года выпуска
-
№АртикулНазвание
-
133810-87J00-000 Starter Motor CableStarter Motor Cable
-
333820-87JV0-000 Plus Term to Relay CablePlus Term to Relay Cable
-
433831-99E01-000 PTT Relay PlatePTT Relay Plate
-
533832-94601-000 Trim Cable Assembly (NLA)Trim Cable Assembly (NLA)
-
609404-06435-000 Clamp (L:135)Clamp (L:135)
-
701550-06127-000 Bolt (6x12)Bolt (6x12)
-
833634-99E00-000 Service Connector CapService Connector Cap
-
10-136610-87J41-000 Wire Harness Assembly (NLA)
w/Power TiltWire Harness Assembly (NLA)
w/Power Tilt -
10-236610-87J61-000 Wire Harness Assembly
w/Tiller HandleWire Harness Assembly
w/Tiller Handle -
1109481-30501-000 • 30 Amp Fuse• 30 Amp Fuse
-
12-136656-87D11-000 Cable Grommet
w/Power TiltCable Grommet
w/Power Tilt -
12-236656-87D30-000 Cable Grommet (NLA)
w/Tiller HandleCable Grommet (NLA)
w/Tiller Handle -
1436682-92E00-000 Wire Harness
For Monitor GaugeWire Harness
For Monitor Gauge -
1536630-92E00-000 Instrument Wire AssemblyInstrument Wire Assembly
