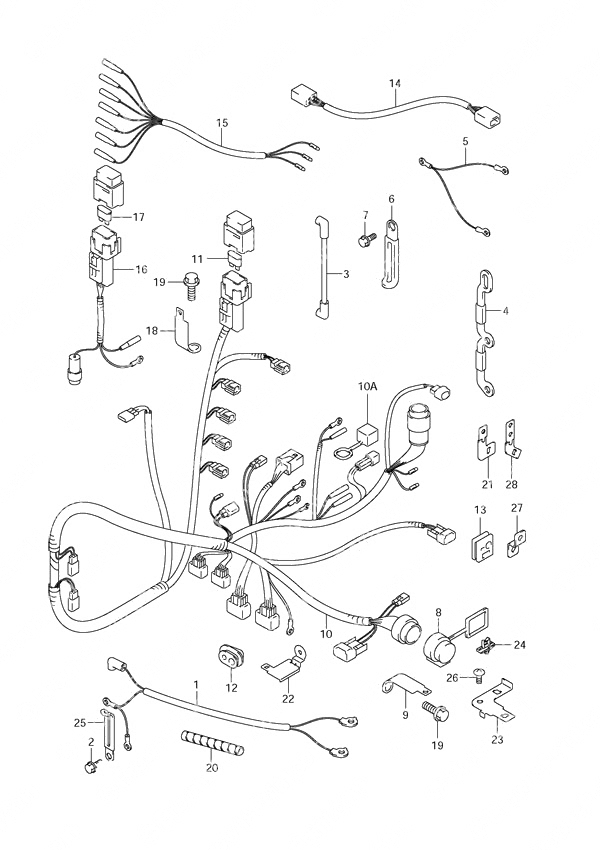

Fig. 33 - Harness для Suzuki DF 60 - 2001 года выпуска
-
№АртикулНазвание
-
133810-99E10-000 Starter Motor CableStarter Motor Cable
-
201550-08167-000 Bolt (8x16)Bolt (8x16)
-
333820-99E00-000 Starter Sub Cable Assy (NLA)Starter Sub Cable Assy (NLA)
-
433831-99E01-000 PTT Relay PlatePTT Relay Plate
-
533832-94601-000 Trim Cable Assembly (NLA)Trim Cable Assembly (NLA)
-
629404-93J11-000 Clamp (L:65)Clamp (L:65)
-
701550-06107-000 BoltBolt
-
833634-99E00-000 Service Connector CapService Connector Cap
-
936745-99E00-000 Connector Bracket (NLA)Connector Bracket (NLA)
-
1036610-99E50-000 Wire Harness AssemblyWire Harness Assembly
-
1109481-30501-000 • 30 Amp Fuse• 30 Amp Fuse
-
1236656-99E10-000 Cable GrommetCable Grommet
-
13-136658-99E01-000 Cable GrommetCable Grommet
-
13-236658-99E10-000 Cable Grommet
w/Tiller HandleCable Grommet
w/Tiller Handle -
1436682-92E00-000 Wire HarnessWire Harness
-
1536630-92E00-000 Instrument Wire AssemblyInstrument Wire Assembly
-
1636740-99E00-000 Fuse Case Assembly (NLA)Fuse Case Assembly (NLA)
-
1709481-30101-000 • 30 Amp Fuse• 30 Amp Fuse
-
1836745-99E00-000 Connector Bracket (NLA)Connector Bracket (NLA)
-
1901550-06127-000 Bolt (6x12)Bolt (6x12)
-
2033834-99E10-000 Hose Protector (NLA)Hose Protector (NLA)
