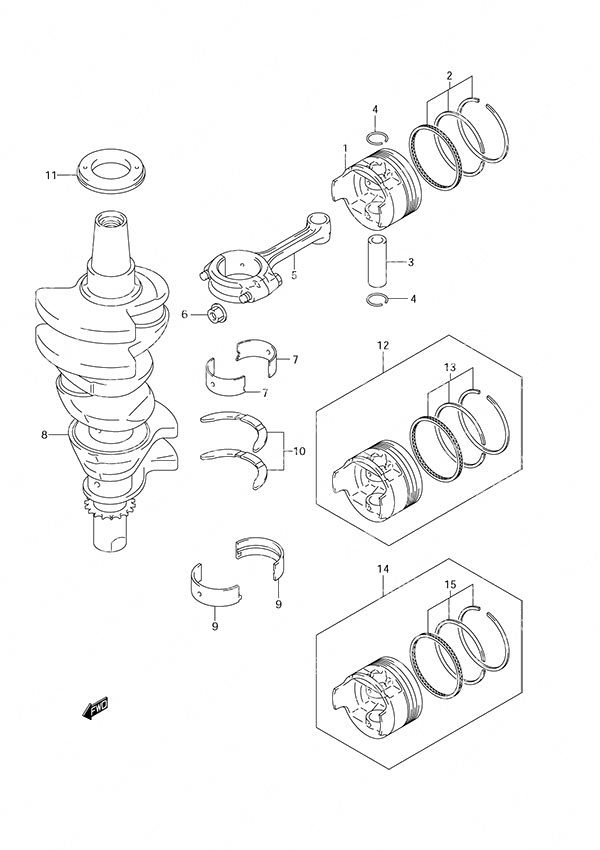

Fig. 4 - Crankshaft для Suzuki DF 25 - 2002 года выпуска
-
№АртикулНазвание
-
112111-89J00-000 Piston (NLA)Piston (NLA)
-
212140-51F10-000 Piston Ring SetPiston Ring Set
-
312151-60D00-000 Piston PinPiston Pin
-
409381-16001-000 Piston Pin CirclipPiston Pin Circlip
-
512160-60D02-000 Connecting Rod Assembly (NLA)Connecting Rod Assembly (NLA)
-
609159-08033-000 • Nut• Nut
-
7-112181-81401-0A0 Connecting Rod BearingConnecting Rod Bearing
-
7-212181-81401-025 Connecting Rod Bearing (US:0.25) (NLA)
OptionalConnecting Rod Bearing (US:0.25) (NLA)
Optional -
812220-89J01-000 Crankshaft Assembly (NLA)Crankshaft Assembly (NLA)
-
9-112341-89J00-0A0 Crankshaft Bearing Set (Green) (NLA)Crankshaft Bearing Set (Green) (NLA)
-
9-212341-89J00-0B0 Crankshaft Bearing Set (Black) (NLA)Crankshaft Bearing Set (Black) (NLA)
-
9-312341-89J00-0C0 Crankshaft Bearing Set (NON)Crankshaft Bearing Set (NON)
-
9-412341-89J00-0D0 Crankshaft Bearing Set (Yellow) (NLA)Crankshaft Bearing Set (Yellow) (NLA)
-
9-512341-89J00-0E0 Crankshaft Bearing Set (Blue) (NLA)Crankshaft Bearing Set (Blue) (NLA)
-
9-612341-89J00-025 Crankshaft Bearing Set (US:0.25)
OptionalCrankshaft Bearing Set (US:0.25)
Optional -
9-712341-89J00-050 Crankshaft Bearing Set (US:0.50) (NLA)
OptionalCrankshaft Bearing Set (US:0.50) (NLA)
Optional -
1012300-78830-000 Crankshaft Thrust BearingCrankshaft Thrust Bearing
-
1109283-32043-000 Oil SealOil Seal
-
1212100-89J00-025 Piston & Ring Set (OS:0.25) (NLA)
OptionalPiston & Ring Set (OS:0.25) (NLA)
Optional -
1312140-51F10-025 • Piston Ring Set (OS:0.25) (NLA)
Optional• Piston Ring Set (OS:0.25) (NLA)
Optional -
1412100-89J00-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1512140-51F10-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
