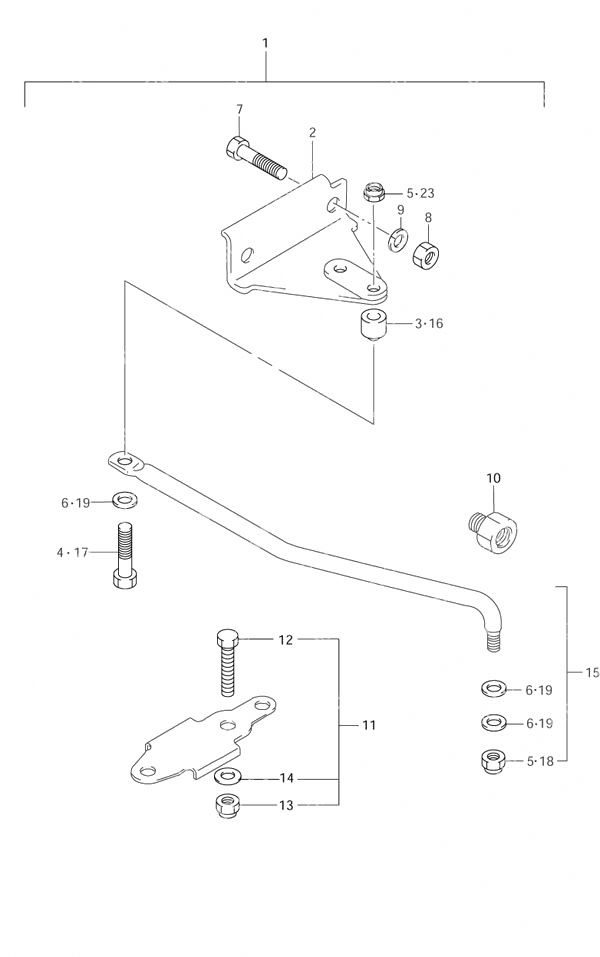

Fig. 51 - Opt: Drag Link для Suzuki DF 9.9 - 2002 года выпуска
-
№АртикулНазвание
-
167701-93E12-000 Drag Link Assembly
w/Remote Control STDDrag Link Assembly
w/Remote Control STD -
367721-99E10-000 • Drag Link Spacer (NLA)
w/Remote Control STD• Drag Link Spacer (NLA)
w/Remote Control STD -
467725-99E10-000 • Drag Link Bolt
w/Remote Control STD• Drag Link Bolt
w/Remote Control STD -
567726-99E00-000 • Lock Nut
w/Remote Control STD• Lock Nut
w/Remote Control STD -
667728-99E00-000 • Washer
w/Remote Control STD• Washer
w/Remote Control STD -
1041141-89E00-000 Steering Cable AttachmentSteering Cable Attachment
-
1167720-93E00-000 Steering Bracket AttachmentSteering Bracket Attachment
-
1267725-93E00-000 • Steering Bracket Bolt (NLA)• Steering Bracket Bolt (NLA)
-
1367726-99E00-000 • Lock Nut• Lock Nut
-
1467728-99E00-000 • Washer• Washer
-
1567701-93E12-000 Drag Link AssemblyDrag Link Assembly
-
1667721-99E10-000 • Drag Link Spacer (NLA)• Drag Link Spacer (NLA)
-
1767725-99E10-000 • Drag Link Bolt• Drag Link Bolt
-
1867726-99E00-000 • Lock Nut• Lock Nut
-
1967728-99E00-000 • Washer• Washer
