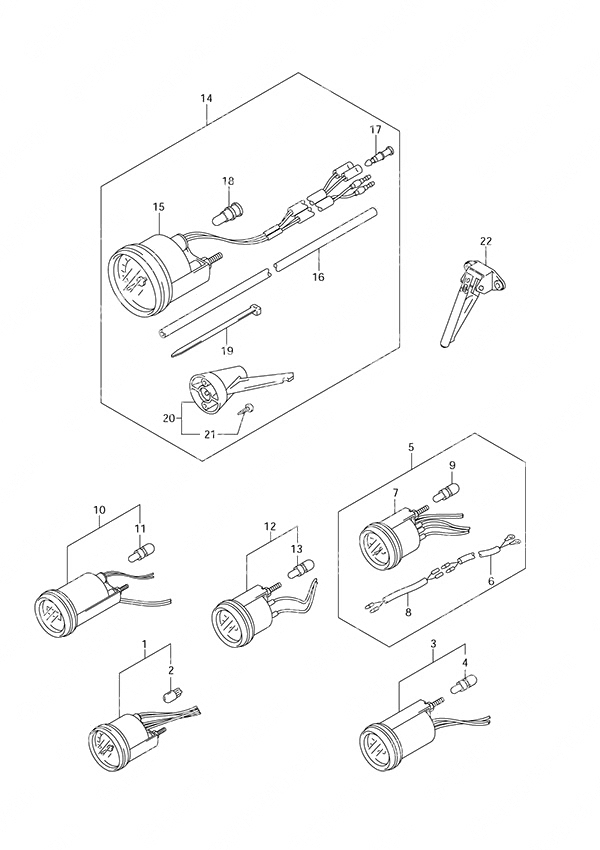

Fig. 46 - Opt: Meter для Suzuki DF 25 - 2003 года выпуска
-
№АртикулНазвание
-
134200-92E02-000 Tachometer (NLA)Tachometer (NLA)
-
209471-12179-000 • Bulb (Red)• Bulb (Red)
-
334800-90J02-000 Trim Meter Assembly (NLA)
2 Wire SenderTrim Meter Assembly (NLA)
2 Wire Sender -
409471-12180-000 • Bulb (NLA)• Bulb (NLA)
-
534300-92E01-000 Fuel Gauge Set (NLA)Fuel Gauge Set (NLA)
-
634310-92E00-000 • Fuel Gauge Lead (NLA)• Fuel Gauge Lead (NLA)
-
734320-92E01-000 • Fuel Gauge (NLA)• Fuel Gauge (NLA)
-
834360-92E00-000 • Adapter Harness (NLA)• Adapter Harness (NLA)
-
909471-12180-000 • Bulb (NLA)• Bulb (NLA)
-
1034500-92E00-000 Hour Meter (NLA)Hour Meter (NLA)
-
1109471-12180-000 • Bulb (NLA)• Bulb (NLA)
-
1234600-92E00-000 Volt Meter (NLA)Volt Meter (NLA)
-
1309471-12180-000 • Bulb (NLA)• Bulb (NLA)
-
14-134102-92E10-000 Speedometer Set (50mph) (NLA)Speedometer Set (50mph) (NLA)
-
14-234102-92E20-000 Speedometer Set (45knt)Speedometer Set (45knt)
-
15-134100-92E10-000 • Speedometer (50mph) (NLA)• Speedometer (50mph) (NLA)
-
15-234100-92E20-000 • Speedometer (45kt) (NLA)• Speedometer (45kt) (NLA)
-
1634191-92E00-000 • Water Pressure Tubing• Water Pressure Tubing
-
1736615-96300-000 • Resin Terminal• Resin Terminal
-
1809471-12179-000 • Bulb (Red)• Bulb (Red)
-
1909407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
2034190-95500-000 • Speedometer Sensor (NLA)• Speedometer Sensor (NLA)
-
2103112-06303-000 •• Screw (NLA)•• Screw (NLA)
-
2234190-87D00-000 Speedometer SensorSpeedometer Sensor
