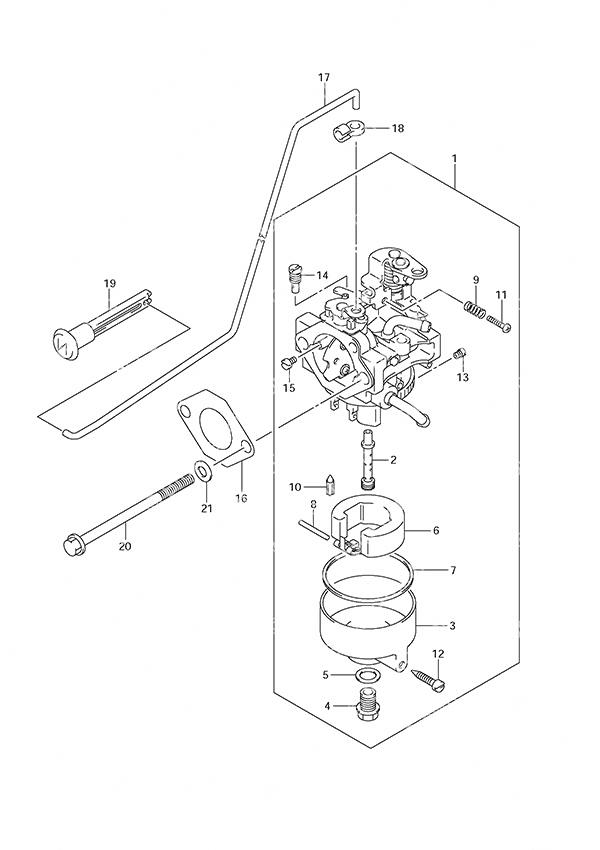

Fig. 5 - Carburetor для Suzuki DF 4 - 2003 года выпуска
-
№АртикулНазвание
-
113200-91J30-000 Carburetor AssemblyCarburetor Assembly
-
213236-91J00-000 • Main Nozzle• Main Nozzle
-
313245-986A0-000 • Float Chamber• Float Chamber
-
413247-986A0-000 • Drain Plug• Drain Plug
-
513249-90100-000 • Drain Plug Gasket• Drain Plug Gasket
-
613250-87420-000 • Carburetor Float• Carburetor Float
-
713251-87400-000 • Float Chamber Gasket• Float Chamber Gasket
-
813254-98300-000 • Float Pin• Float Pin
-
913268-92910-000 • Spring• Spring
-
1013371-91J00-000 • Needle Valve• Needle Valve
-
1113534-98900-000 • Screw• Screw
-
1213279-90000-000 • Adjuster• Adjuster
-
13-109491-77008-000 • Main Jet #77.5• Main Jet #77.5
-
13-209492-75005-000 • Main Jet #75
High Altitude Spec• Main Jet #75
High Altitude Spec -
1409492-35026-000 • Pilot Jet #35• Pilot Jet #35
-
1509493-18001-000 • Air Jet #0.9 (NLA)• Air Jet #0.9 (NLA)
-
1613125-91J00-000 Carburetor GasketCarburetor Gasket
-
1713413-91J00-000 Choke RodChoke Rod
-
1813436-91J00-000 Choke Rod ConnectorChoke Rod Connector
-
1913631-91J00-000 Choke KnobChoke Knob
-
2001547-0680B-000 BoltBolt
-
2108322-01067-000 Washer (6.5x13x1.0)Washer (6.5x13x1.0)
