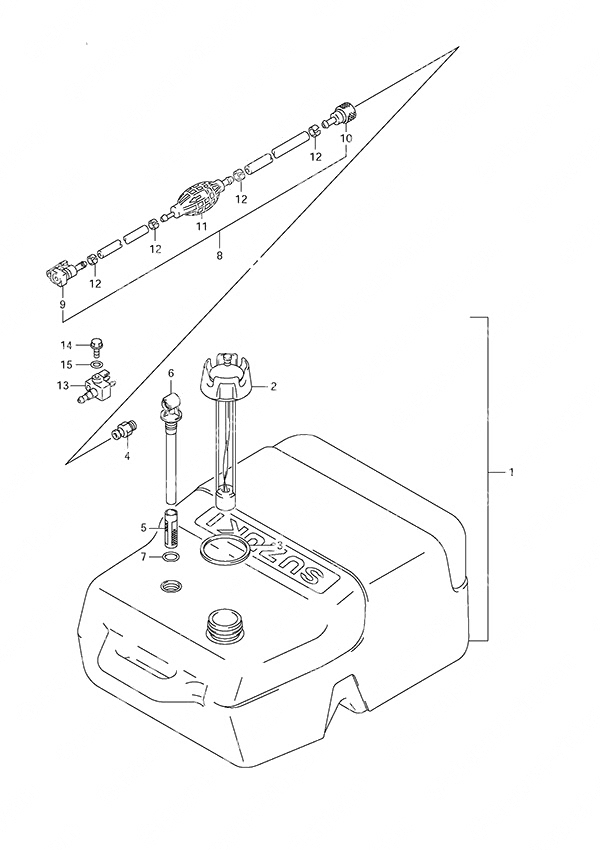

Fig. 52 - Fuel Tank для Suzuki DF 40 - 2003 года выпуска
-
№АртикулНазвание
-
165000-95D01-000 6 Gallon Suzuki Fuel Tank (NLA)6 Gallon Suzuki Fuel Tank (NLA)
-
265520-95D00-000 • Fuel Tank Cap Assembly (NLA)• Fuel Tank Cap Assembly (NLA)
-
365561-95D00-000 • Fuel Tank Cap Gasket• Fuel Tank Cap Gasket
-
465740-95D01-000 • Fuel Connector (13mm)• Fuel Connector (13mm)
-
565831-95D00-000 • Fuel Outlet Filter• Fuel Outlet Filter
-
665890-95D00-000 • Outlet Assembly• Outlet Assembly
-
765892-95D00-000 • Fuel Outlet O-Ring• Fuel Outlet O-Ring
-
865700-87J28-000 Fuel HoseFuel Hose
-
965750-87J11-000 • Fuel Hose Connector• Fuel Hose Connector
-
1065750-95501-000 • Fuel Hose Connector (13mm)• Fuel Hose Connector (13mm)
-
1165770-95505-000 • Squeeze Pump (NLA)• Squeeze Pump (NLA)
-
1265781-98500-000 • Hose Clip• Hose Clip
-
1365720-986L0-000 Fuel ConnectorFuel Connector
-
1409103-06237-000 Bolt (6x12.5)Bolt (6x12.5)
-
1509160-06085-000 Washer (6.5x15x1.0)Washer (6.5x15x1.0)
