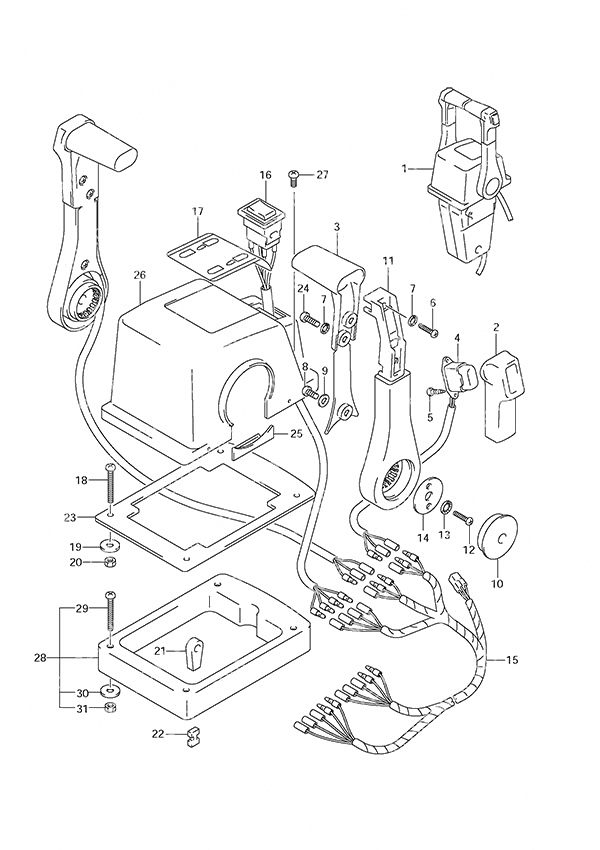

Fig. 68 - Opt: Top Mount Dual (1) для Suzuki DF 40 - 2006 года выпуска
-
№АртикулНазвание
-
167200-88L11-000 Dual Binnacle Control BoxDual Binnacle Control Box
-
267261-93J00-000 • Grip No 1• Grip No 1
-
367263-93J00-000 • Grip No 2• Grip No 2
-
437850-93J10-000 • PTT Switch Assembly• PTT Switch Assembly
-
567295-92E10-000 • Screw (3x12)• Screw (3x12)
-
667296-88D10-000 • Screw (5x16)• Screw (5x16)
-
767288-92E20-000 • Washer• Washer
-
867296-92E70-000 • Screw• Screw
-
967288-92E40-000 • Washer• Washer
-
1067257-92E00-000 • Lever Cap• Lever Cap
-
1167251-93J00-000 • Handle Lever• Handle Lever
-
1267296-92E60-000 • Screw• Screw
-
1367288-92E30-000 • Washer• Washer
-
1467253-92E00-000 • Washer• Washer
-
1536890-93J10-000 • Wire Harness• Wire Harness
-
1637220-92E00-000 • Mode Changing Switch Assembly• Mode Changing Switch Assembly
-
1767282-93J00-000 • Decal• Decal
-
1867296-92E30-000 • Screw• Screw
-
1909160-05024-000 • Washer (5.5x16x1.5)• Washer (5.5x16x1.5)
-
2067287-92E00-000 • Nut• Nut
-
2167275-95600-000 • Cable End• Cable End
-
2267273-95600-000 • Spacer• Spacer
-
2367273-92E10-000 • Grommet (NLA)• Grommet (NLA)
-
2467295-92E00-000 • Screw• Screw
-
2567271-92E00-000 • Cover• Cover
-
2667211-93J10-000 • Top Binnacle Cover• Top Binnacle Cover
-
2767296-92E70-000 • Screw• Screw
-
2867500-93J10-000 Dual Binnacle Box SpacerDual Binnacle Box Spacer
-
2909125-05135-000 • Screw (5x65)• Screw (5x65)
-
3009160-05029-000 • Washer (5.5x10x0.8)• Washer (5.5x10x0.8)
-
3109140-05005-000 • Nut• Nut
