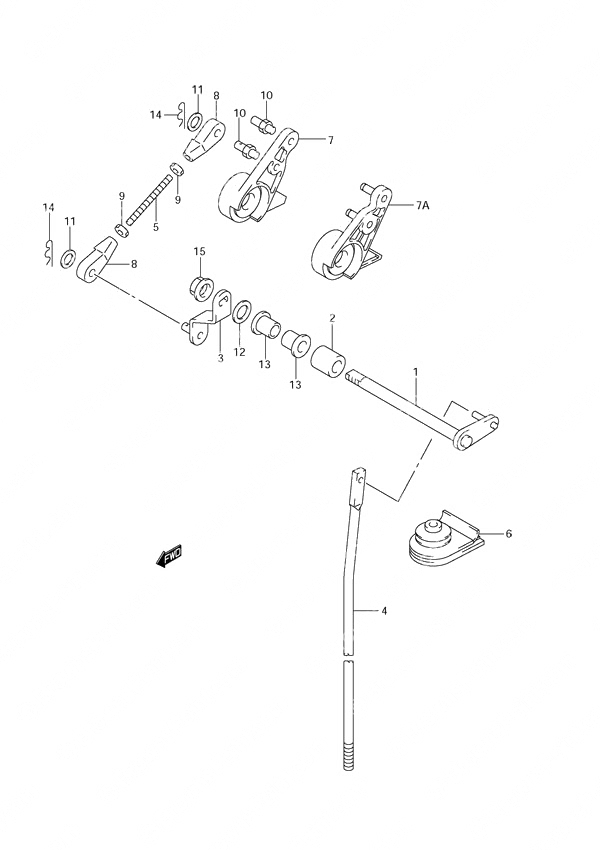

Fig. 25 - Clutch Shaft для Suzuki DF 60 - 2007 года выпуска
-
№АртикулНазвание
-
121210-99E00-000 Clutch ShaftClutch Shaft
-
221216-99E00-000 Clutch Shaft SpacerClutch Shaft Spacer
-
321230-99E00-000 Clutch Shaft Arm (NLA)Clutch Shaft Arm (NLA)
-
423111-99E00-000 Clutch RodClutch Rod
-
523115-99E00-000 Clutch Lever LinkClutch Lever Link
-
623131-99E00-000 Clutch Rod Boot (NLA)Clutch Rod Boot (NLA)
-
7A23210-99E10-000 Clutch Control LeverClutch Control Lever
-
867467-89J01-000 Cable ConnectorCable Connector
-
967471-99E00-000 Remote Control NutRemote Control Nut
-
1109160-06055-000 Washer (7x12x1.0)Washer (7x12x1.0)
-
1209160-10082-000 Washer (10.5x19x2.0)Washer (10.5x19x2.0)
-
1309306-10001-000 BushingBushing
-
1409385-06012-000 ClipClip
-
1508319-31107-000 NutNut
