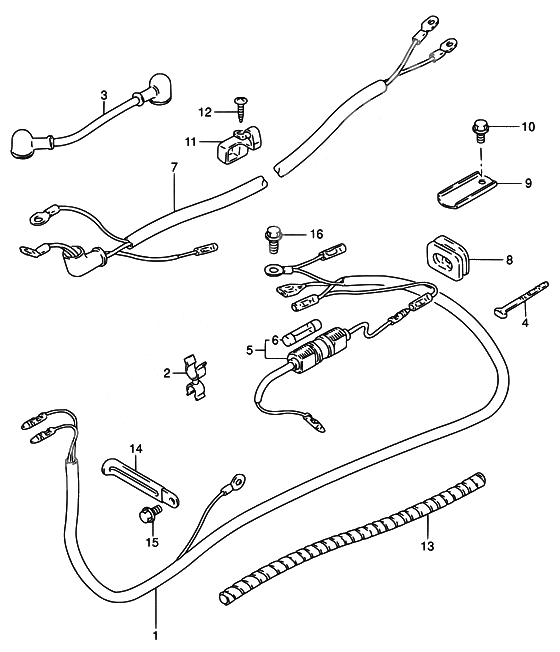

Harness для Suzuki DT30L K8 - 2008 года выпуска

Все узлы модели:

• Cylinder
  NOTE : COLOR : 0ED (GRAY) 0EP (BLACK)
• Crankshaft
• Inlet case
  (DT25/30), NOTE : REFER TO FIG.4(B- 5) FOR DT25K
• Inlet case
  (DT25K), NOTE : COLOR : 0ED (GRAY)
• Oil seal housing
• Exhaust tube
• Fuel pump
  (DT25/30), NOTE : REFER TO FIG.10(B-12) FOR DT25K
• Fuel pump
  (DT25K)
• Water pump
  NOTE : COLOR : 0ED (GRAY) 0EP(BLACK)
• Throttle control
  (DT25/30), NOTE : REFER TO FIG.14(C- 6) FOR DT25/30:E40 REFER TO FIG.15(C- 7) FOR DT25K
• Throttle control
  (DT25/30:E40), NOTE : REFER TO FIG.15(C- 7) FOR DT25K
• Throttle control
  (DT25K)
• Opt : gasket set
• Clamp bracket
• Swivel bracket
• Drive shaft housing
  NOTE : COLOR : 0ED (GRAY) 0EP (BLACK)
• Under cover
• Engine cover
  (MODEL:01), NOTE : REFER TO FIG.29 (F- 5) FOR MODEL:02~10 REFER TO FIG.29A(F- 6) FOR DT25K:010001~,DT30:010902~
• Engine cover
  (MODEL:02~10), NOTE : REFER TO FIG.29A(F- 6) FOR DT25K:010001~,DT30:010902~
• Engine cover
  (DT25K:010001~,DT30:010902~)
• Remote control
  (DT30R)
• Opt:remocon parts set
  NOTE : COLOR : 0ED (GRAY), 0EP (BLACK) REFER TO FIG.41(G-10) FOR DT25K E13
• Opt:remocon parts set
  (DT25K E13), NOTE : COLOR : 0ED (GRAY)
• Optional : remote control
  NOTE : * 67200-93991-0ED INCLUDES REF.NO.2~30 REFER TO FIG.43(H- 4) FOR MODEL:04~
• Optional : remote control
  (MODEL:04~)
• Opt:drag link
• Clutch
• Transmission
  NOTE : COLOR : 0ED (GRAY) 0EP (BLACK)
• Gear case
• Starting motor
• Magneto
• Magneto
• • Harness
• Opt:electrical
  (MANUAL STARTER)
• Opt:electrical
  (ELECTRIC STARTER)
• Opt:regulator
• Opt:meter
• Opt:switch panel
• Carburetor assy
  (DT25/30), NOTE : REFER TO FIG.6(B- 7) FOR DT25K
• Carburetor assy
  (DT25K)
• Handle bars
• Starter assy recoil
  NOTE : COLOR : 0ED (GRAY) 0EP (BLACK)
• Switch volt change
• Tank fuel
  (STEEL)
• Tank fuel
  (RESIN,12L)
• Tank fuel
  (RESIN,25L)
