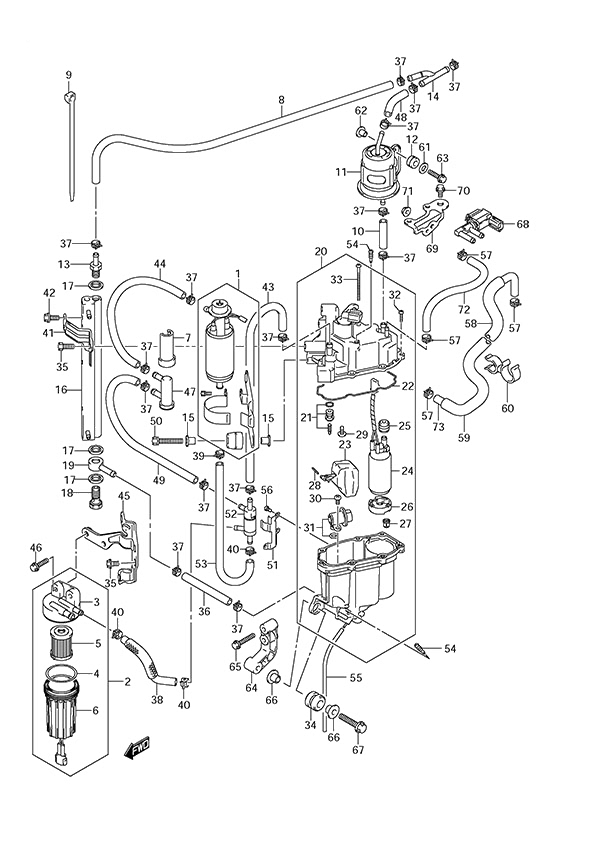

Fig. 9A- Fuel Pump/Fuel Vapor Separator (S/N 110001 & Newer) для Suzuki DF 300 - 2009 года выпуска
-
№АртикулНазвание
-
115100-94900-000 Fuel Pump Assembly
Low PressureFuel Pump Assembly
Low Pressure -
215410-93J10-000 Replaced by 15410-93J11
Low PressureReplaced by 15410-93J11
Low Pressure -
315411-93J10-000 • Fuel Filter Cap• Fuel Filter Cap
-
415415-93J10-000 • Fuel Filter O-Ring• Fuel Filter O-Ring
-
515412-93J10-000 • Fuel Filter• Fuel Filter
-
615413-93J10-000 • Fuel Filter Cup• Fuel Filter Cup
-
715644-93J00-000 Fuel Filter CoverFuel Filter Cover
-
815633-93J20-000 Fuel Hose (H)
High PressureFuel Hose (H)
High Pressure -
915646-93J00-000 Fuel Filter ClampFuel Filter Clamp
-
1009343-75001-600 Hose (7.5x13.5x600)
L:600->65Hose (7.5x13.5x600)
L:600->65 -
1115440-93J00-000 H/P Fuel FilterH/P Fuel Filter
-
1209320-08501-000 CushionCushion
-
1315773-90J00-000 Fuel Hose Union
High PressureFuel Hose Union
High Pressure -
1415830-93J00-000 3 Way Union (NLA)3 Way Union (NLA)
-
1509169-06062-000 Washer (6.3x17x1.6)Washer (6.3x17x1.6)
-
1615770-93J00-000 Fuel CoolerFuel Cooler
-
1709168-12013-000 GasketGasket
-
1809360-12008-000 Union BoltUnion Bolt
-
1909363-08004-000 UnionUnion
-
2015600-98J00-000 Fuel Vapor Separator AssemblyFuel Vapor Separator Assembly
-
2113370-93J00-000 • Replaced by 13370-93J10• Replaced by 13370-93J10
-
2215626-93J00-000 • Separator Gasket• Separator Gasket
-
2315650-93J00-000 • Float Assembly• Float Assembly
-
2415200-98J00-000 • Fuel Pump Assembly
High Pressure• Fuel Pump Assembly
High Pressure -
2515647-93J00-000 • Fuel Pump Bushing• Fuel Pump Bushing
-
2615641-90J00-000 • Fuel Pump Spacer• Fuel Pump Spacer
-
2715642-90J00-000 • Fuel Pump Filter• Fuel Pump Filter
-
2815654-99E00-000 • Float Pin• Float Pin
-
2902142-0408B-000 • Screw (4x8)• Screw (4x8)
-
3002112-05107-000 • Screw• Screw
-
3115760-93J01-000 • Fuel Pressure Regulator• Fuel Pressure Regulator
-
3215628-99E00-000 • Screw (L:15)• Screw (L:15)
-
3315627-93J00-000 • Screw (NLA)• Screw (NLA)
-
3409320-12072-000 CushionCushion
-
3515675-93J00-000 Cooler Bracket BoltCooler Bracket Bolt
-
3609343-75001-600 Hose (7.5x13.5x600)
L:600->50Hose (7.5x13.5x600)
L:600->50 -
3709401-11414-000 ClipClip
-
3815636-98J20-000 Fuel Hose (L)
Low PressureFuel Hose (L)
Low Pressure -
3915686-93J00-000 Fuel Hose ClipFuel Hose Clip
-
4015685-93J00-000 Fuel Hose ClipFuel Hose Clip
-
4115672-93J00-000 Fuel Cooler Bracket (NLA)Fuel Cooler Bracket (NLA)
-
4201500-06167-000 BoltBolt
-
4315635-93J20-000 Fuel Hose (H)
High PressureFuel Hose (H)
High Pressure -
4415632-93J20-000 Fuel Hose (H)
High PressureFuel Hose (H)
High Pressure -
4515673-98J00-000 Fuel Filter BracketFuel Filter Bracket
-
4601550-06257-000 BoltBolt
-
4715643-93J00-000 Fuel Filter (L)
Low PressureFuel Filter (L)
Low Pressure -
4809343-75001-600 Hose (7.5x13.5x600)
L:600->65Hose (7.5x13.5x600)
L:600->65 -
4915634-93J20-000 Fuel Hose (H)
High PressureFuel Hose (H)
High Pressure -
5001570-06357-000 BoltBolt
-
5115674-93J00-000 Check Valve BracketCheck Valve Bracket
-
5215645-93J00-000 Check ValveCheck Valve
-
5315637-93J20-000 Fuel Hose (L)
Low pressureFuel Hose (L)
Low pressure -
5415629-99E10-000 Drain ScrewDrain Screw
-
5515683-87J00-000 Drain Hose (L:120)Drain Hose (L:120)
-
5602112-0406B-000 Screw (4x6)Screw (4x6)
-
5709401-08412-000 ClipClip
-
5818498-87JC0-000 Protector (L:450)Protector (L:450)
-
5918498-87JC0-000 Protector (L:450)
L:450->300Protector (L:450)
L:450->300 -
6009408-00105-000 ClampClamp
-
6109160-06084-000 Washer (6.5x18x1.6)Washer (6.5x18x1.6)
-
6209169-06062-000 Washer (6.3x17x1.6)Washer (6.3x17x1.6)
-
6301500-06257-000 BoltBolt
-
6415671-93J00-000 Vapor Separator Bracket (NLA)Vapor Separator Bracket (NLA)
-
6501550-06357-000 Bolt (6x35)Bolt (6x35)
-
6609169-08042-000 WasherWasher
-
6701550-08407-000 Bolt (8x40)Bolt (8x40)
-
6818117-52G10-000 Evap Purge Valve AssyEvap Purge Valve Assy
-
6918417-93J00-000 Purge Valve BracketPurge Valve Bracket
-
7001550-06127-000 Bolt (6x12)Bolt (6x12)
-
7108316-10067-000 NutNut
-
7244420-44AR0-000 Hose (5x8.2x600)
VST to Valve
L:600->220Hose (5x8.2x600)
VST to Valve
L:600->220 -
7309352-50005-00B Hose (5x8.2x2000)
Valve to Silencer
L:2000->810Hose (5x8.2x2000)
Valve to Silencer
L:2000->810
