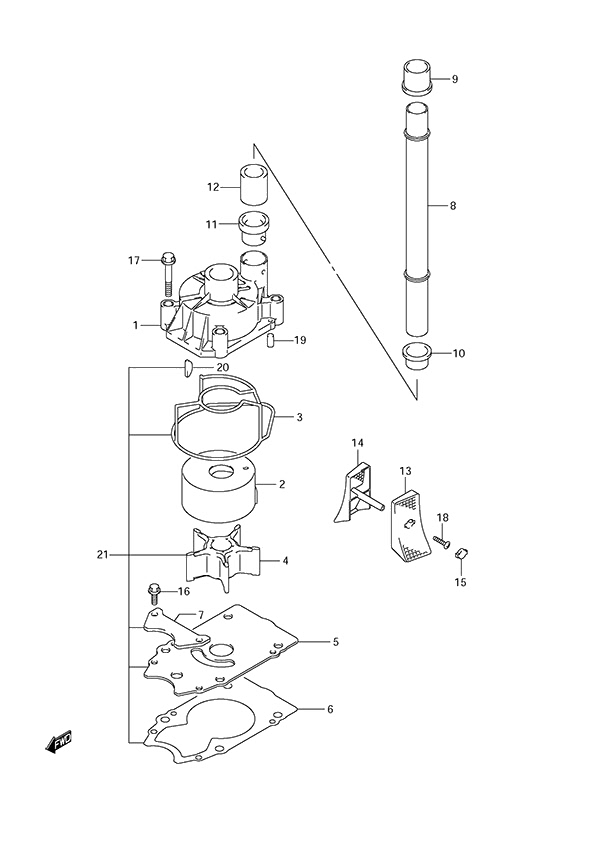

Fig. 11 - Water Pump для Suzuki DF 300 - 2010 года выпуска
-
№АртикулНазвание
-
117410-93J01-000 Water Pump CaseWater Pump Case
-
217413-93J02-000 Water Pump Case SleeveWater Pump Case Sleeve
-
317416-93J00-000 Replaced by 17416-93J01Replaced by 17416-93J01
-
417461-93J00-000 Water Pump ImpellerWater Pump Impeller
-
517471-98J01-000 Water Pump PlateWater Pump Plate
-
617472-98J00-000 Water Pump Plate GasketWater Pump Plate Gasket
-
717473-98J00-000 Water Pump Plate No. 2Water Pump Plate No. 2
-
8-117561-93J03-000 Water Tube (X)Water Tube (X)
-
8-217561-93J13-000 Water Tube (XX)Water Tube (XX)
-
917562-93J01-000 Upper Water Tube BushingUpper Water Tube Bushing
-
1017563-93J01-000 Lower Water Tube BushingLower Water Tube Bushing
-
1117564-93J01-000 Water Pump Case BushingWater Pump Case Bushing
-
1217612-93J00-000 Water Tube SpacerWater Tube Spacer
-
1317631-98J00-000 Port Side Water FilterPort Side Water Filter
-
1417632-98J00-000 Starboard Side Water FilterStarboard Side Water Filter
-
1517633-98J00-000 Water Filter CoverWater Filter Cover
-
1629116-93J00-000 Bolt (6x20)Bolt (6x20)
-
1709116-08131-000 Bolt (8x45)Bolt (8x45)
-
1809132-04034-000 Screw (4x18)Screw (4x18)
-
1909202-06031-000 Knock Pin (6x12)Knock Pin (6x12)
-
2009420-05009-000 Water Pump KeyWater Pump Key
-
2117400-98J03-000 Water Pump Repair Kit
OptionalWater Pump Repair Kit
Optional
