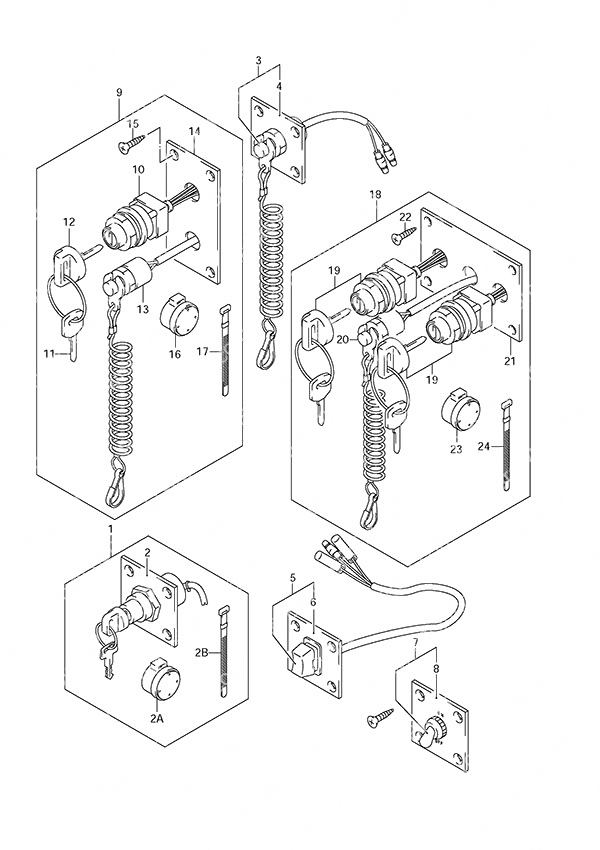

Fig. 61 - Opt: Switch для Suzuki DF 50 - 2010 года выпуска
-
№АртикулНазвание
-
137100-96J01-000 Ignition Switch Panel AssemblyIgnition Switch Panel Assembly
-
237139-99E00-000 • Ignition Switch Panel• Ignition Switch Panel
-
2A38500-93J90-000 • Warning Buzzer• Warning Buzzer
-
2B09407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
337803-93J05-000 Replaced by 37803-93J06Replaced by 37803-93J06
-
437825-99E00-000 • Emergency Switch Panel• Emergency Switch Panel
-
537805-93J00-000 PTT Switch AssemblyPTT Switch Assembly
-
637855-99E00-000 • PTT Switch Panel• PTT Switch Panel
-
737210-93J00-000 Lighting Switch Set (NLA)Lighting Switch Set (NLA)
-
837212-93J00-000 • Lighting Switch Panel (NLA)• Lighting Switch Panel (NLA)
-
937100-96J27-000 Ignition & Stop Switch Panel AssemblyIgnition & Stop Switch Panel Assembly
-
1037110-93J02-000 • Ignition Switch Assembly• Ignition Switch Assembly
-
11-137141-99E00-000 •• (931) Ignition Key•• (931) Ignition Key
-
11-237141-99E10-000 •• (932) Ignition Key•• (932) Ignition Key
-
11-337141-99E20-000 •• (933) Ignition Key•• (933) Ignition Key
-
11-437141-99E30-000 •• (934) Ignition Key•• (934) Ignition Key
-
11-537141-99E40-000 •• (935) Ignition Key•• (935) Ignition Key
-
11-637141-99E50-000 •• (936) Ignition Key•• (936) Ignition Key
-
11-737141-99E60-000 •• (937) Ignition Key•• (937) Ignition Key
-
11-837141-99E70-000 •• (938) Ignition Key•• (938) Ignition Key
-
11-937141-99E80-000 •• (939) Ignition Key•• (939) Ignition Key
-
11-1037141-99E90-000 •• (940) Ignition Key•• (940) Ignition Key
-
11-1137141-99EA0-000 •• (941) Ignition Key•• (941) Ignition Key
-
11-1237141-99EB0-000 •• (942) Ignition Key•• (942) Ignition Key
-
1237143-99E01-000 •• Key Cap•• Key Cap
-
1337820-93J05-000 • Emergency Stop Switch Assembly• Emergency Stop Switch Assembly
-
1437139-99E20-000 • Ignition Switch Panel• Ignition Switch Panel
-
1503121-0516A-000 • Screw• Screw
-
1638500-93J90-000 • Warning Buzzer• Warning Buzzer
-
1709407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
1837100-96J17-000 Dual Engine Switch Panel AssemblyDual Engine Switch Panel Assembly
-
1937110-93J02-000 • Ignition Switch Assembly• Ignition Switch Assembly
-
2037820-93J94-000 • Emergency Stop Switch Assembly• Emergency Stop Switch Assembly
-
2137139-99E10-000 • Ignition Switch Panel• Ignition Switch Panel
-
2203121-0516A-000 • Screw• Screw
-
2338500-93J90-000 • Warning Buzzer• Warning Buzzer
-
2409407-14403-000 • Clamp (L:125)• Clamp (L:125)
