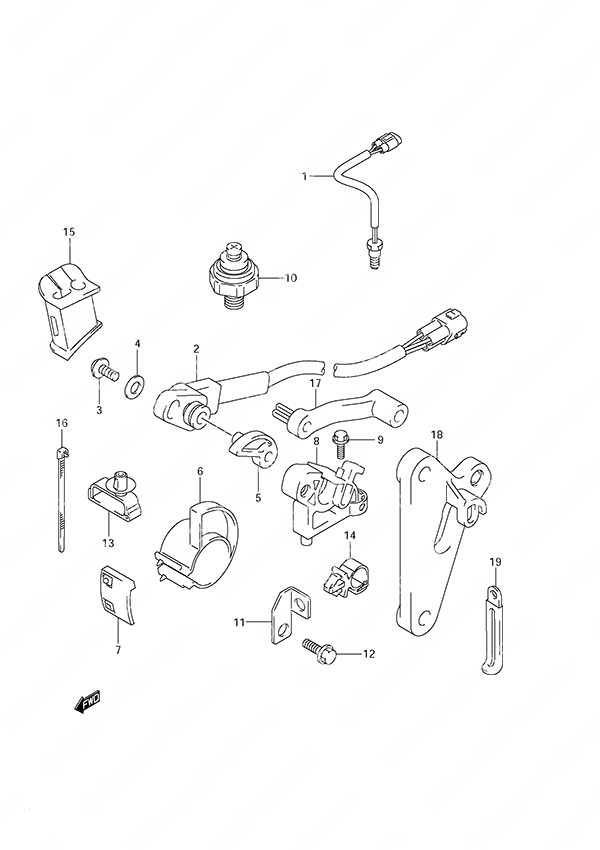

Fig. 23 - Sensor для Suzuki DF 40A - 2011 года выпуска
-
№АртикулНазвание
-
134830-87J20-000 Temp Sensor Assy
CylinderTemp Sensor Assy
Cylinder -
234840-98J03-000 Trim Sensor AssemblyTrim Sensor Assembly
-
309136-05041-000 Screw (5x20)Screw (5x20)
-
409160-05029-000 Washer (5.5x10x0.8)Washer (5.5x10x0.8)
-
901550-06207-000 Bolt (6x20)Bolt (6x20)
-
1037820-99E02-000 Oil Pressure SwitchOil Pressure Switch
-
1309403-07340-000 ClampClamp
-
1536656-88L00-000 PTT Cable GrommetPTT Cable Grommet
-
1609407-14407-000 Clamp (L:145)Clamp (L:145)
-
1734841-88L00-000 Trim Sensor LeverTrim Sensor Lever
-
1834845-88L02-000 Trim Sender BracketTrim Sender Bracket
-
1929404-93J11-000 Clamp (L:65)Clamp (L:65)
