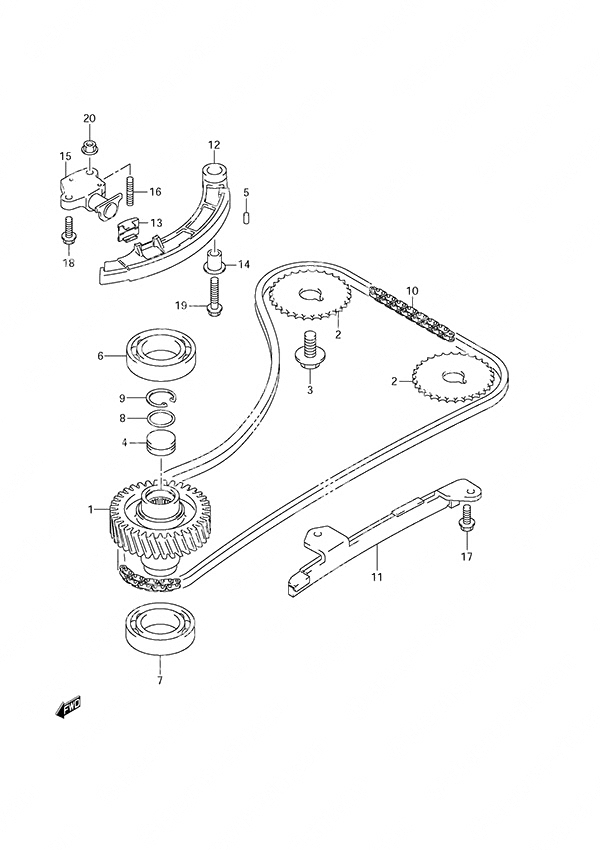

Fig. 5 - Timing Chain для Suzuki DF 115 - 2012 года выпуска
-
№АртикулНазвание
-
112732-90J00-000 Driven GearDriven Gear
-
212741-90J01-000 Camshaft Timing SprocketCamshaft Timing Sprocket
-
309103-12049-000 Bolt (12x25)Bolt (12x25)
-
412733-90J00-000 Driven Gear PlugDriven Gear Plug
-
504221-05109-000 PinPin
-
609262-35068-000 Bearing (35x62x14)
UpperBearing (35x62x14)
Upper -
709262-35069-000 Bearing (35x62x16)
LowerBearing (35x62x16)
Lower -
809280-22022-000 O-RingO-Ring
-
908331-4126A-000 CirclipCirclip
-
1012761-90J00-000 Timing ChainTiming Chain
-
1112771-90J00-000 Timing Chain GuideTiming Chain Guide
-
1212810-90J00-000 Timing Chain TensionerTiming Chain Tensioner
-
1312813-73G00-000 • Timing Chain Tensioner Pad• Timing Chain Tensioner Pad
-
1412812-90J00-000 Timing Chain Tensioner SpacerTiming Chain Tensioner Spacer
-
1512831-90J02-000 Tensioner Adjuster AssemblyTensioner Adjuster Assembly
-
1601421-0616A-000 Stud BoltStud Bolt
-
1701550-0616A-000 BoltBolt
-
1801550-0620A-000 BoltBolt
-
1901550-0835A-000 BoltBolt
-
2008316-1006A-000 NutNut
