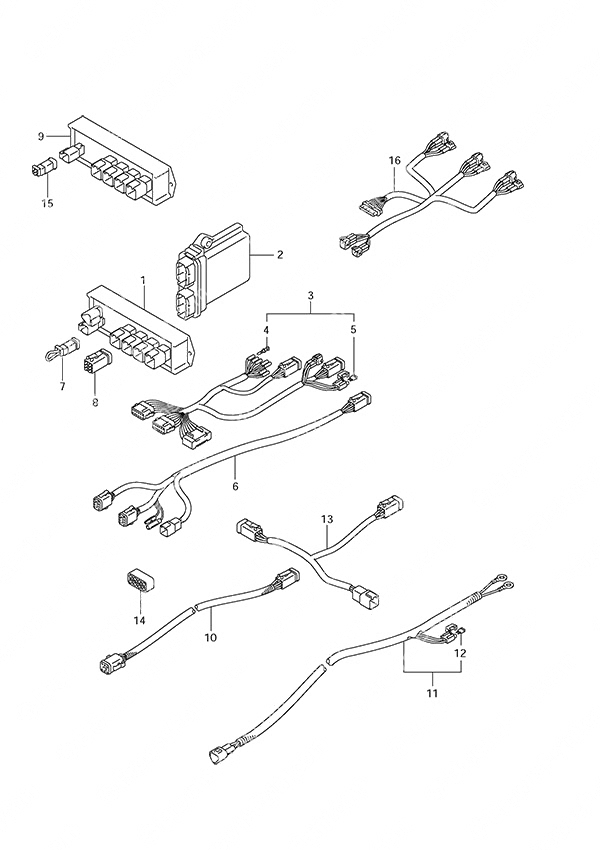

Fig. 49 - Opt: Harness для Suzuki DF 140 - 2012 года выпуска
-
№АртикулНазвание
-
134921-98J00-000 Active Hub Unit (NLA)Active Hub Unit (NLA)
-
234922-98J02-000 Interface Unit (NLA)Interface Unit (NLA)
-
336661-98J00-000 Interface Unit Harness Assy (NLA)Interface Unit Harness Assy (NLA)
-
436615-96300-000 • Resin Terminal• Resin Terminal
-
509481-05501-000 • 5 Amp Fuse• 5 Amp Fuse
-
636664-98J00-000 3 in Gauge Harness Assembly (NLA)3 in Gauge Harness Assembly (NLA)
-
736665-98J00-000 Jumper Wire (NLA)Jumper Wire (NLA)
-
836666-98J10-000 6 Pin Connector Cap (NLA)6 Pin Connector Cap (NLA)
-
934921-98J10-000 Passive Hub Unit (NLA)Passive Hub Unit (NLA)
-
10-136662-98J00-000 Hub Harness Assembly (NLA)
L:1000Hub Harness Assembly (NLA)
L:1000 -
10-236662-98J10-000 Hub Harness Assembly (NLA)
L:6500Hub Harness Assembly (NLA)
L:6500 -
11-136663-98J00-000 Active Hub Power Harness Assy (NLA)
L:2500Active Hub Power Harness Assy (NLA)
L:2500 -
11-236663-98J10-000 Active Hub Power Harness Assy
L:6000Active Hub Power Harness Assy
L:6000 -
1209481-05501-000 • 5 Amp Fuse• 5 Amp Fuse
-
1336664-98J10-000 2 in Gauge Harness Assembly (NLA)2 in Gauge Harness Assembly (NLA)
-
1436666-98J00-000 8 Pin Connector Cap (NLA)8 Pin Connector Cap (NLA)
-
1536667-98J00-000 2 Pin Connector Cap (NLA)2 Pin Connector Cap (NLA)
-
1636661-93J00-000 Interface Module Adapter (NLA)Interface Module Adapter (NLA)
