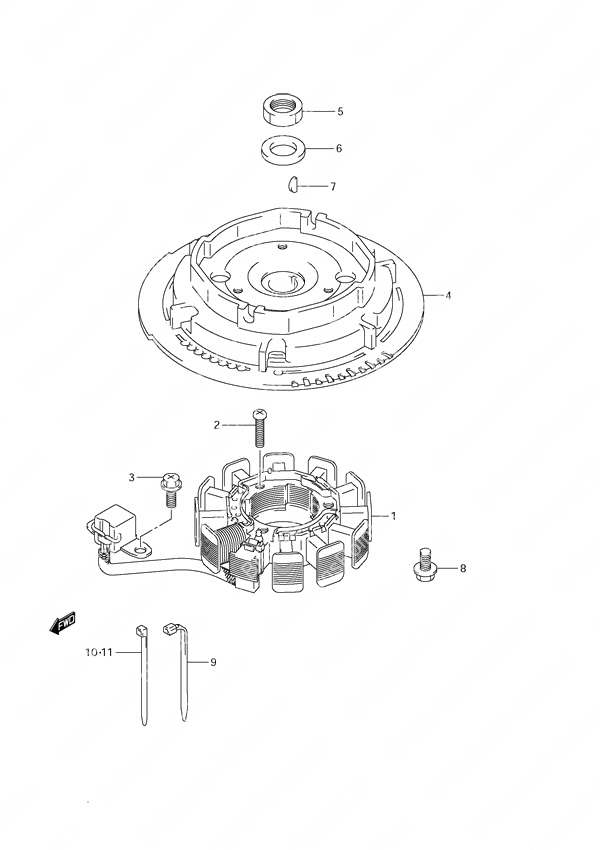

Fig. 34 - Magneto для Suzuki DF 15 - 2012 года выпуска
-
№АртикулНазвание
-
1-132120-94J10-000 Stator & Pulser Coil
w/Electric StarterStator & Pulser Coil
w/Electric Starter -
1-232120-94J00-000 Stator & Pulser Coil
w/Manual StarterStator & Pulser Coil
w/Manual Starter -
209125-06035-000 Screw (6x25)Screw (6x25)
-
302162-05127-000 Screw (NLA)Screw (NLA)
-
4-132102-94J10-000 Flywheel
w/Electric StarterFlywheel
w/Electric Starter -
4-232102-94J00-000 Flywheel (NLA)
w/Manual StarterFlywheel (NLA)
w/Manual Starter -
509140-14008-000 Nut 14mmNut 14mm
-
659171-94J00-000 Flywheel WasherFlywheel Washer
-
708341-31039-000 Woodruff KeyWoodruff Key
-
801550-06127-000 Bolt (6x12)Bolt (6x12)
-
909407-11401-000 Clamp (L:95)Clamp (L:95)
-
1009407-10404-000 Clamp (L:100)Clamp (L:100)
-
1109407-10404-000 Clamp (L:100)Clamp (L:100)
