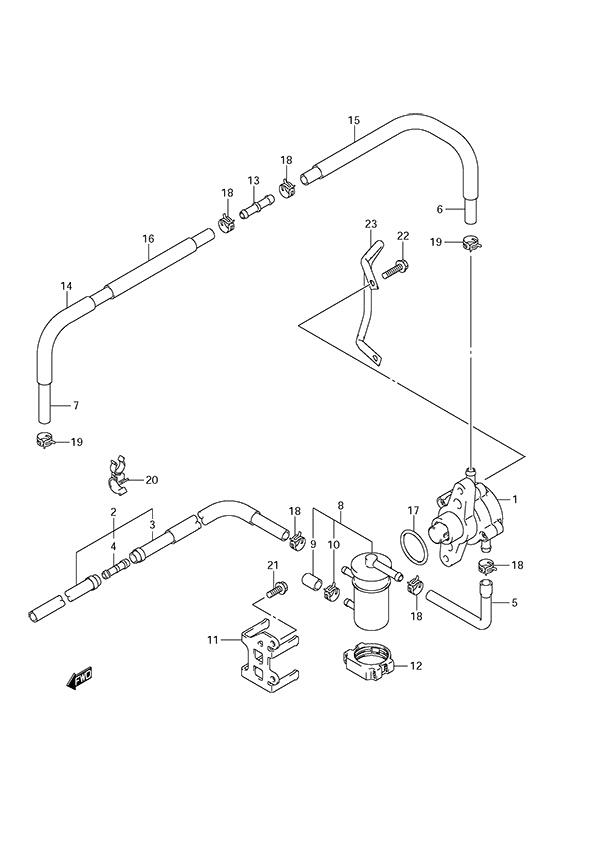

Fig. 29 - Fuel Pump для Suzuki DF 175 - 2012 года выпуска
-
№АртикулНазвание
-
115100-96J01-000 Fuel Pump AssemblyFuel Pump Assembly
-
215190-96J24-000 Fuel Hose
Connector to FilterFuel Hose
Connector to Filter -
318498-99E11-000 • Hose Protector (L:610)• Hose Protector (L:610)
-
409367-10001-000 • Hose Joint• Hose Joint
-
515192-96J11-000 Fuel Hose
Filter to PumpFuel Hose
Filter to Pump -
615193-96J11-000 Fuel Hose
Pump to 2 WayFuel Hose
Pump to 2 Way -
715194-96J11-000 Fuel Hose
2 Way to SeparatorFuel Hose
2 Way to Separator -
815410-96J00-000 Fuel FilterFuel Filter
-
915419-87J00-000 • Fuel Filter Cap• Fuel Filter Cap
-
1009401-11423-000 • Clip• Clip
-
1115421-96J00-000 Fuel Filter BracketFuel Filter Bracket
-
1215422-96J00-000 Fuel Filter ClampFuel Filter Clamp
-
1315831-96J00-000 Fuel Hose UnionFuel Hose Union
-
1418498-99E11-000 Hose Protector (L:610)
L:610->230Hose Protector (L:610)
L:610->230 -
1518498-96J21-000 Hose Protector (13.5x16.5x370)Hose Protector (13.5x16.5x370)
-
1618498-99E11-000 Hose Protector (L:610)
L:610->280Hose Protector (L:610)
L:610->280 -
1709280-33004-000 O-RingO-Ring
-
1809401-11423-000 ClipClip
-
1909401-13424-000 ClipClip
-
2009408-00105-000 ClampClamp
-
2101550-06167-000 Bolt (6x16)Bolt (6x16)
-
2209103-06211-000 Bolt (6x25)Bolt (6x25)
-
2313144-96J00-000 Fuel Pump Guard (NLA)Fuel Pump Guard (NLA)
