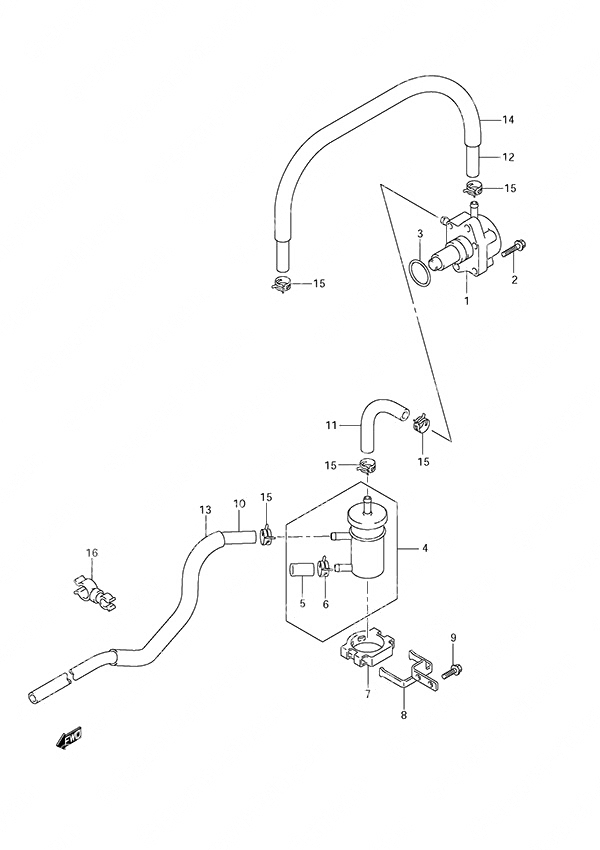

Fig. 14 - Fuel Pump для Suzuki DF 90A - 2012 года выпуска
-
№АртикулНазвание
-
115100-90J11-000 Fuel Pump AssemblyFuel Pump Assembly
-
201550-06257-000 BoltBolt
-
309280-26005-000 O-RingO-Ring
-
415410-87L00-000 Fuel FilterFuel Filter
-
515419-87J00-000 • Fuel Filter Cap• Fuel Filter Cap
-
609401-11423-000 • Clip• Clip
-
715422-96J00-000 Fuel Filter ClampFuel Filter Clamp
-
815421-87L00-000 Fuel Filter BracketFuel Filter Bracket
-
901550-06167-000 Bolt (6x16)Bolt (6x16)
-
1015190-90J30-000 Fuel Hose
Joint to FilterFuel Hose
Joint to Filter -
1115192-87L11-000 Fuel Hose
Filter to PumpFuel Hose
Filter to Pump -
1209343-70503-600 Fuel Hose (7x12x600)Fuel Hose (7x12x600)
-
1318498-99E11-000 Hose Protector (L:610)
L:610->280Hose Protector (L:610)
L:610->280 -
1418498-99E11-000 Hose Protector (L:610)
L:610->450Hose Protector (L:610)
L:610->450 -
1509401-11423-000 ClipClip
-
1609408-00233-000 Clamp (NLA)Clamp (NLA)
