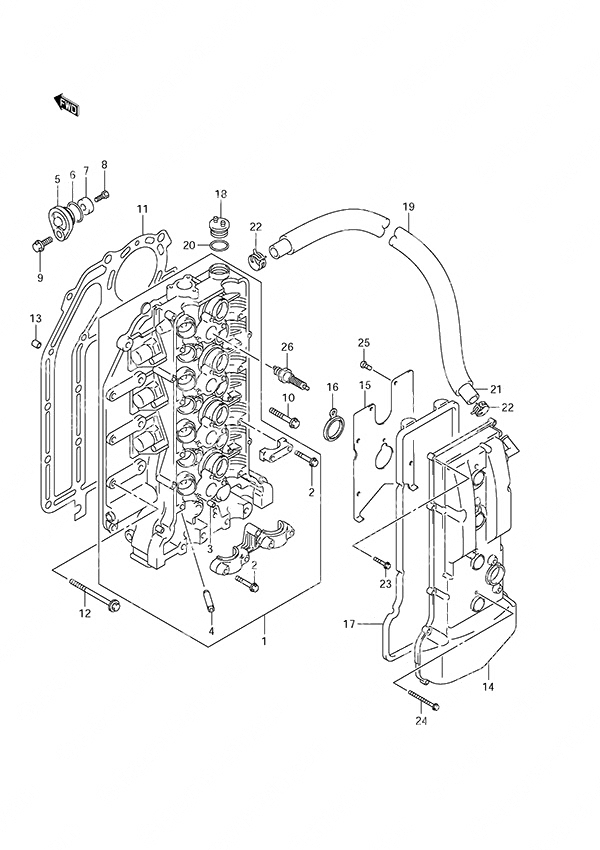

Fig. 1 - Cylinder Head для Suzuki DF 115A - 2013 года выпуска
-
№АртикулНазвание
-
111100-90J11-000 Cylinder HeadCylinder Head
-
209103-06266-000 • Bolt (6x40)• Bolt (6x40)
-
309206-08001-000 • Knock Pin (8x11)• Knock Pin (8x11)
-
411115-85FA1-001 Valve Guide (OS:0.30)
OptionalValve Guide (OS:0.30)
Optional -
511261-93J00-000 Protection Anode CoverProtection Anode Cover
-
609280-22019-000 O-RingO-Ring
-
755321-87J01-000 Aluminum AnodeAluminum Anode
-
809103-06281-000 Bolt (6x14)Bolt (6x14)
-
901550-08207-000 Bolt (8x20)Bolt (8x20)
-
1011117-89J00-000 BoltBolt
-
1111141-92J01-000 Cylinder Head GasketCylinder Head Gasket
-
1209116-08125-000 Bolt (8x50)Bolt (8x50)
-
1304211-13189-000 Dowel PinDowel Pin
-
1411170-90J12-000 Cylinder Head CoverCylinder Head Cover
-
1511173-90J00-000 Breather PlateBreather Plate
-
1611179-90J00-000 Spark Plug Hole GasketSpark Plug Hole Gasket
-
1711189-90J00-000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
1811382-99E00-000 Oil Filler CapOil Filler Cap
-
1918498-90J20-000 Breather Hose ProtectorBreather Hose Protector
-
2009280-26006-000 O-RingO-Ring
-
2109355-13207-00B Breather Hose
L:2000->660Breather Hose
L:2000->660 -
2209401-20409-000 ClipClip
-
2301547-06257-000 Bolt (6x25)Bolt (6x25)
-
2401547-06557-000 Bolt (6x55)Bolt (6x55)
-
2502112-0612A-000 Screw (6x12)Screw (6x12)
-
2609482-00427-000 NGK BKR6E Spark PlugNGK BKR6E Spark Plug
