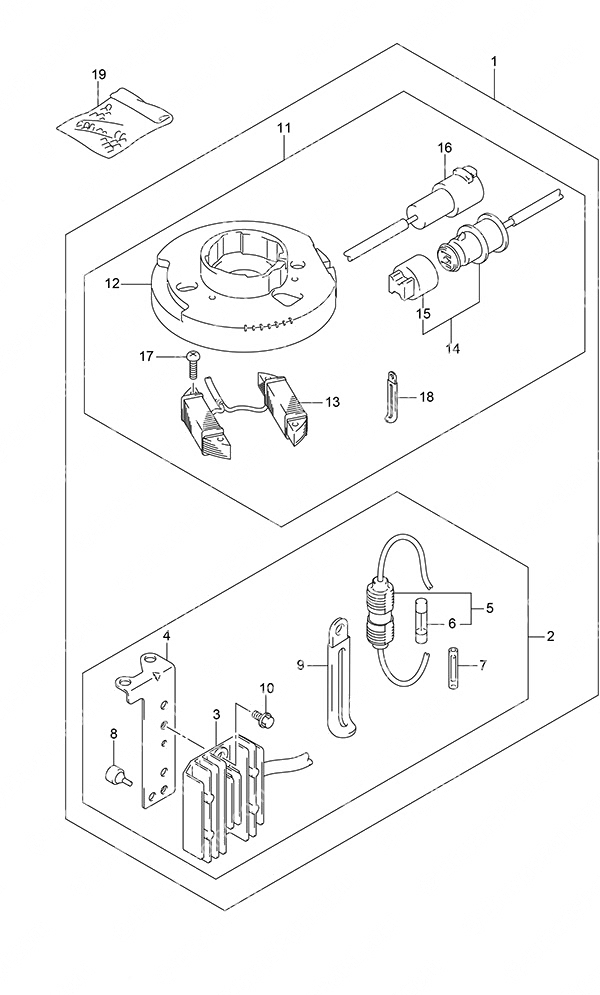

Fig. 29 - Opt: Electrical для Suzuki DF 4 - 2013 года выпуска
-
№АртикулНазвание
-
132000-91J12-000 Battery Charging KitBattery Charging Kit
-
232801-91J00-000 • Rectifier Set• Rectifier Set
-
332800-94620-000 •• Rectifier & Regulator•• Rectifier & Regulator
-
432890-91J00-000 •• Rectifier Bracket (NLA)•• Rectifier Bracket (NLA)
-
536740-95253-000 •• Fuse Case Assembly•• Fuse Case Assembly
-
609481-20001-000 •• 20 Amp Fuse•• 20 Amp Fuse
-
737132-93700-000 •• Wire Connector•• Wire Connector
-
809321-05019-000 •• Cushion•• Cushion
-
909404-06435-000 •• Clamp (L:135)•• Clamp (L:135)
-
1001550-06127-000 •• Bolt (6x12)•• Bolt (6x12)
-
10A36617-91J10-000 •• Harness Bracket
Not Shown•• Harness Bracket
Not Shown -
1139600-91J12-000 • Receptacle Lighting Set• Receptacle Lighting Set
-
1232102-91J30-000 •• Flywheel•• Flywheel
-
1332120-91J10-000 •• Lighting Coil•• Lighting Coil
-
13A09407-14407-000 •• Clamp (L:145)
Not Shown•• Clamp (L:145)
Not Shown -
13B12625-91J00-000 •• Stator Base
Not Shown•• Stator Base
Not Shown -
13C01550-06167-000 •• Bolt (6x16)
Not Shown•• Bolt (6x16)
Not Shown -
1439601-95D00-000 •• Lighting Receptacle Assembly•• Lighting Receptacle Assembly
-
1536634-93910-000 •• Connector Cap•• Connector Cap
-
1639602-93900-000 •• Lamp Cord Plug Assembly•• Lamp Cord Plug Assembly
-
1702112-06207-000 •• Cross Screw (6x2)•• Cross Screw (6x2)
-
18-109404-06429-000 •• Clamp•• Clamp
-
18-209404-06432-000 •• Clamp (L:65)•• Clamp (L:65)
-
1936990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
