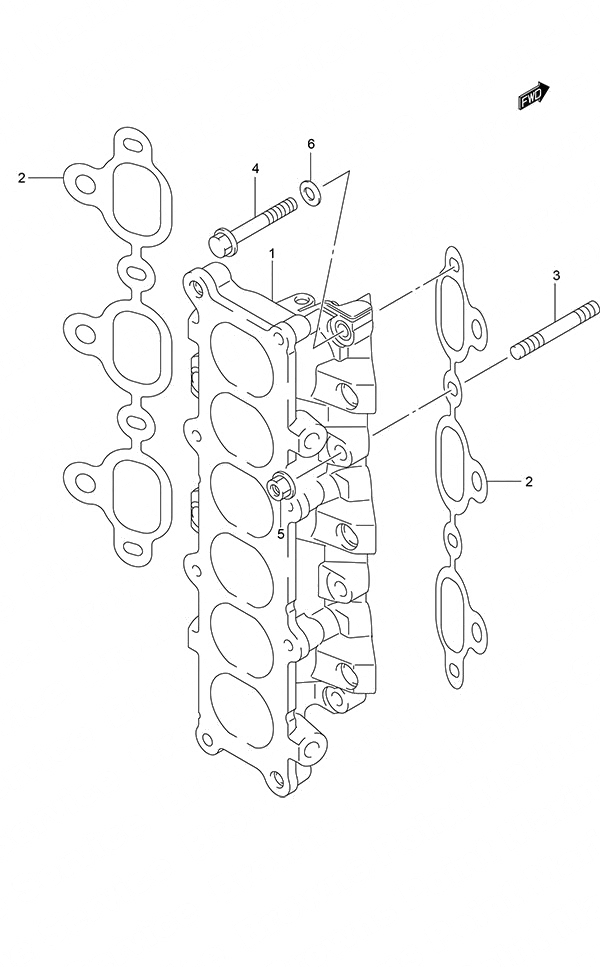

Fig. 7 - Intake Manifold для Suzuki DF 250AP - 2014 года выпуска
-
№АртикулНазвание
-
113110-98J10-000 Intake ManifoldIntake Manifold
-
213119-98J00-000 Intake Manifold GasketIntake Manifold Gasket
-
309108-08282-000 Stud BoltStud Bolt
-
409103-08437-000 Bolt (8x65)Bolt (8x65)
-
509159-08136-000 NutNut
-
609160-08161-000 Washer (8.2x23x3.2) (NLA)Washer (8.2x23x3.2) (NLA)
