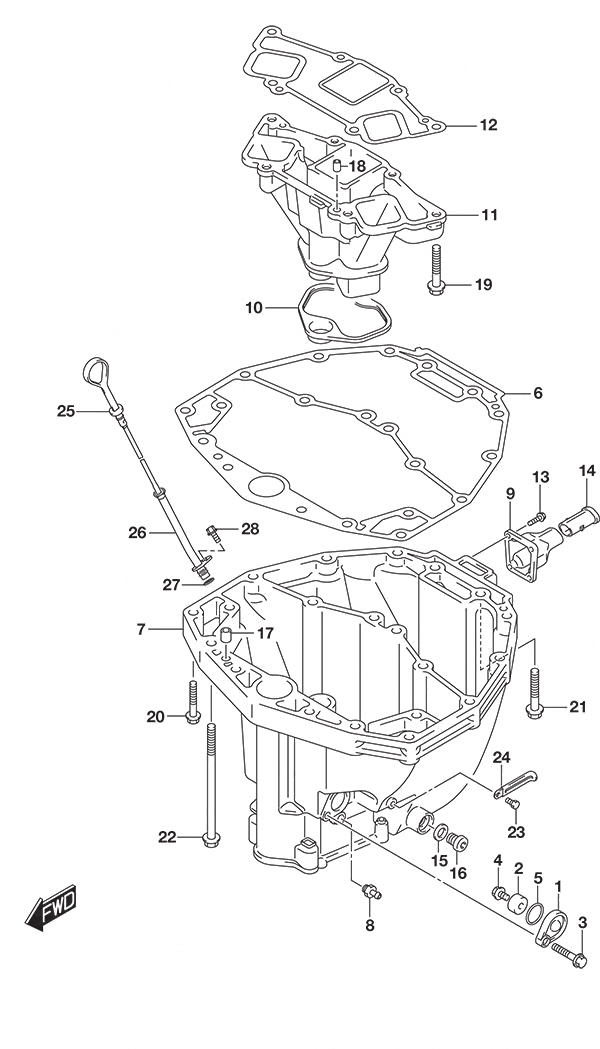

Fig. 180 - Oil Pan для Suzuki DF 225 - 2015 года выпуска
-
№АртикулНазвание
-
1-111261-93J10-0EP Protection Anode Cover
BlackProtection Anode Cover
Black -
1-211261-93J10-Y5S Protection Anode Cover
WhiteProtection Anode Cover
White -
2-155321-87J01-000 Aluminum AnodeAluminum Anode
-
2-255321-87J11-000 Magnesium Anode
Opt: Fresh Water Use OnlyMagnesium Anode
Opt: Fresh Water Use Only -
329103-93J30-000 Bolt (8x25)Bolt (8x25)
-
409103-06281-000 Bolt (6x14)Bolt (6x14)
-
509280-22019-000 O-RingO-Ring
-
611489-93J00-000 Oil Pan GasketOil Pan Gasket
-
7-111501-93J03-0EP Oil Pan
BlackOil Pan
Black -
7-211501-93J03-Y5S Oil Pan
WhiteOil Pan
White -
811591-93J11-000 Oil Pan UnionOil Pan Union
-
9-111541-93J00-0EP Exhaust Pipe
BlackExhaust Pipe
Black -
9-211541-93J00-Y5S Exhaust Pipe
WhiteExhaust Pipe
White -
1014154-93J02-000 Exhaust Tube SealExhaust Tube Seal
-
1114211-93J00-000 Exhaust TubeExhaust Tube
-
1214212-93J00-000 Exhaust Tube GasketExhaust Tube Gasket
-
1329116-93J00-000 Bolt (6x20)Bolt (6x20)
-
1411435-93J00-000 Exhaust Release PipeExhaust Release Pipe
-
1509168-12012-000 Oil Drain Plug GasketOil Drain Plug Gasket
-
1609248-12009-000 Oil Drain PlugOil Drain Plug
-
1709202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
1809202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
1901550-1050A-000 BoltBolt
-
2009116-08128-000 Bolt (8x40)Bolt (8x40)
-
2109116-10175-000 Bolt (10x50)Bolt (10x50)
-
2209116-10146-000 Bolt (10x195)Bolt (10x195)
-
2329103-93J00-000 Bolt (6x12)Bolt (6x12)
-
2429404-93J11-000 Clamp (L:65)Clamp (L:65)
-
2516910-93J00-000 Oil Level GaugeOil Level Gauge
-
2616930-93J00-000 Oil Level Gauge GuideOil Level Gauge Guide
-
2709280-09008-000 O-RingO-Ring
-
2801550-06127-000 Bolt (6x12)Bolt (6x12)
