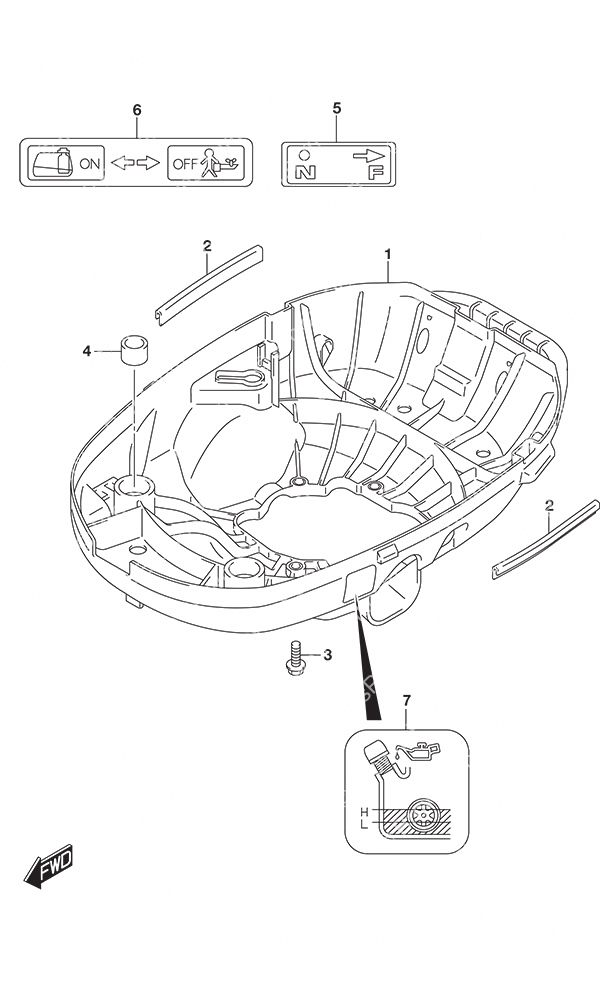

Fig. 412 - Lower Cover для Suzuki DF 2.5 - 2015 года выпуска
-
№АртикулНазвание
-
161110-97J01-YR9 Lower Engine CoverLower Engine Cover
-
261135-97J00-000 Lower Cover Cushion (NLA)Lower Cover Cushion (NLA)
-
309116-06227-000 Bolt (6x20)Bolt (6x20)
-
461151-91J01-000 CushionCushion
-
521131-97J20-000 Clutch Shift MarkClutch Shift Mark
-
661211-97J00-000 Fuel Cock MarkFuel Cock Mark
-
761212-97J20-000 Oil Level MarkOil Level Mark
