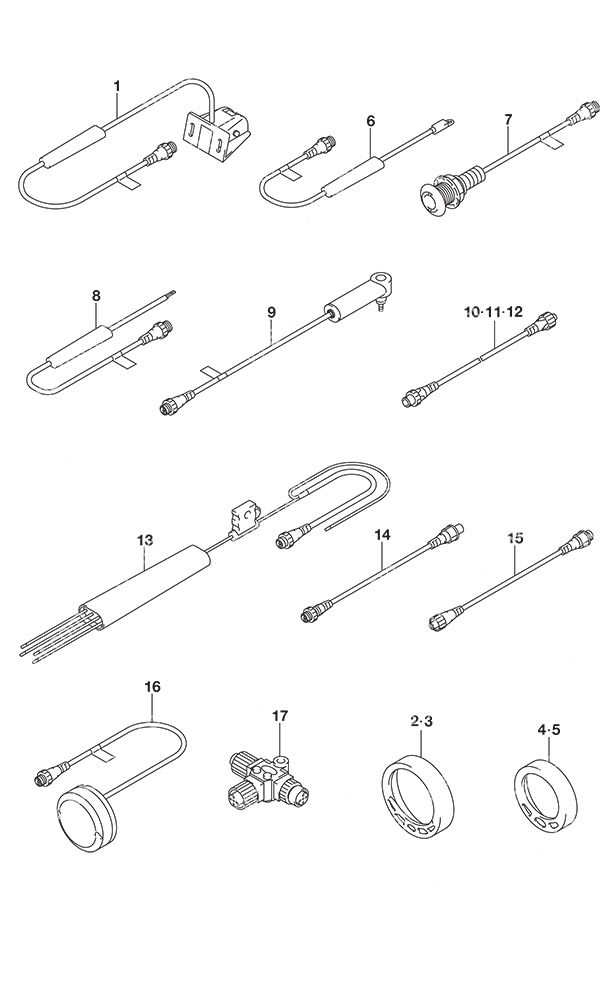

Fig. 588 - Opt: SMIS Gauges для Suzuki DF 90A - 2015 года выпуска
-
№АртикулНазвание
-
1990C0-88117-000 Speed Wheel SensorSpeed Wheel Sensor
-
2990C0-88021-000 Chrome 4 in. BezelChrome 4 in. Bezel
-
3990C0-88023-000 White 4 in. Bezel (NLA)White 4 in. Bezel (NLA)
-
4990C0-88025-000 Chrome 2 in. BezelChrome 2 in. Bezel
-
5990C0-88027-000 White 2 in. BezelWhite 2 in. Bezel
-
6990C0-88118-000 Temperature SensorTemperature Sensor
-
7990C0-88119-000 Temperature Sensor (Thru Hull Type) (NLA)Temperature Sensor (Thru Hull Type) (NLA)
-
8990C0-88217-000 Fluid Level SensorFluid Level Sensor
-
9990C0-88339-000 Pressure SensorPressure Sensor
-
10990C0-88104-000 2' Extension cable2' Extension cable
-
11990C0-88105-000 6' Extension cable6' Extension cable
-
12990C0-88107-000 15' Extension cable15' Extension cable
-
13990C0-88130-000 SMIS Multi Power NodeSMIS Multi Power Node
-
14990C0-88029-000 Blue Device to NMEA T Adaptor Harness (NLA)Blue Device to NMEA T Adaptor Harness (NLA)
-
15990C0-88137-000 NMEA to Blue T Adaptor HarnessNMEA to Blue T Adaptor Harness
-
16990C0-88122-000 GPS Receiver Module w/Heading SensorGPS Receiver Module w/Heading Sensor
-
17990C0-88110-000 T-ConnectorT-Connector
